DDR3 UDIMM w/ECC

Product Specification

Rev. 1.1 Aug. 2011

6

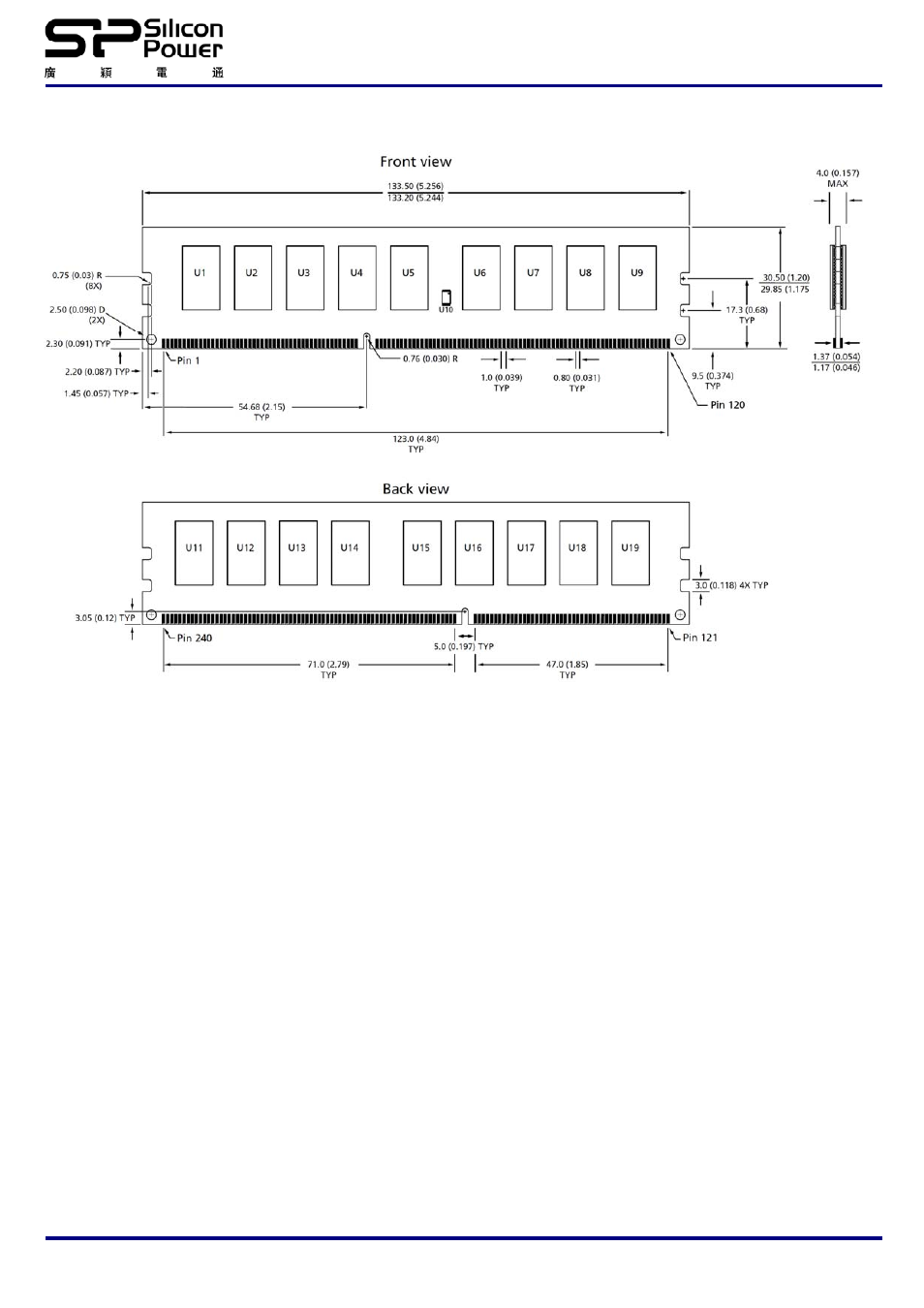

Simplified Mechanical Drawing(x8 2Ranks)

Note:

1. All dimensions are in millimeters (inches); MAX/MIN or typical (TYP) where noted.

Note:

2. The dimensional diagram is for reference only.
