DDR2 RDIMM
Product
Datasheet

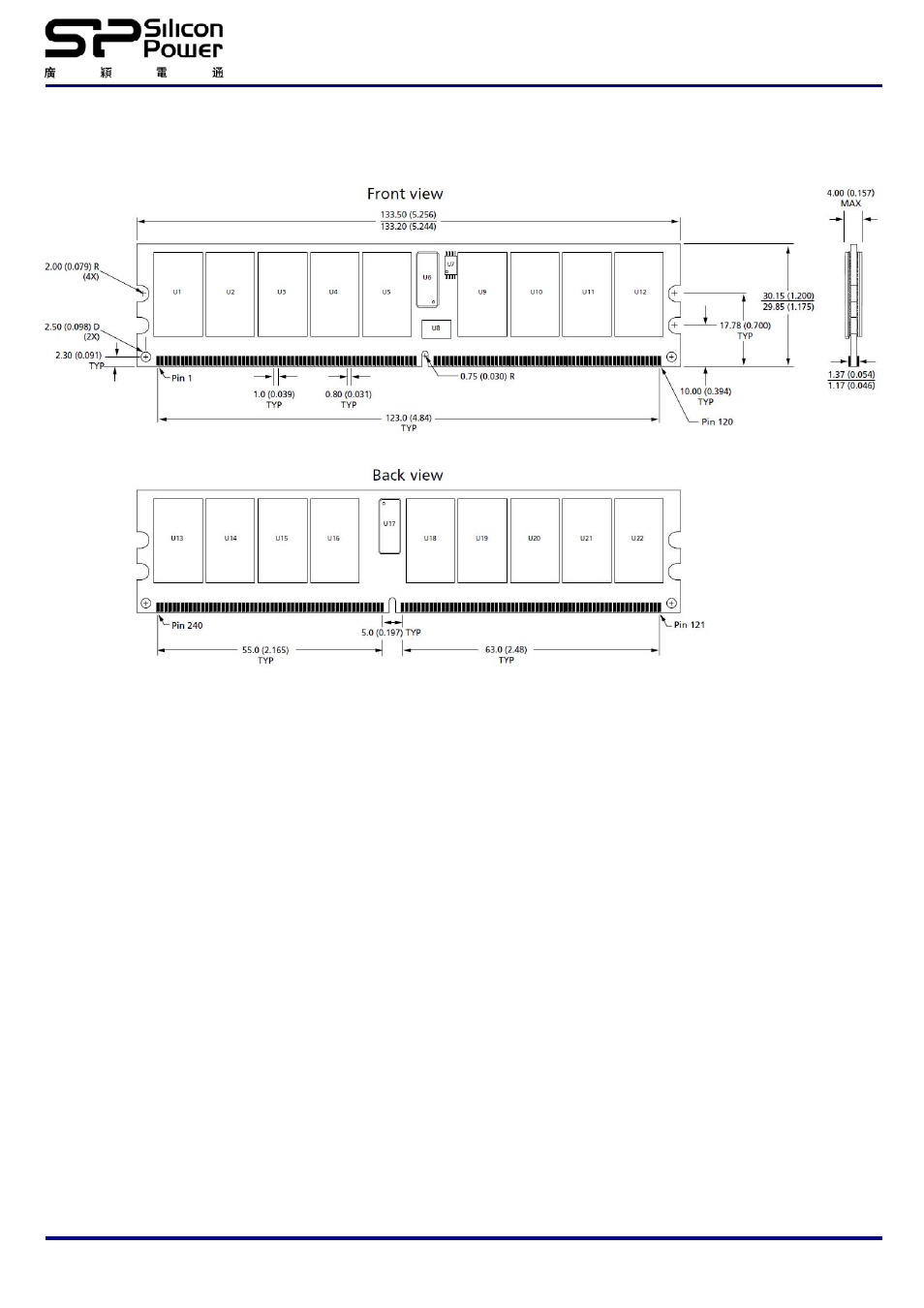

Simplified Mechanical Drawing(x8 2Ranks / x4 1Rank)
x72 DIMM, populated as one physical rank of x8 DDR2 SDRAMs
Note: 1. All dimensions are in millimeters (inches); MAX/MIN or typical (TYP) where noted.
Note: 2. The dimensional diagram is for reference only.
