Strikes__________________

A9300 Series Locks are supplied with
ANSI curved lip strikes having a 1-1/4"
lip length, for use with doors 1-3/4" to
2" thick. Buffed stainless steel finish
only. Strike is handed to match lock and
door. When ordering strikes separately,
specify handing of lock.

s

Strike with indication switch –
For electrical monitoring.

s

Strike box – Wrought steel, zinc
plated, reversible for installation with
flat or curved-lip strike.

s

Special lip lengths – Strikes are
installed 3/8" above the vertical
centerline of the lock. 1-1/4" lip
length is standard. 1-1/2" lip length is
optional for doors from 2-1/8" to
2-1/4" thick.

Handing_________________

Handing of locks should be indicated
when ordering. Guidelines shown on
page C46 will assist in determining the
hand. Door must be addressed from
the key side, the cylinder side or the
secured side.

How To Order____________

Specify:

1) Trim

a. KR, Knob and rose set. (Safety

knob available “SK”, specify side).

b. LT, LeverTrak

®

Guide with handle

and rose.

c. LTE, LeverTrak

®

Guide with handle,

rose and escutcheon.

d. SV – “Stateville” escutcheon plates

with knob and rose sets.

2) Function (see function descriptions)

A9309.

3) Handing (RH, LH, RHR, LHR).

4) Cylinder

a. With cylinder(s) – include keying

information.

b. Less cylinders(s) – must use

a Schlage “L” type cam (see
previous page).

5) Door material/thickness

6) Strike lip length

918 - 1-1/4" lip (s)
914 - 1-1/2" lip (s)

7) Strike Switch(es)

EXAMPLE:
LT-A9309 LH Less cyls. 2"HM x 918-LS

The above is a public entrance lock with
LeverTrak

®

Handle Guide, left hand, for

use with customer-supplied cylinders,
on a 2" hollow metal door, equipped
with strike-mounted switch.

FOLGER ADAM MECHANICAL LOCKS

Key:

Builders Hardware

Door:

Swinging

Security
Level:

Minimum

A9300 MAXI-MORTISE

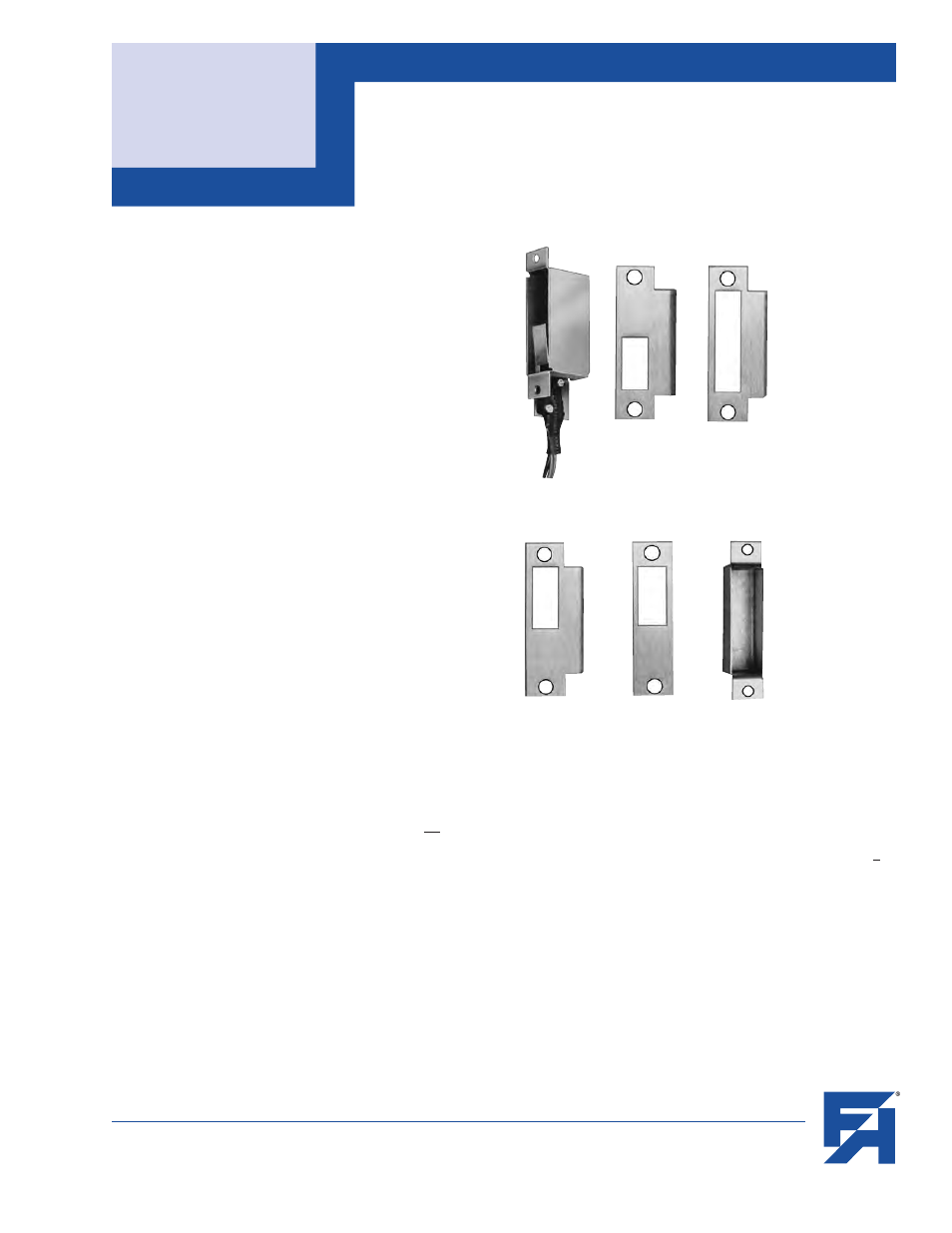

918-D-S

Strike switch

918-D ANSI

Deadbolt strike
RH/LHR shown

918-DNL

Deadbolt strike

without lip

900-BOX
Dust box

918-L ANSI

Latchbolt-only

strike

RH/LHR shown

918-LD ANSI

Latchbolt/

deadbolt strike
RH/LHR shown
