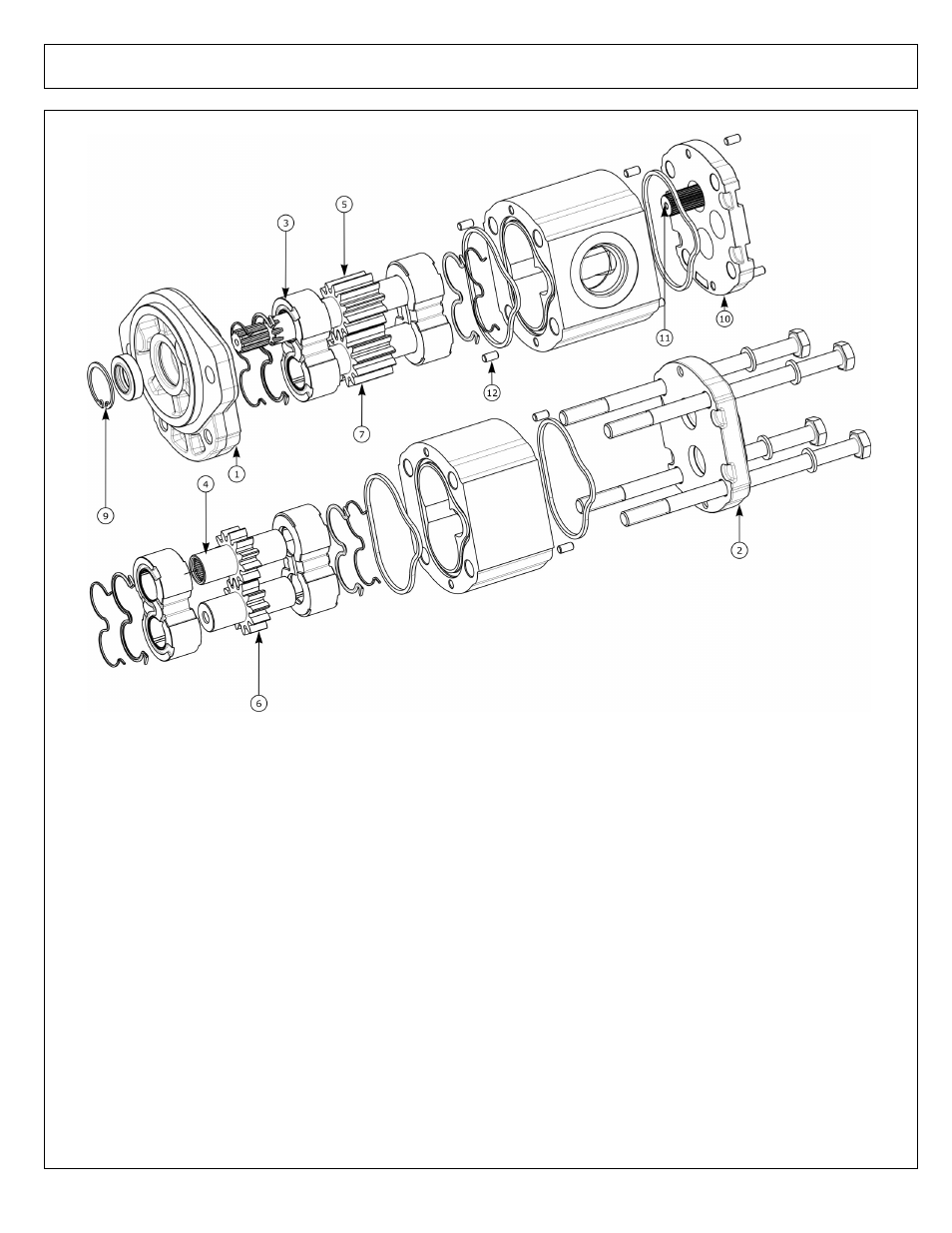

HYD PUMP ASY - PN 02974302B (SN 10771 09-08 & UP)

ITEM

PART NO. QTY.

DESCRIPTION

02974302B

1

PUMP TANDEM GEAR 1.16/.50 CID

1

02985005

1

PUMP FLANGE

2

02985006

1

REAR COVER

3

02988046

4

THRUST PLATE

4

02988047

1

DRIVE GEAR

5

02988048

1

SHAFT, DRIVE GEAR

6

02988049

1

DRIVEN GEAR

7

02988050

1

SHAFT, DRIVEN GEAR

8

02988051

1

KIT, M10 BOLT & WASHER, 4 EA.

9

02985014

1

RETAINING RING

10

02985015

1

MID-PLATE SPACER

11

02985016

1

SPLINED CONNECTING SHAFT

12

02985017

8

PIN, DOWEL

02988051

1

BOLTS AND WASHERS KIT

02985018

1

SEAL KIT

©2011 Alamo Group Inc.

Parts Section -29

Switchblade 5`and 6` Spring-Brk-a-way (11-06) Rev 08-11
