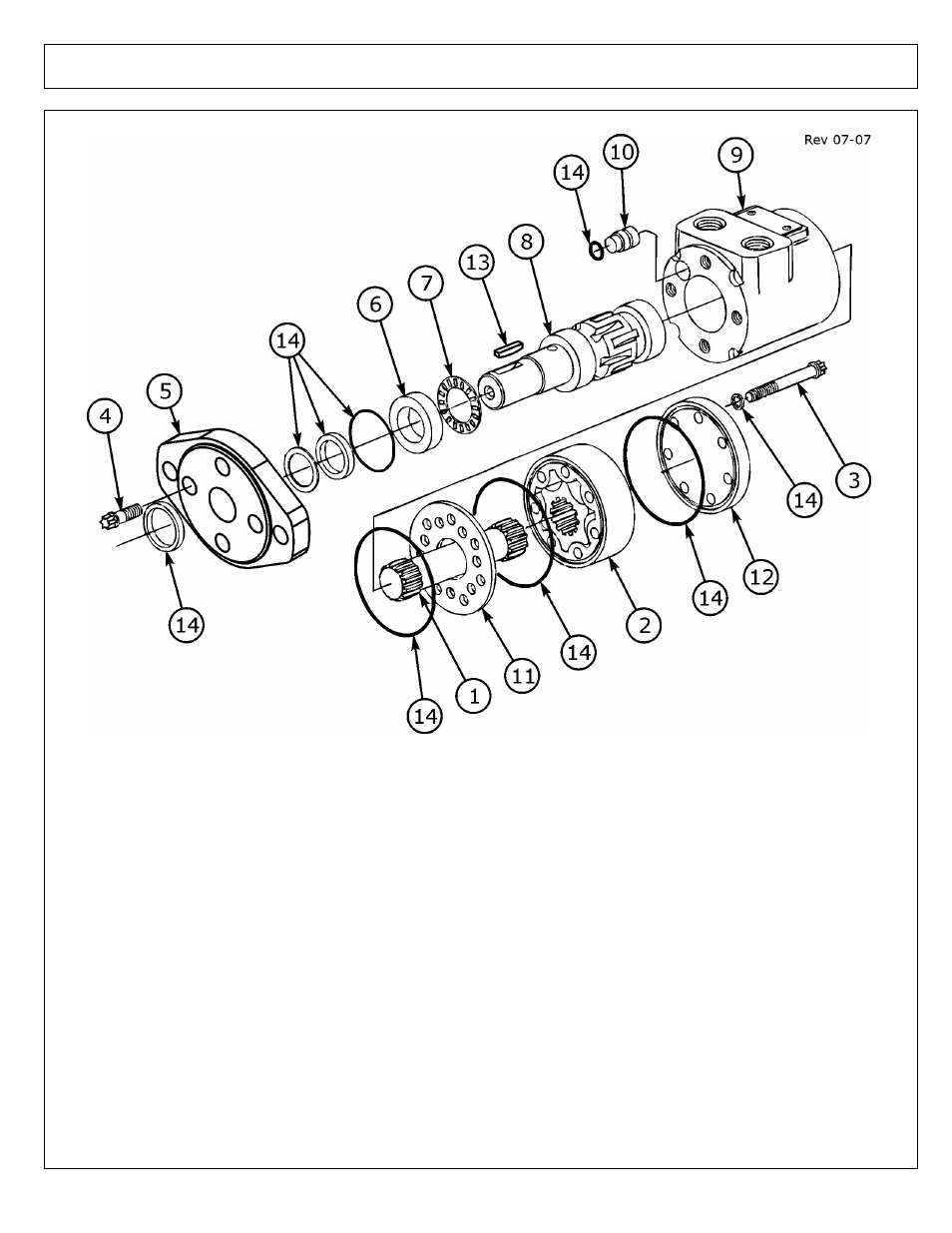

HYD MOTOR ASY - PN 02974301 & PN 02974301A

ITEM

PART NO. QTY.

DESCRIPTION

02974301

1

HORIZONTAL KNIFE DRIVE ASY (W/ 5/16" KEY WAY) SWB6-10672 & DOWN

02974301A

1

HORIZONTAL KNIFE DRIVE ASY (W/ 1/4" KEY WAY) SWB5-10673 & UP

1

02976883

1

INTERNAL DRIVE SHAFT

2

02976884

1

STAR & HOUSING SET

3

02976885

7

HOUSING TIE SCREW

4

02976886

4

FLANGE ATTACHMENT SCREW

5

02976887

1

FLANGE MOUNT

6

02976888

1

THRUST BEARING RACE

7

02976889

1

THRUST BEARING

8

02976890

1

OUTPUT SHAFT, (W/ 5/16" KEY WAY) SWB6-10672 & DOWN

02976890A

1

OUTPUT SHAFT, (W/ 1/4" KEY WAY) SWB5-10673 & UP

9

02976891

1

MOTOR HOUSING

10

02976892

1

PLUG

11

02976893

1

SPACER PLATE

12

02976894

1

END CAP

©2011 Alamo Group Inc.

Parts Section -23

Switchblade 5`and 6` Spring-Brk-a-way (11-06) Rev 08-11
