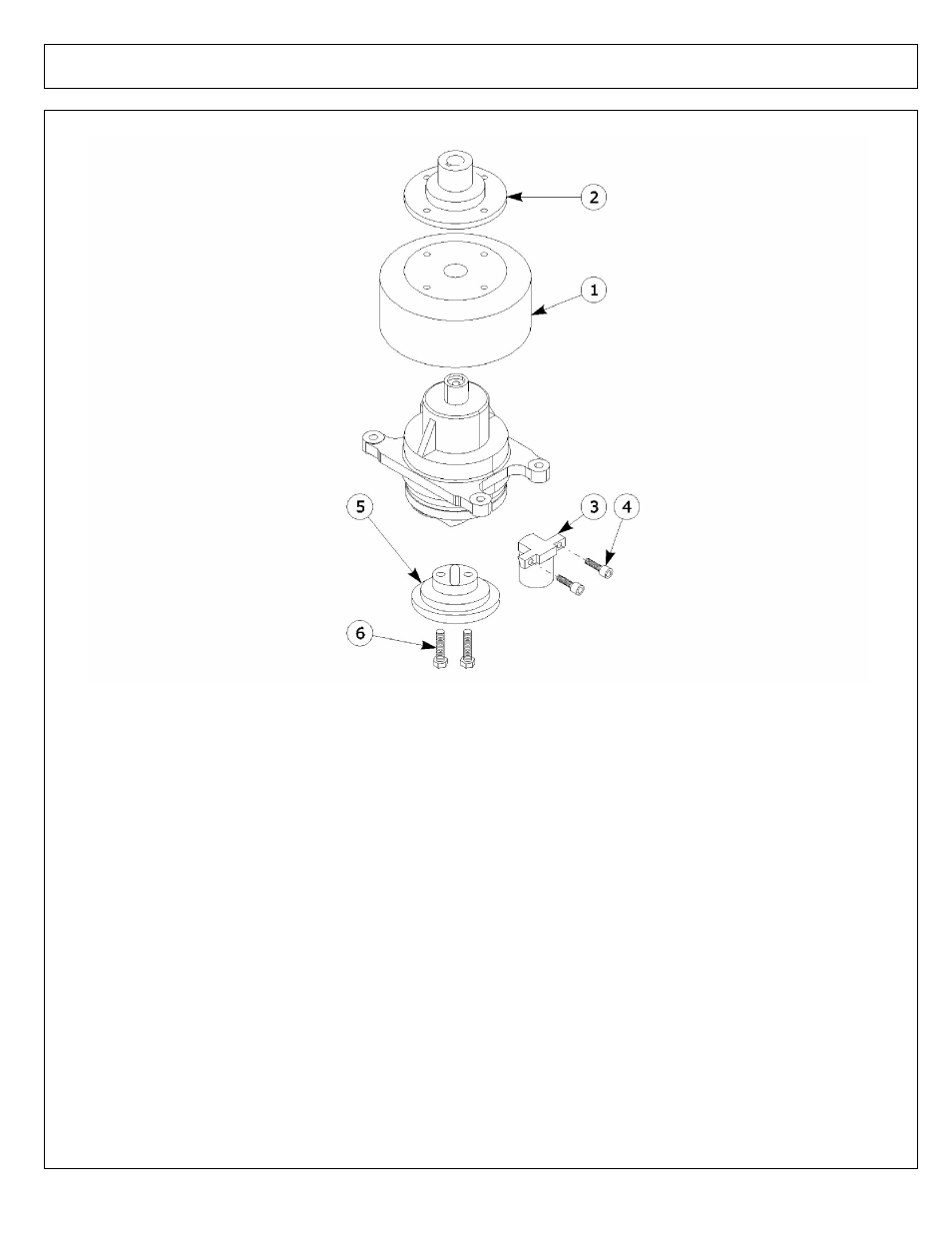

HYD MOTOR DRIVE ASY - PN 02974300 & PN 02974300A

ITEM

PART NO. QTY.

DESCRIPTION

02974300

1

HORIZONTAL KNIFE DRIVE ASY (W/ 5/16" KEY WAY) SWB6-10672 & DOWN

02974300A

1

HORIZONTAL KNIFE DRIVE ASY (W/ 1/4" KEY WAY) SWB5-10168 & DOWN

1

02974311

1

FLYWHEEL

2

02974315

1

HUB ADAPTER (W/ 5/16" KEY WAY) SWB5-10673 & UP

02974315A

1

HUB ADAPTER (W/ 1/4" KEY WAY) SWB6-10169 & UP

3

02974317

1

KNIFE DRIVE STUD ASY.

4*

02977820

2

SOCKET HEAD CAPSCREW, (TORQUE TO 35 FT. LBS)

5

02980453

1

SUPPORT HORIZONTAL KNIFE DRIVE

6

02967570

2

HEX BOLT

NOTE:TORQUE BOLTS ITEM #4 TO 35 FT. LBS.

©2011 Alamo Group Inc.

Parts Section -25

Switchblade 5`and 6` Spring-Brk-a-way (11-06) Rev 08-11
