2.1.5 Unload Step

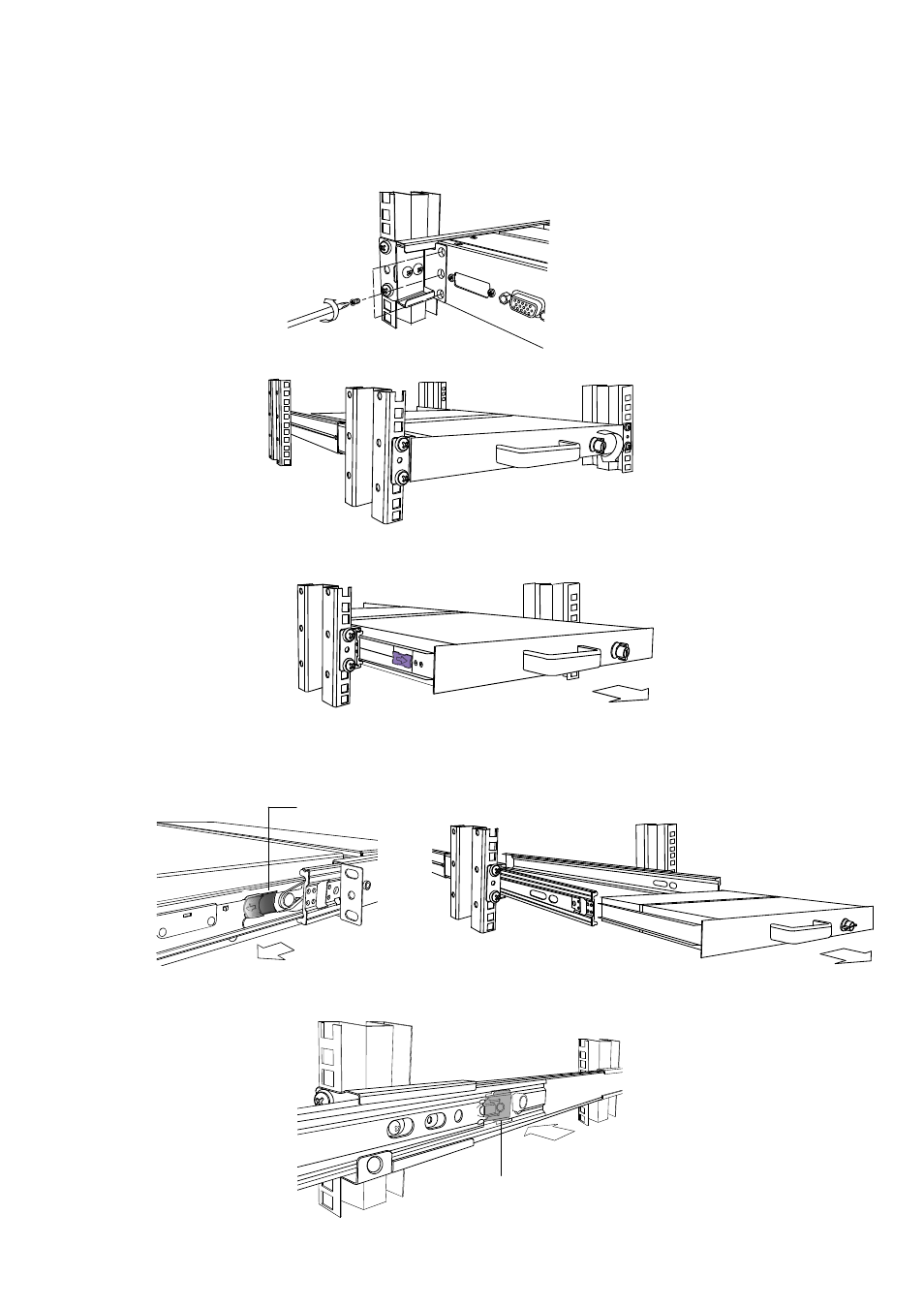

1. Make sure the console is lock.
2. Release three screws in rear of the console. (Both sides)







3. Unlock.






4. Pull console out until console lock.






5. Pull rail-release switch and pull console out.(Both sides.

Be careful when pull out

console.)








4. Push rail-lock switch on the rail and push rail back. (Both sides)






rail-release switch

rail-lock switch on the rail
