4

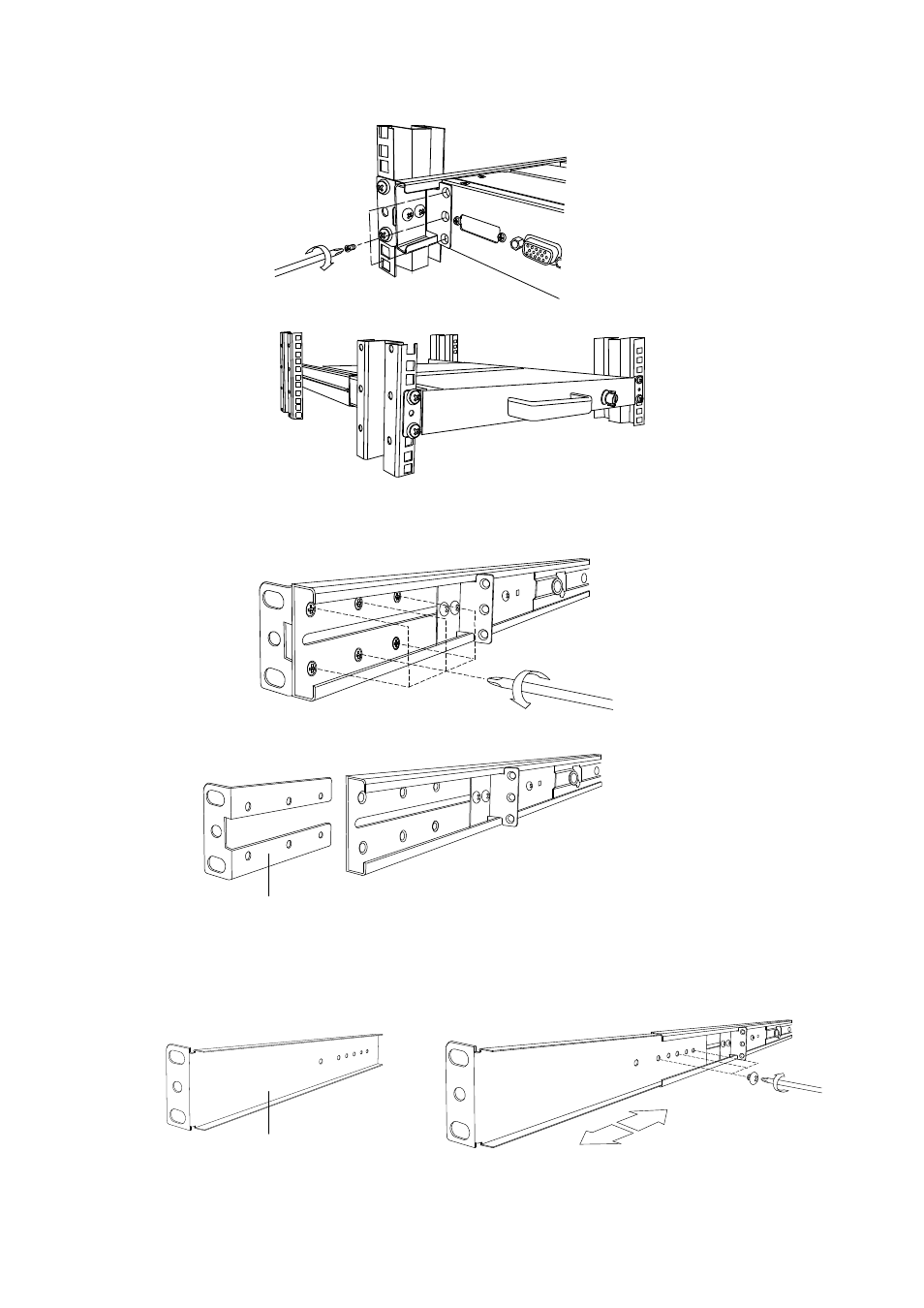

7. Install three screws in rear of the console. (Both sides)
8. Finish installation as below.
2.1.4 Replace longer bracket Step (For rack depth 828~1000mm)
1. Release six screws.
2. Take rear bracket out.
3. Input rear long bracket to rear of the rail then adjust rear bracket to fit your cabinet. Tight-up 2~3
screws upon the length you need.
4.
Repeat step 1~3 for the other side.
5. Repeat 2.1.3 step to install console to cabinet.
Rear long bracket
Original bracket
