Location, Supply and heater connections, Page 11 of 21 – King Electric GPT 3 User Manual

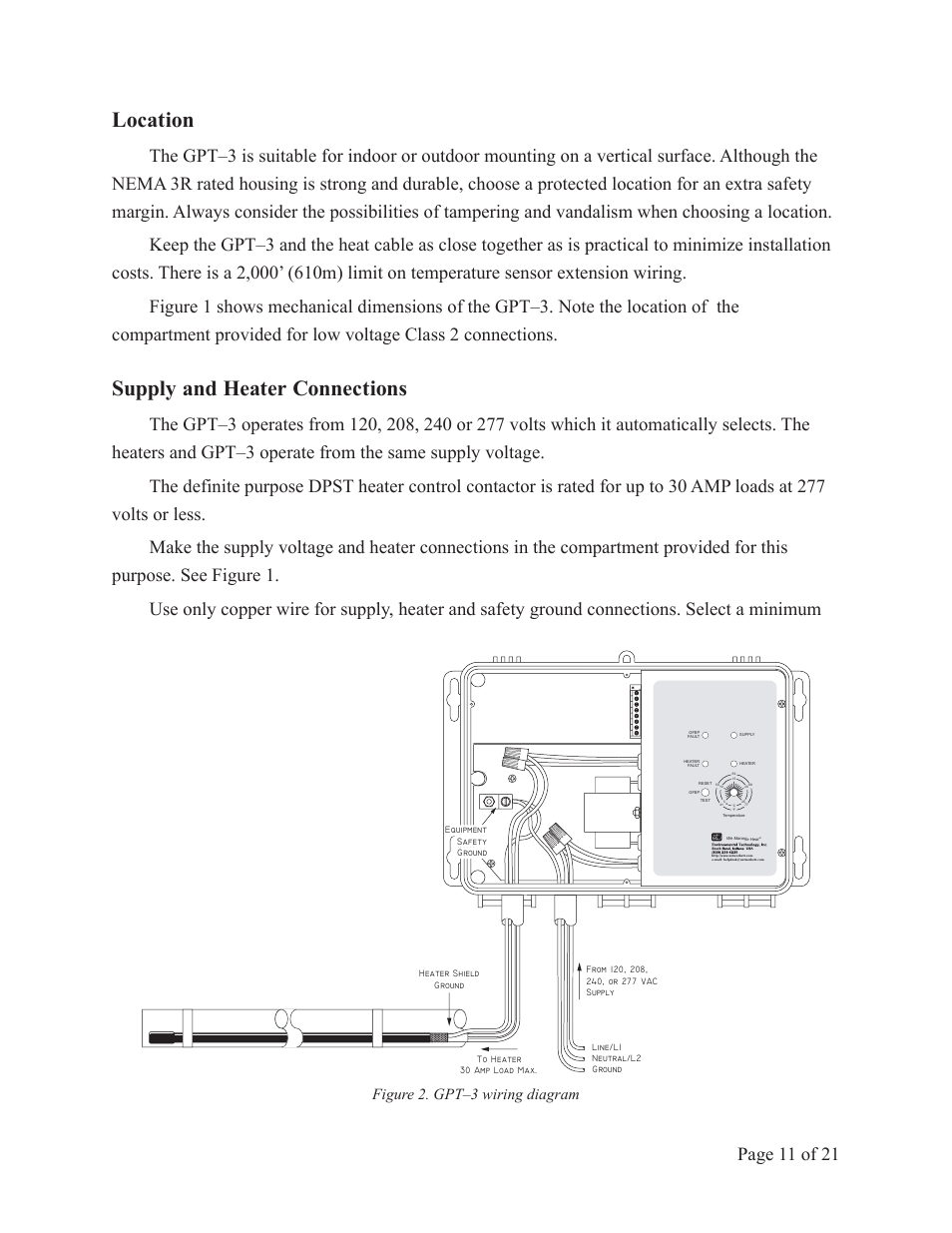

Page 11: Figure 2. gpt–3 wiring diagram
