MAINTENANCE OF THE HEATER
** BE SURE THE ELECTRICAL POWER TO THE HEATER IS DISCONNECTED BEFORE REMOVING THE GRILL
**DO NOT OPERATE THE HEATER WITH GRILL REMOVED**
The heater should be kept free of lint and dust accumulations. Every six months (or more often if lint accumulations are observed) the grill should
be removed and the heater blown clean with a vacuum cleaner. While the grill is removed it may be cleaned with a soft damp cloth. Abrasive or
solvent cleaners will damage the paint. If repair parts are required use only the proper parts purchased from your KING dealer. Substituting parts
may be hazardous and voids all warranties.
FINAL CHECKLIST
1. Read and follow the installation, operation and maintenance sheet.
2. Be sure to comply with applicable building and electrical codes.
3. Locate the heater where it will not blow heated air on objects that will discolor or
distort at 140°/150°F.
4. Attach this heater to a properly fused circuit that is free of all other electrical loads.
5. Be sure the heater is supplied with the correct voltage.
6. Be sure the heater is grounded.
7. Keep all flammable liquids, gases, and pressurized containers away from the heater.
8. Instruct all responsible persons in the proper and safe operation of the heater.
9. Instruct all persons, especially children, of the hazards of tampering with the heater.
10. Keep the air passages through the heater clear of obstructions and lint or dust accumulations.
11. Be sure this sheet becomes the property of all future owners of this heater.
12. Keep the heater in good repair.
KT.indd : 4/08
This heater includes a manual reset thermal
protector with a self-hold feature. If the heater
shuts off with the on position and the room
temperature is below the highest thermostat
setting immediately disconnect the power to
the heater at the circuit breaker and inspect for
any objects on or adjacent to the heater that
may cause high temperatures. After inspecting
the heater, keep the power off to the heater for
10 minutes to reset the thermal protector. If
the heater thermal protector shuts the heater
off again, immediately turn the heater off at
the circuit breaker and inspect the heater for
possible fan motor failure or dirt and lint on the
heating element. Repeat starting procedure.
SLP
SMART
LIMIT
PROTECTION
®
U.S. PATENT #6,748,163 B2
CANADIAN PATENT #2,393,882
cabinet
3"
KT2415 heater
0" 1" 2" 3" 4" 5" 6" 7" 8" 9"
0" 1" 2" 3" 4" 5" 6" 7" 8" 9"
123° 123° 120° 118° 118° 118° 118° 118° 117° 116°
(Average Floor Temperature
± 10% - 70% Ambient)

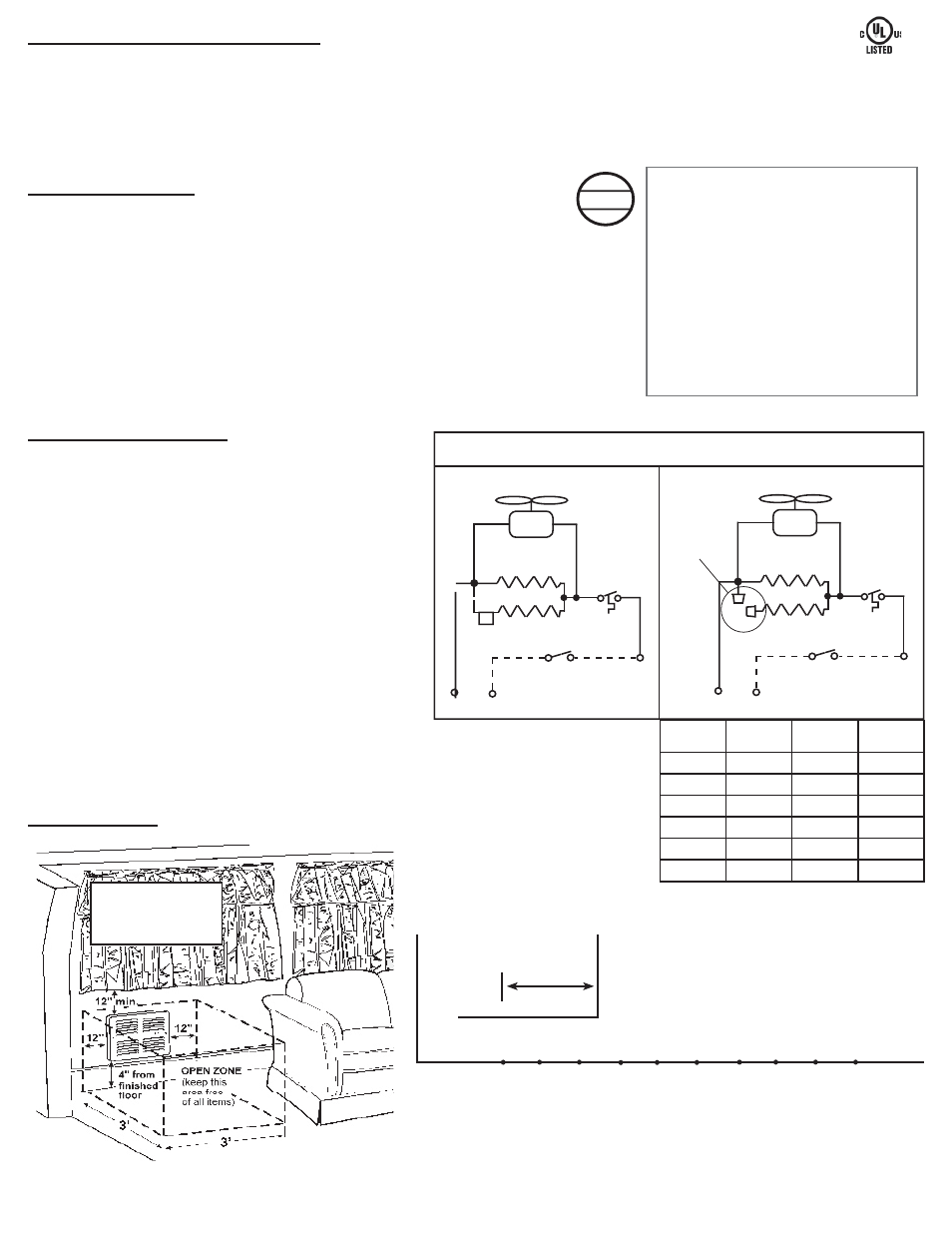

KT - HEATER WIRING DIAGRAM
Two Element - Factory Wiring Single Element - Factory Wiring
FAN
ELEMENT
THERMOSTAT
(OPTIONAL)
LIMIT
L 1 L 2 POWER SUPPLY
L 2
TAG
E1
E2
FAN
ELEMENT
THERMOSTAT
(OPTIONAL)
LIMIT
L 1 L 2 POWER SUPPLY
L 2
E1
E2
Capped
Ends
MODEL VOLTS
2 Element
Wattage
1 Element
Wattage
KT1210 120 1000 500
KT1212 120 1200 600
KT1215 120 1500 750
KT2410 240 1000 500
KT2412 240 1200 600
KT2415 240 1500 750
FAN-FORCED HEATERS:
Clearances for Safe Operation
TOE SPACE HEATERS
CAUTION READ BEFORE INSTALLATION
“CAUTION” - HIGH TEMPERATURES. Linoleum and other
flooring material must be able to sustain temperatures of 139°F
for extended periods of time without discoloring or deterioration.
Many linoleums discolor at low temperatures and from sunlight.
King Electrical Mfg. Company is not responsible for replacement
of discolored flooring material due to hot air from this heater.
Suitable installation and placement selection for this heater is the
responsibility of the end user.
The front cover also has the following markings to caution
owners of high temperatures:
“CAUTION” - SOURCE OF POSSIBLE IGNITION
- HIGH TEMPERATURE -
KEEP COMBUSTIBLE MATERIALS AWAY FROM
FRONT OF HEATER. DISCONNECT POWER BEFORE SERVICING.
KEEP ANY COMBUSTIBLE MATERIAL AT LEAST 3FEET (.9m) FROM FRONT OF
HEATER AND AWAY FROM SIDES
CLEARANCES
