Connecting / Setting Procedures
2-3 Connecting / Setting Procedures
This section describes the connecting / setting procedures for both this device and
SE4D series.
1. Set the
SE4D series, and check that the
SE4D series works properly. For mounting
method of
SE4D series, refer to the
Instruction Manual.

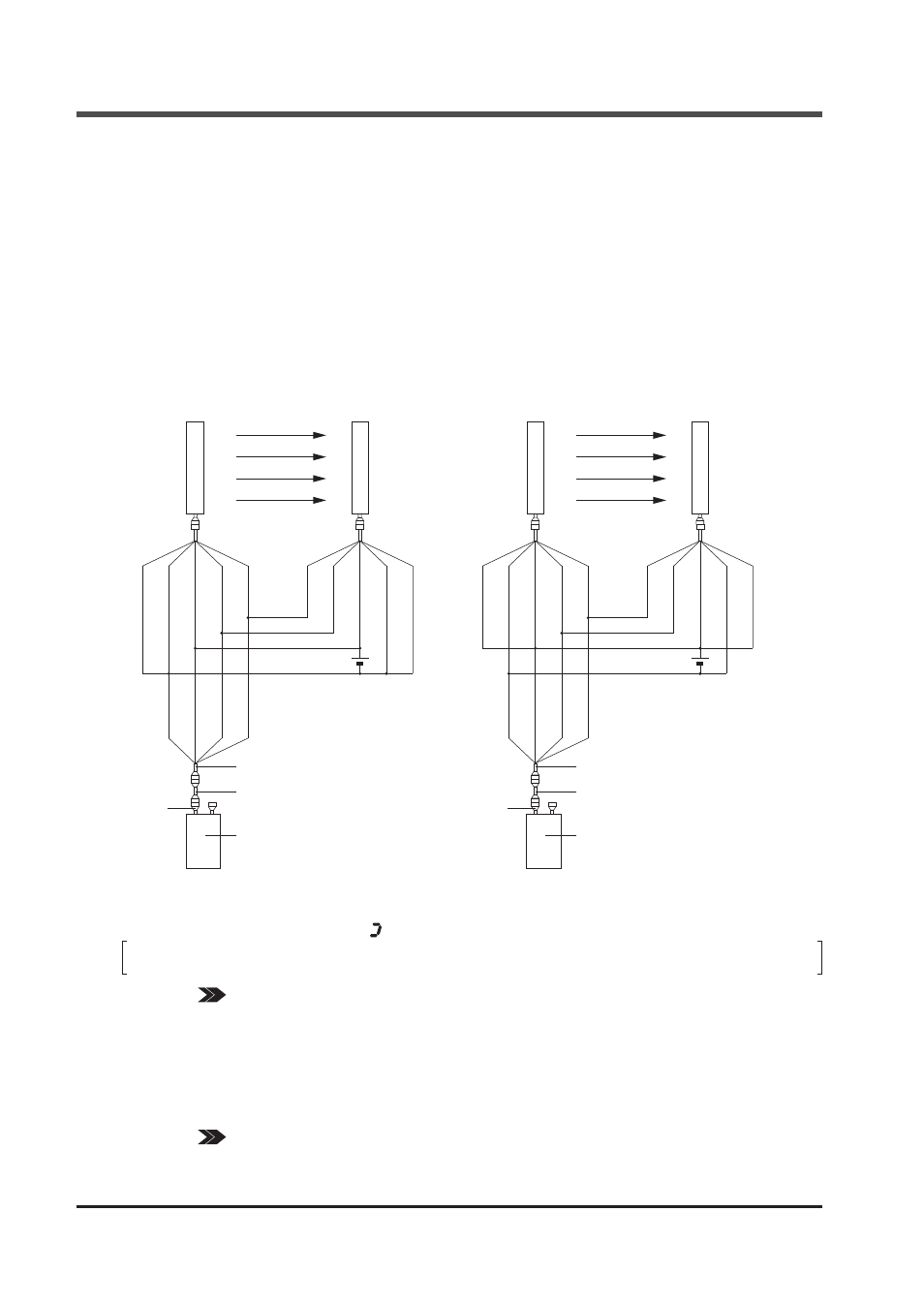

2. Turn OFF the power and connect this
device to the
SE4D series. Use the handy
controller connection cable (
SE9Z-WNC1)
for the connection. The handy controller
connection cable (
SE9Z-WNC1) can be
connected by connecting the included
SE9Z-CCJ02-HC1 to the device’s female
connector.
3. Turn ON the power, and set the function with this device.
After the power of this device is ON, approx. 30 sec. will be taken for data transmission with
SE4D
series. While data transmission, “ ” lights up in revolving.
The control output (OSSD 1 / 2) of
SE4D series is set to “OFF” while this device has been
connected.
REFERENCE
Refer to “
3-1 Functional Descriptions” for the details of the functions, and refer to “3-2
Function Setting (Operation Procedure)” for the setting procedures of the functions
respectively.
4. Turn OFF the power, then remove this device.
5. Check that the
SE4D series works as set at the procedure 3.
Then, inspect the
SE4D series.
REFERENCE
Refer to “
Chapter 4 Maintenance” of the SE4D series instruction manual for the details of
the inspection of the
SE4D series.
24V±10%
+
-
Emitter
Receiver
(Shield)
(Blue)
(Brown)
(Orange)
(Orange / Black)
(Blue)
(Brown)
(Orange)
(Orange / Black)
(Shield)
(Blue)
(Brown)
(Orange)
(O
ran
ge
/ B
lac
k)
24V±10%
+
-
Emitter
Receiver
(Shield)
(Blue)
(Brown)
(Orange)
(Orange / Black)
(Blue)
(Brown)
(Orange)
(Orange / Black)
(Shield)
(Blue)
(Brown)
(Orange)
(O
ran
ge
/ B
lac
k)
Handy controller connection
cable (SE9Z-WNC1)
This device
SE9Z-CCJ02-HC1
Female
connector
Handy controller connection
cable (SE9Z-WNC1)
This device
SE9Z-CCJ02-HC1
Female
connector
