31

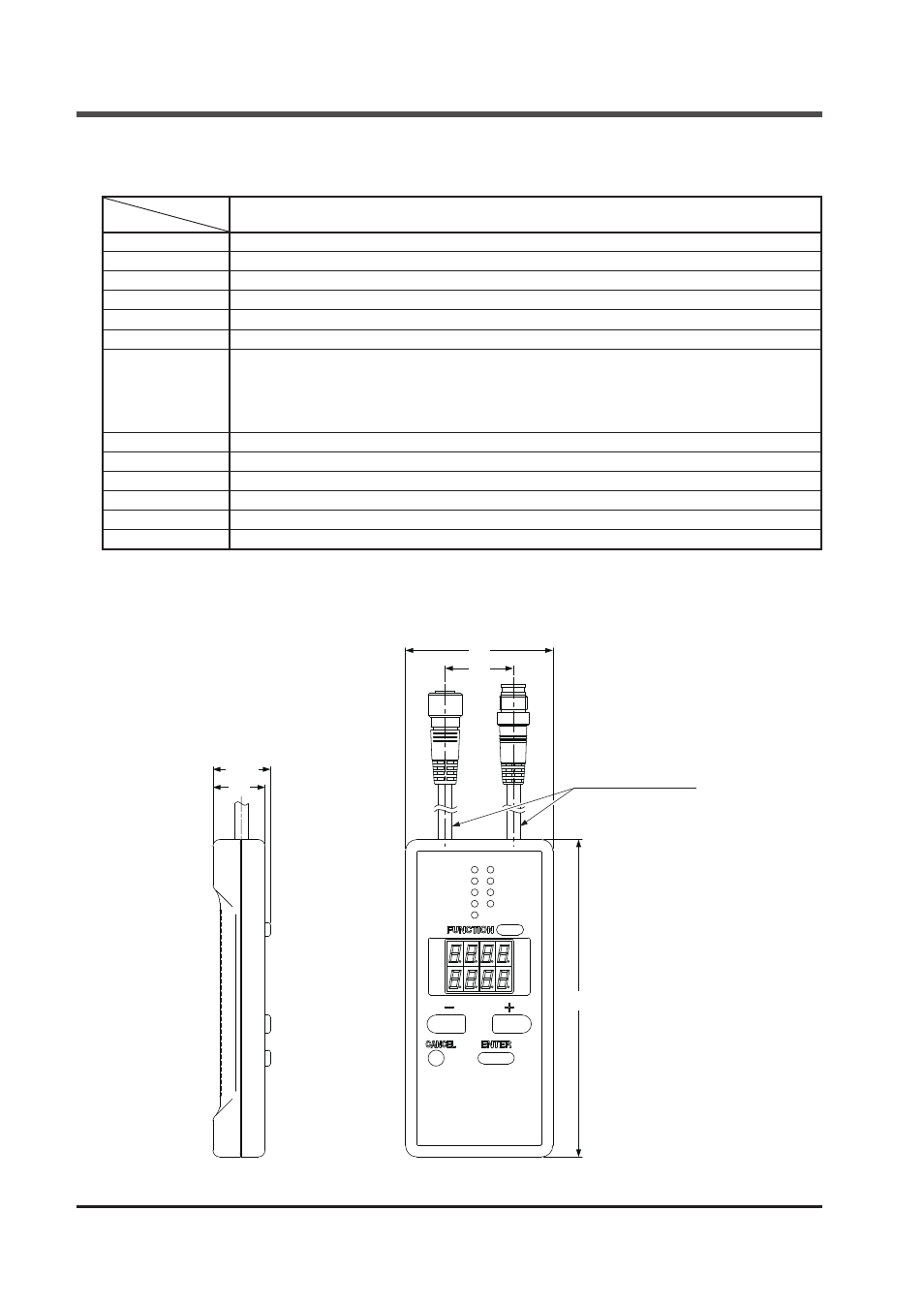

CHAPTER 5 SPECIFICATIONS / DIMENSIONS
5-1 Specifications
Model No.
Item
SE9Z-HC
Applicable model Light curtain SE4D series
Supply voltage 24V DC±10% Ripple P-P 10% or less (common to sensor power supply)
Current consumption 65mA or less
Communication method RS-485 two-way communications (specific procedure)
Digital display 4-digit red LED display × 2 (selected beam channels, setting contents etc. are displayed. )
FUNCTION indicator Green LED × 9 (lights up when each functional setting is ON)
Functions
Fixed blanking function, Floating blanking function, Auxiliary output switching function
Emission intensity control function, Copy function (Note), Muting setting changing function
Interlock setting changing function, External device monitor setting changing function
Protective function, Initialization function, Setting contents monitoring function and
Override setting changing function
Ambient temperature -10 to +55°C (No dew condensation or icing allowed), Storage: -25 to +70°C
Ambient humidity 30 to 85% RH, Storage: 30 to 85% RH
Voltage withstandability 1,000V AC for one minute between all supply terminals connected together and enclosure
Insulation resistance 20MΩ or more, with 500V DC megger between all supply terminals connected together and enclosure
Cable
8-core shielded cable with a connector on one end 0.5m long (2 pcs.)
Weight Approx. 200g
Note: There may be a case that the copied data through the copy function is deleted due to external causes. After the copy
function was used, check the copied data.
5-2 Dimensions
(Unit: mm)
25.4
23
30
65
140
ø6 cable 0.5m long
