2: M ODULE S PECIFICATIONS
2-4 M ICRO S MART AS-I NTERFACE M ASTER M ODULE U SER ’ S M ANUAL

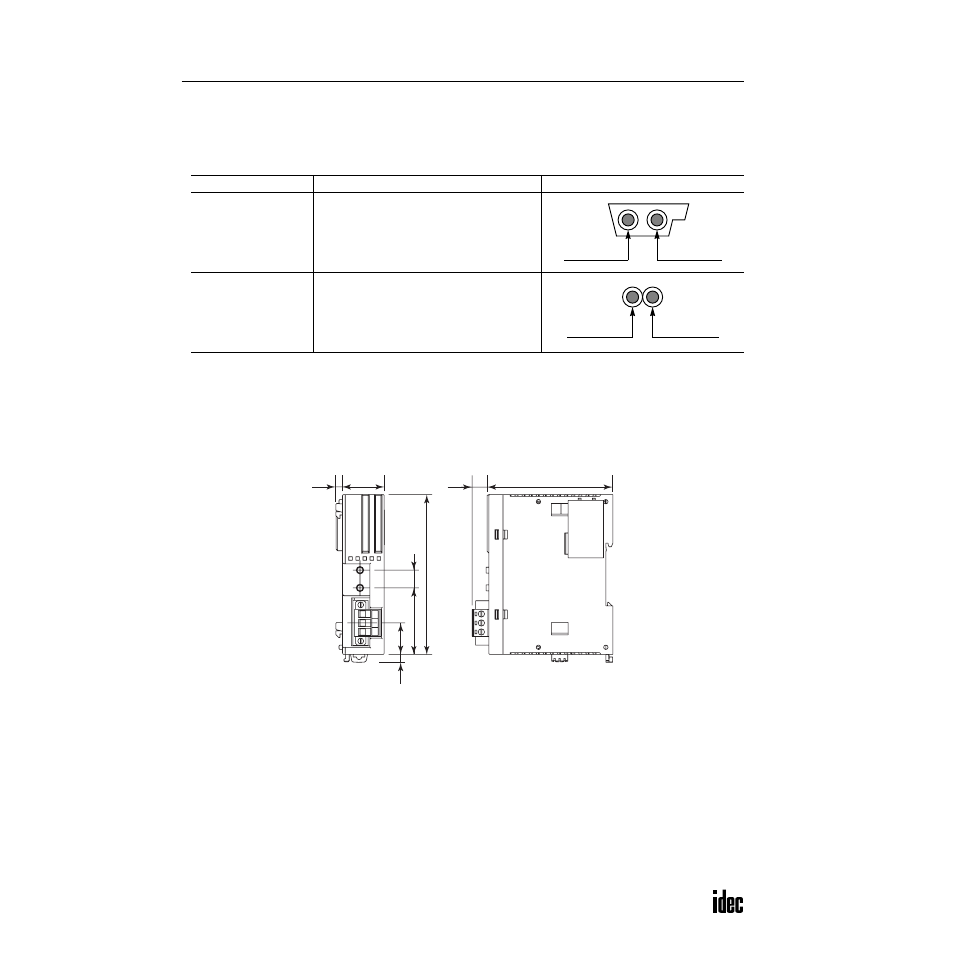

Applicable Cables
The AS-Interface cable transfers data and supplies power to the sensors and actuators connected to the bus. The following
cables can be used with the AS-Interface master module.
Applicable Cable Specifications
Note: When using single wires, the maximum cable length is 200 mm. See “Maximum Cable Length” on page 2-3.
Dimensions
The AS-Interface master module has the same profile as all other MicroSmart modules for consistent mounting on a DIN
rail.
Cable Type Cable Size/Manufacturer Cross-sectional View
AS-Interface
Standard Cable
Cable sheath color: Yellow
Conductor cross section: 1.5 mm 2
LAPP’s Cables
Type No: 2170228 (sheath material EPDM)
Type No: 2170230 (sheath material TPE)
2-wire Flat Cable
or
Single Wires
(See Note) Conductor cross section
Stranded wire:
0.5 to 1.0 mm 2
Solid wire: 0.75 to 1.5 mm 2
AWG: 20 to 16
AS-Inter face – AS-Inter face +
(blue) (brown)
AS-Inter face – AS-Inter face +
(blue) (brown)
All dimensions in mm.
10
17.7
37.5
23.5
90.0
4.5*
3.8 9.4 70.0
*8.5 mm when the clamp is pulled out.
