Sp
ec
S
h
ee
t
Specifications
ELECtRICAL
Operating Range: .1-6 MHz
Return Loss: Better than 28.5 dB
Insertion Loss: Better than .14 dB
ENVIRONMENtAL
Tested to IEC68, MIL-STD-202
Description Catalog Number
UniPatch Multi-Circuit Front Facing Balun, AES Audio to Coax , 110 Ω – 75 Ω
UniPatch E3 to BNC Front Facing Balun AM-411075-E3-FF
O r d e r i n g I n f o r m a t i o n
Features
• Digital Audio Impedance Matching
• Can be mounted in the standard UniPatch frame or
used in a throwdown application
• Uses E3 connectors
• Uses precision BNC connectors
• Full front access

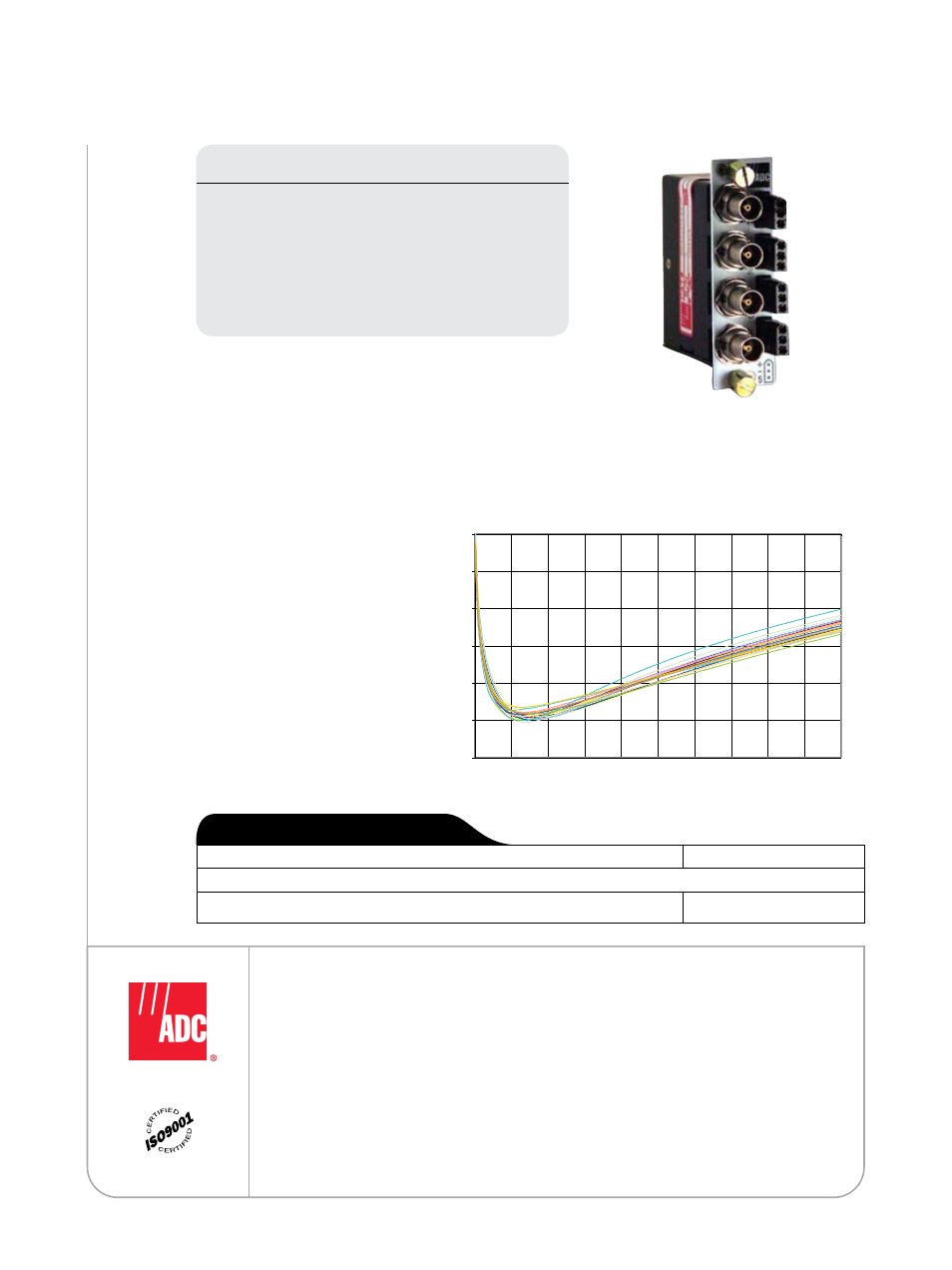

UniPatch ® Multi-Circuit Front Facing Balun
Multi-Circuit
Front Facing Balun
-50
-45
-40
-35
-30
-25
-20
0 1 2 3 4 5 6 7 8 9 10
Frequency (MHz)
Loss (dB)
Return Loss
Digital Audio Coax Baluns Series
