Digital Audio Coax Baluns Series
w w w . a d c . c o m • + 1 - 9 5 2 - 9 3 8 - 8 0 8 0 • 1 - 8 0 0 - 3 6 6 - 3 8 9 1
Specifications
ELECtRICAL
Operating Range:
.1-6 MHz
Maximum Voltage: Variable
Return Loss: Better than 25 dB
Insertion Loss: Better than .2 dB
ENVIRONMENtAL
Tested to IEC68, MIL-STD-202
Description Catalog Number
UniPatch Multi-Circuit Balun/Audio Splitter, 110 Ω - 75 Ω
Split 2-Circuit Input Audio (QCP) into 4-Circuit Output Coax (BNC) AM-2110-475-MKII
Split 2-Circuit Input Audio (3-Pin) into 4-Circuit Output Coax (BNC) AM-2110-475-E3
O r d e r i n g I n f o r m a t i o n
Features
• Digital Audio Impedance Matching
• Can be mounted in the standard UniPatch
frame or used in a throwdown application
• Unique removable attenuation pad capability
allows users to control individual circuit’s
voltage outputs
• Cost efficient splitting done passively without
need for active equipment
• Uses E3 or QCP punchdown connectors
• Uses precision BNC connectors

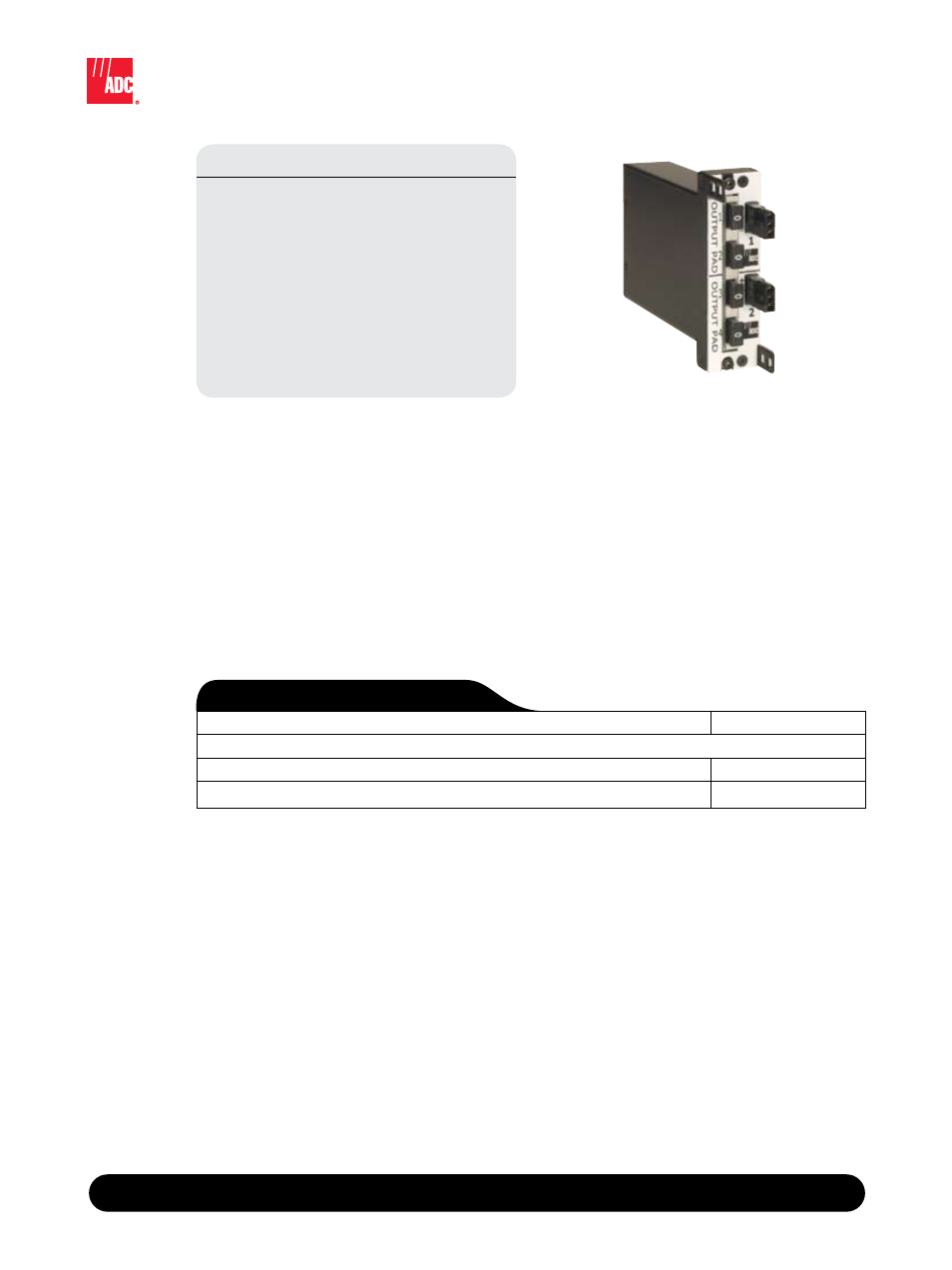

AES 2:4 Splitter Balun
UniPatch ® Multi-Circuit Balun/Audio Splitter
