ASSEMBLY
F-4145 01/11 Assembly Section 3-3
© 2011 Alamo Group Inc.
ASSEMBL
Y

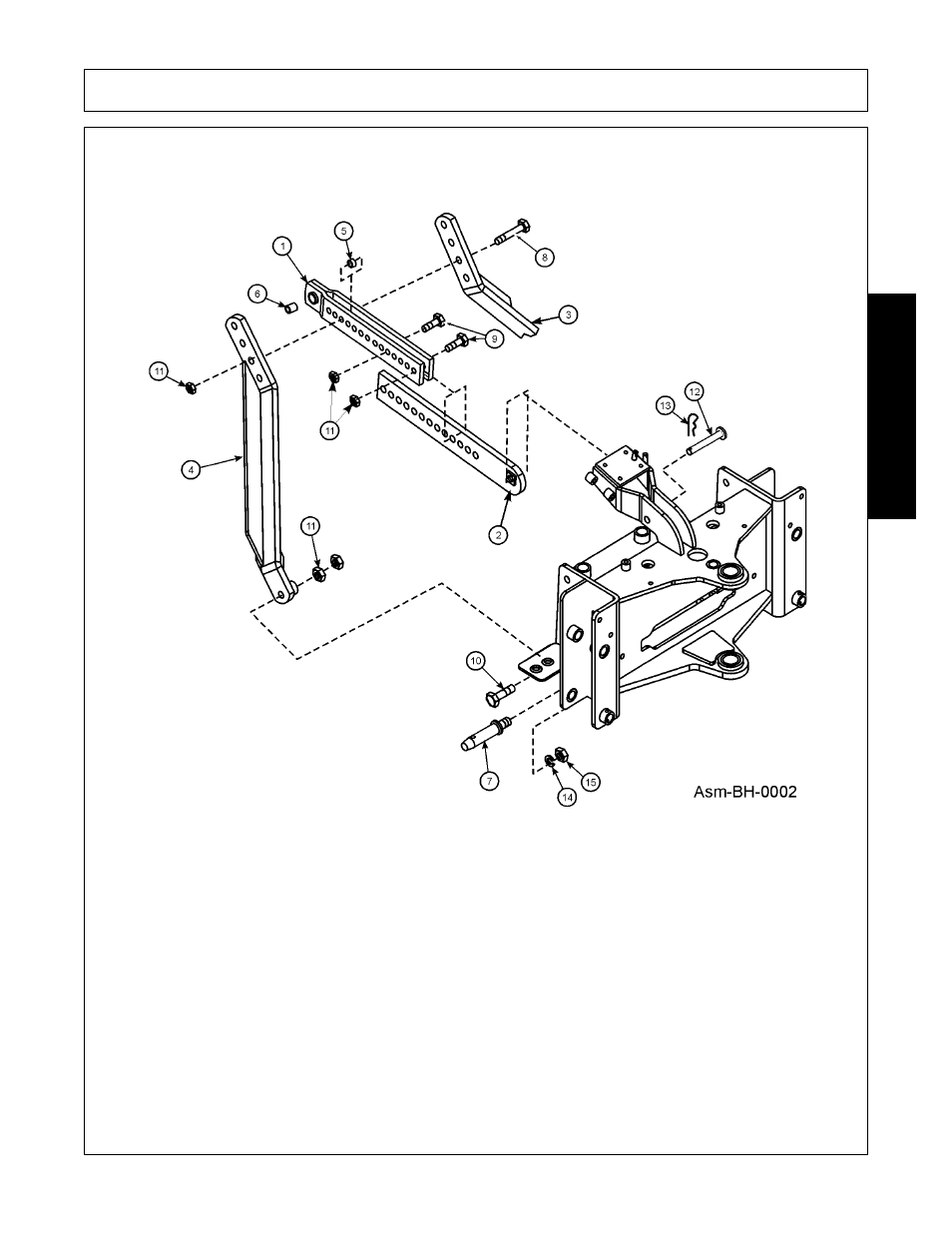

INSTALLING THREE POINT ADAPTER (Option)
1. Install link pins (7) to backhoe using 7/8 lock washers
(14) and 7/8 nuts (15).
2. Join upper link (1) and center link (2) using 3/4 x 2-1/2
cap screws (9) and 3/4 lock nuts (11). Leave a
minimum of 3-3/4 inches between bolts.
NOTE: Leave hardware loose. Assembly may need to be
lengthened or shortened to mount backhoe mainframe in
vertical position.
3. Install link assembly to backhoe mainframe using
clevis pin (12) and hairpin cotter (13).
4. Fasten support braces (3) to backhoe using 3/4 x 2
cap screws (10) and 3/4 lock nut (11) and to link
assembly using 3/4 x 4 cap screw (9), bushing (5) and
3/4 lock nut (11).
NOTE: Support brace must be fastened within 6-3/4
inches of link point that fastens to tractor. Bottom end of
support braces are mounted to inside
