Table 2-4
Hoist with Push or Geared Trolley Specifications
Capacity
(lbs)
Product Code
Lifting Speed
(ft/min)
Standard
Lift
(ft)
Push
Button
Cord
L
(ft)
Motor
Output
(HP)
Intermittent
Duty Rating
Short
Time
Duty
Rating
(min)
Rated
Current
at 120V
(amps)
Adjustable
Beam Width
(in.)
Min.
Radius
for
Curve
(in)
Net
Wt.
(lbs)
S & DS
Model
S & DS
Model
S
Model
DS
Model
S & DS
Model
S & DS
Model
Duty
Rating
% ED
Max. Start
Freq.
(Times/Hr)
1050
with
PTS2005
with
GTS2010
22
22/6
10
8
0.8
30
180
15
10
2.28 – 4.00
(2.28 – 5.00)
43.3
(51.2)
55
(75)
FIGURES IN PARENTHESIS ARE DATA FOR GEARED TROLLEY.
Table 2-5
Single Speed or Dual Speed Hoist with Push Trolley Dimensions
Capacity
(lbs)
Product Code
Headroom
C
(in)
a
(in)
b
(in)
e
(in)
g
(in)
h
(in)
i
(in)
j
(in)
k
(in)
m
(in)
n
(in)
r
(in)
t
(in)
Hoist
Trolley
1050 ED1050 PTS2005
20.5
8.0
7.2
1.8
0.9
3.2
2.36
0.7
3.0
1.9
3.3
1.5
0.87
Table 2-6
Single Speed or Dual Speed Hoist with Geared Trolley Dimensions
Capacity
(lbs)
Product Code
Headroom
C
(in)
E
(ft)
a
(in)
b
(in)
e
(in)
g
(in)
h
(in)
i
(in)
j
(in)
k
(in)
k'
(in)
m
(in)
n
(in)
r
(in)
t
(in)
u
(in)
Hoist
Trolley
1050 ED1050 GTS2010
21.0
7.5
13.6
9.3
6.0
0.9
4.2
2.80
1.1
3.7
4.2
2.2
4.4
2.0
0.98
7.2

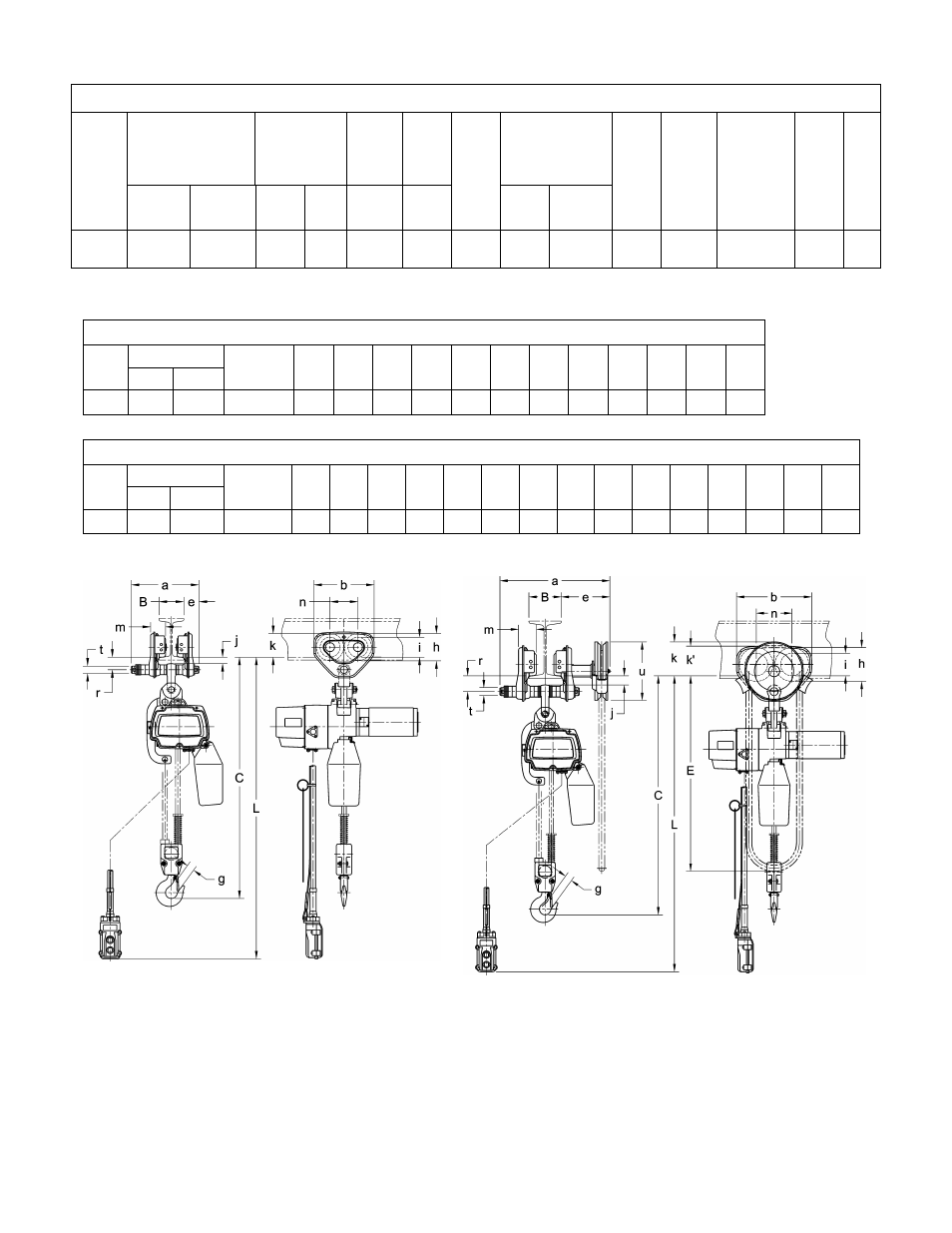

FIGURE 2-2
PUSH TROLLEY DIMENSION FOR S AND DS MODELS
(SEE TABLE 2-5)
FIGURE 2-3
GEARED TROLLEY DIMENSION FOR S AND DS MODELS
(SEE TABLE 2-6)
