Table 2-1
Hoist Motor Rating
Cap.
(lbs.)
Product Code
Motor
Intermittent Duty
Rating
Short
Time
Duty
Rating
(min)
Rated
Current
at 120V
(amps)
Single
Speed
S Model
Dual
Speed
DS Model
Output
(Hp)
Rated
Current
at 115V
(Amps)
Duty
Rating
% ED
Max. Start
Freq.
(Times/Hr)
1050
ED1050S
ED1050DS
0.8
10
30
180
15
10
Table 2-2
Hoist Specifications
Cap.
(lbs.)
Product Code
Lifting Speed
(ft/min)
Load
Chain
Wire
Diameter
(mm) x
Chain Fall
Lines
Load
Sheave
Pockets
Net Weight
(lbs.)
Weight for
Additional One
Foot of Lift
(lbs.)
Single Speed
S Model
Dual Speed
DS Model
S
Model
DS &
DA
Model
S
Model
DS
Model
S
Model
DS
Model
1050
ED1050DS
ED1050DS
22
22/6
4.0 x 2
5
46
47
0.49
0.52
2.2
Dimensions
Table 2-3
Hoist Dimensions
Cap.
(lbs)
Headroom
C
(in)
Standard Lift
L
(ft)
Push Button Cord
L
(ft)
a
(in)
d
(in)
e
(in)
f
(in)
g
(in)
h
(in)
i
(in)
j
(in)
k
(in)
S & DS
Model
S & DS Model
S & DS Model
1050
20.5
10
8
16.9
8.1
8.8
9.0
0.9
6.1
2.9
1.0
17.9

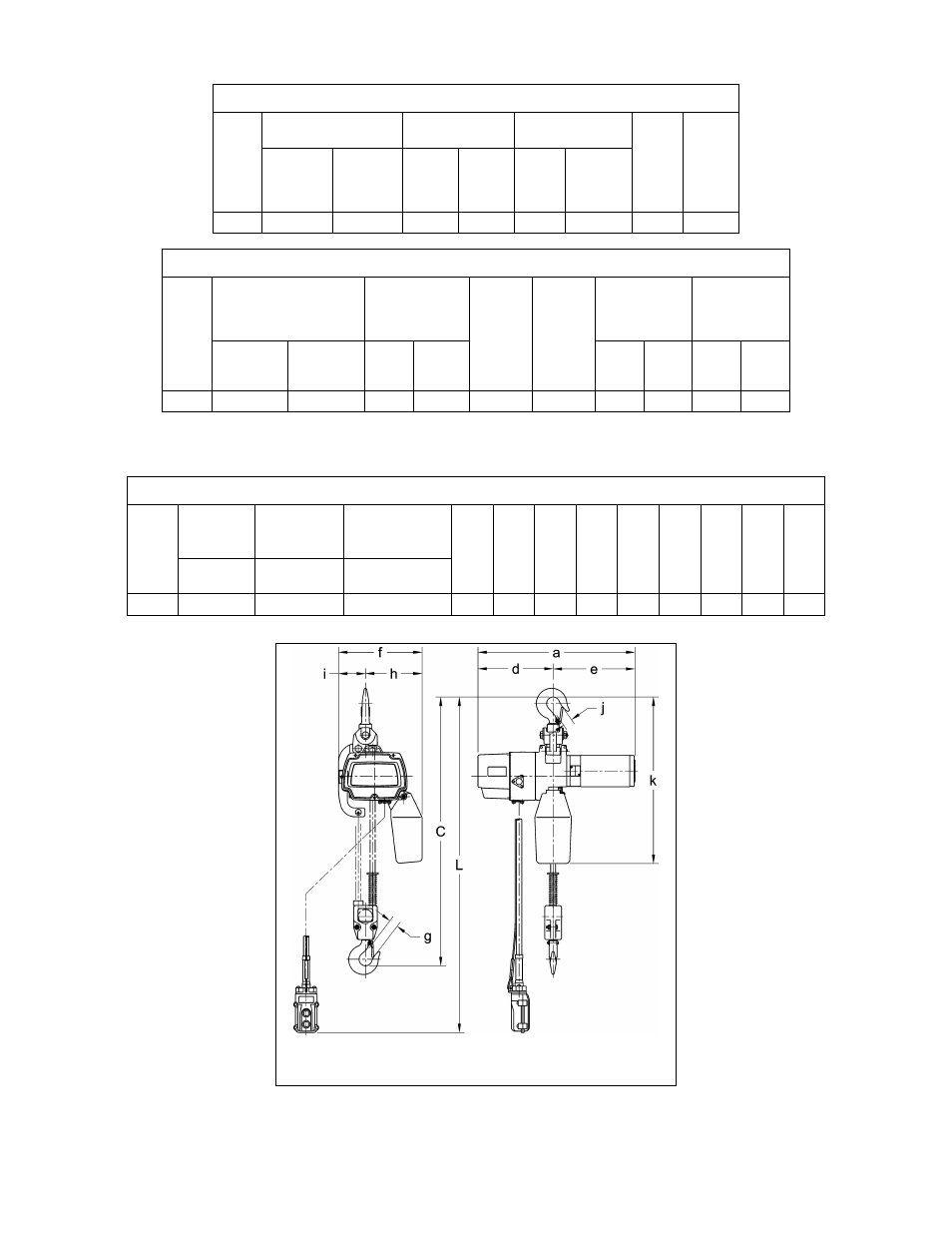

Figure 2-1
Hoist Dimension for S and DS Models
(See Table 2-3)
