1) Ground Wire to Ground Stake (Electrician)
2) Two Electrical Knockouts (Electrician)
3) Oil fill.
4) Engine.
5) Spark plug (Replace every 300 hours of use). 6) Oil cooler.
7) Oil filter (Replace every 200 hours).
8) Oil drain with flexible drain hose. NOTE: Change
oil after every 50 hours of use.
9) Dry fuel gas input (Always use flexible fuel line).
KNOW YOUR GILLETTE HOME GENERATOR

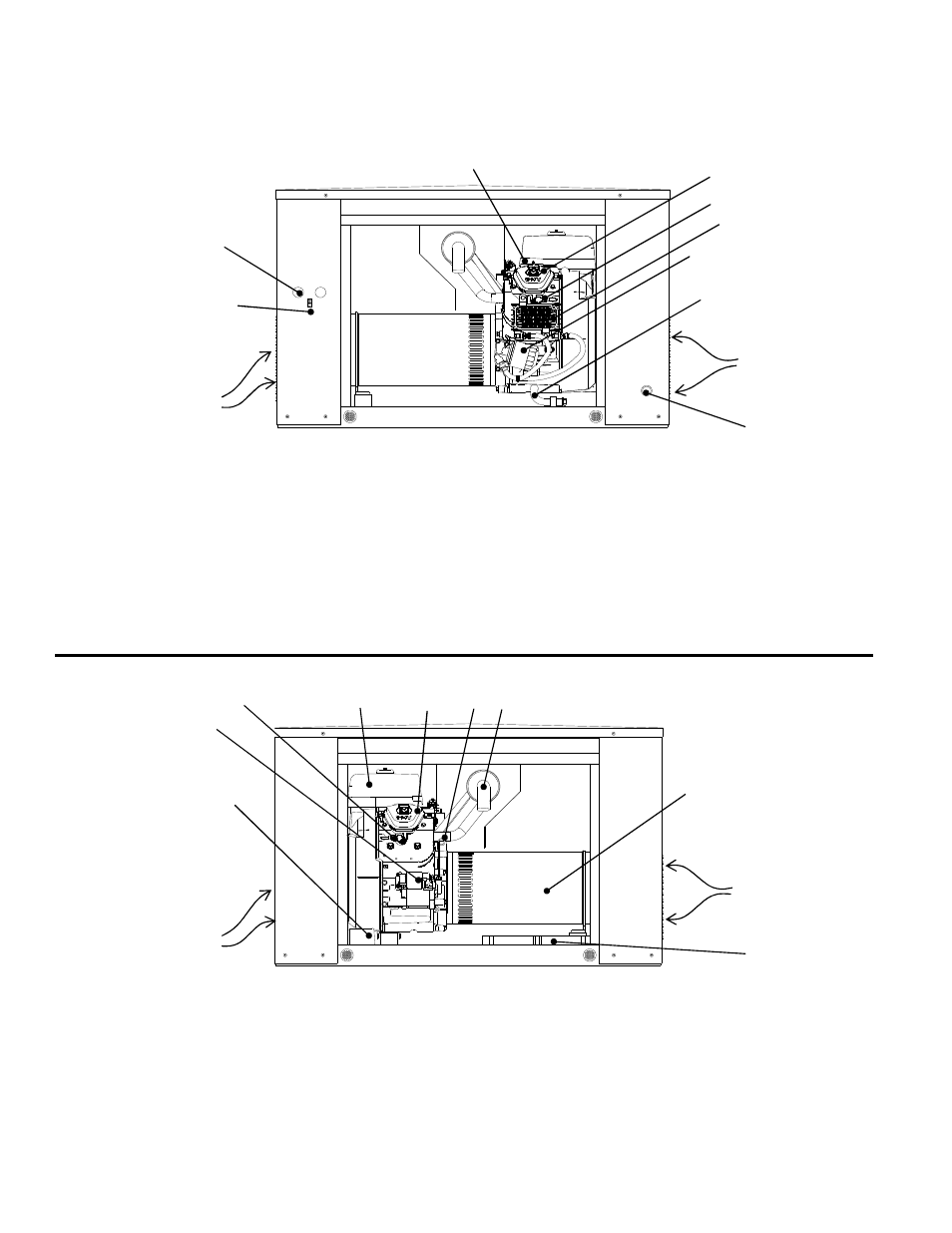

Compare the following illustrations and individual component locations, with your actual GILLETTE home
generator system. This will help familiarize yourself with the entire generator set.
10) 12 VDC battery charger. Installer must connect
120 volt, 1 phase utility power to this charger.
11) 12 VDC engine starter motor.
12) Spark plug (replace every 300 hours of use).
13) Air cleaner element (Clean every 50 hours,
replace at 300 hours).
15) Oil dipstick.
16) Muffler. CAUTION: Hot to the touch when in use.
17) Generator.
18) Battery tray (see page 16 for installation and
caution use).
Control, Wiring,
& Generator End
Engine End
