Sonnet Technologies Crescendo_PCI Processor Upgrade Card User Manual
Page 29

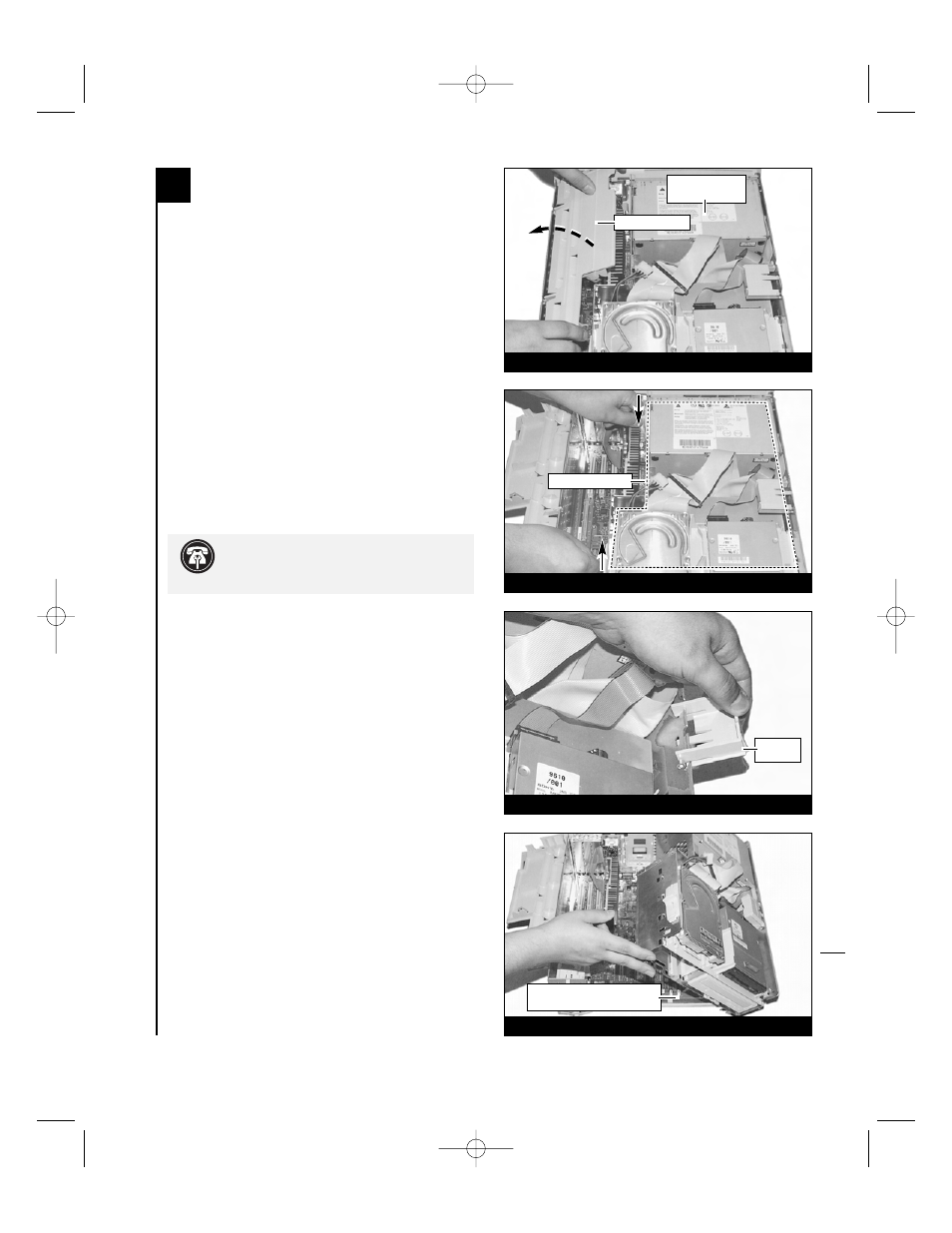

4. Identify the internal components of your com-
puter. Touch the power supply metal shielding
(Figure 2) to discharge any potential damaging
static electricity, and rotate the plastic processor
cover up and to the left (Figure 2).
5. Release the two latches (Figure 3) that lock the
internal assembly for the drive bay and power
supply in place.
6. Lower the assembly support stand (Figure 4).
7. Rotate the internal assembly out of the case
(Figure 5). The support latch should lower and
lock in place.
En
1-5
Figure 2; Figura 2
processor cover
power supply
metal shielding
Figure 5; Figura 5
Figure 3; Figura 3
Figure 4; Figura 4
internal assembly
support
stand
lower support latch (located
underneath assembly)
Support Note:
Remember to lift the
support latch when you close the internal
assembly because it will easily break.
PCI TriManual-Chapters 1-13 3/30/01 5:55 PM Page 11
