2
Hardware Installation Preparation
Prior to installing the Tempo Trio and hard drives into your system, you should
familiarize yourself with the parts to be installed. We also strongly recommend
that you read the sections in your computer’s user manual that address hard
drive and PCI card installation.

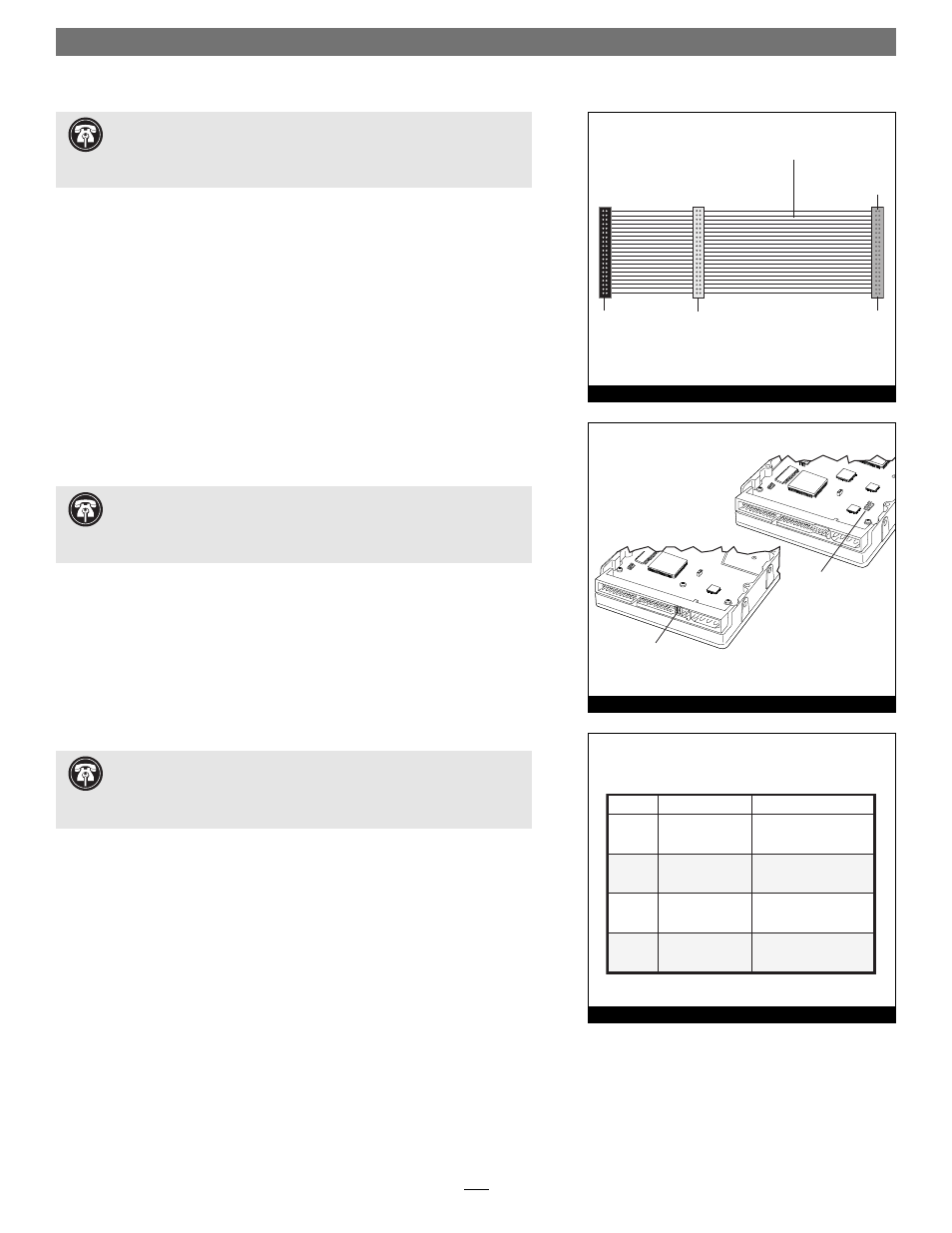

1. Identify the connectors on the included Ultra ATA cable as shown in
Figure 1; the host connector plugs into the Tempo Trio card, while the
master and slave connectors plug into the hard drives.
2. Remove the hard drive from its packaging.
3. Locate the jumper block on your hard drive. Figure 2 shows the two
most common jumper block locations.
Tempo Trio Card and Hard Drive Installation Steps
This section covers the installation of the Tempo Trio card, and the confi gura-
tion and installation of one or more hard drives into your system.
1. Shut down your computer.
2. Open your computer to access the expansion card area (PCI slots) and
drive bay(s); refer to your computer’s user manual for specifi c information.
3. Confi gure the hard drives’ jumpers as follows:
• When installing one drive, you must set its jumpers to the single set-
ting when available, or the master setting when not (Figure 3). When
connecting two drives to the supplied Ultra ATA cable, you must set the
jumpers on one drive to the master setting, and to the slave setting on
the other (Figure 3).
• When installing two drives connected to two Ultra ATA cables, you
must set the jumpers on each drive to the single setting when available,
or the master setting when not (Figure 3). When connecting three or
four drives to two Ultra ATA cables, you must set the jumpers on two
drives to the master setting, and to the slave setting on the other drive(s)
(Figure 3).
jumper block
jumper block
Figure 2
One Cable Two Cables
Three
Drives
Four
Drives
Two
Drives
One
Drive
—
—
master, slave
single
(or master)
master, master,
slave
master, master,
slave, slave
master (or single),
master (or single)
—
Drive Jumper Settings
Figure 3
. Support Note: Refer to the hard drive user’s manual for jumper
setting information specific to your drives. Alternately, you may find
jumper setting information printed on your hard drives’ labels. Make sure the
drives are oriented the same way as the illustration before moving jumpers.
Support Note: Technical knowledge may be required to gain access to
the drive expansion bays in certain computer models. We recommend
you first consult your computer’s user manual. If you feel you are unable to
install the computer hardware, contact a qualified technician.
Support Note: Most hard drives are factory preset for use as a single
or master drive. To change the setting, you will need to reconfigure the
hard drives’ jumpers. Be sure the jumpers are configured properly, otherwise,
your computer may not boot, or your new drives may not be recognized.
host
connector
(blue)
connects to
Tempo Trio
slave
connector
(gray)
master
connector
(black)
40-pin/80-wire Ultra ATA cable
Figure 1
Hardware Installation Steps
