PN# 500-10100
Page 3 Rev. D, 06/11

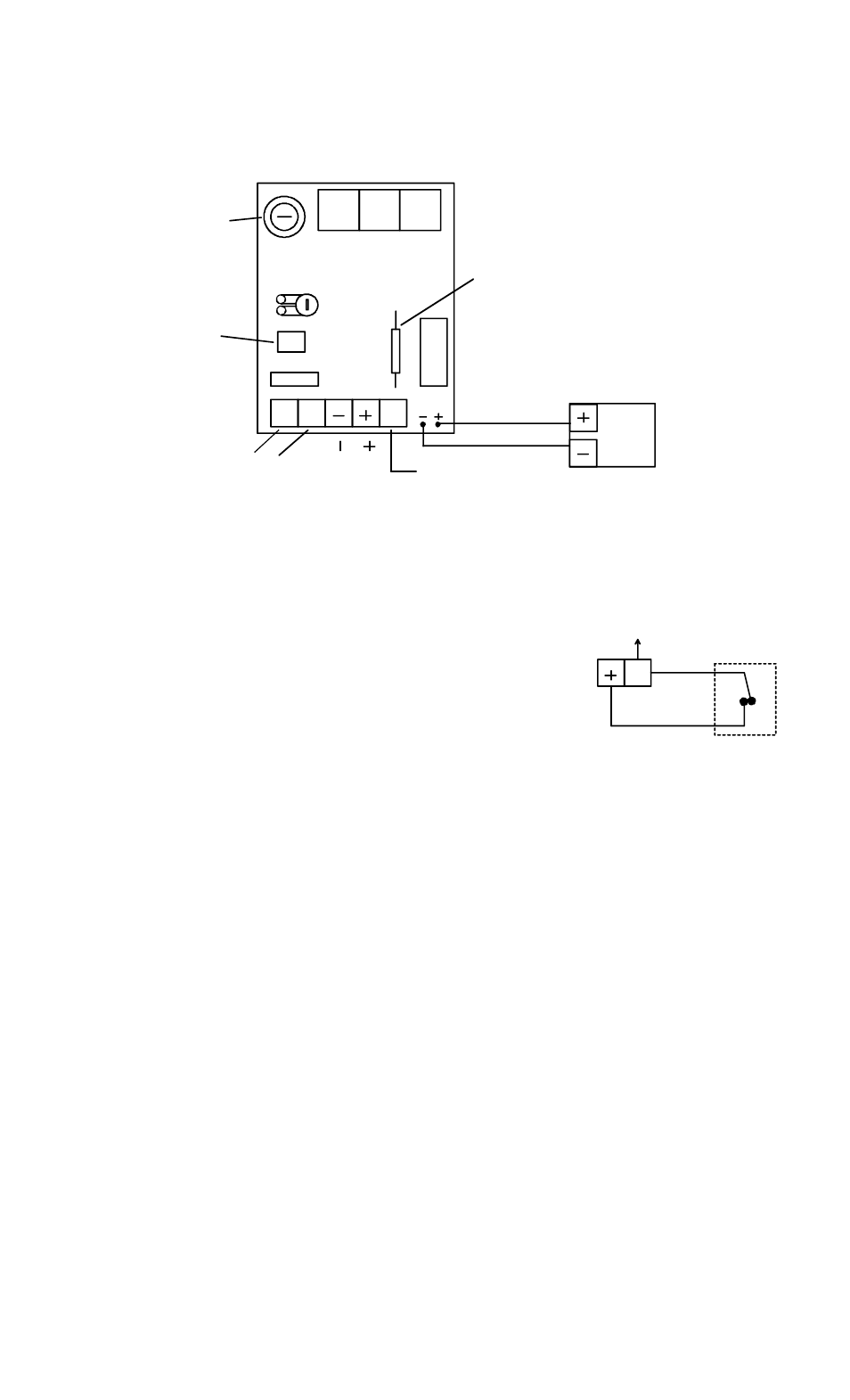

FIG. 2: WIRING
1 2 3
AC F AC
RED
BLACK
HO
T
NE
UT
GR
ND
110-120 VAC
LINE VOLTAGE
FUSE (1AMP)
VOLTAGE
ADJUST
LOW VOLTAGE AC
FROM TRANSFORMER
UNCONNECTED
TERMINAL FOR
SWITCH HOOKUP
OUTPUT
DC DC
BATTERY
PACK
2.5 AMP POLYSWITCH
BREAKER
CONNECTOR
TO POWER
ON LED
NOTE: THIS DRAWING SHOWS THE
BPS SERIES. THE PM SERIES HAS
NO LINE VOLTAGE INPUT, FUSE OR
CONNECTOR TO POWER ON LED
3.5 EMERGENCY RELEASE
Emergency release of DC output at the power supply is most
easily accomplished by using the unconnected "F" terminal.
Connect the NC contacts of the release switch between "+"
and "F" and then connect the load to "-" and "F". When the
emergency release contacts open, all DC power will be cut
off. When the connection is to a UL listed fire alarm system,
use auxiliary latching normally closed contacts. Do not
use "trouble" contacts. Note the drawing to the right.
4. MAGNACARE  LIFETIME REPLACEMENT WARRANTY
For warranty information visit: www.securitron.com/en/site/securitron/About/MagnaCare-Warranty/
F
NORMALLY
CLOSED
SWITCH
CONNECT "+" DC
LOAD TO "F"
TERMINAL WHEN
ADDING SWITCH
FOR EMERGENCY
RELEASE
