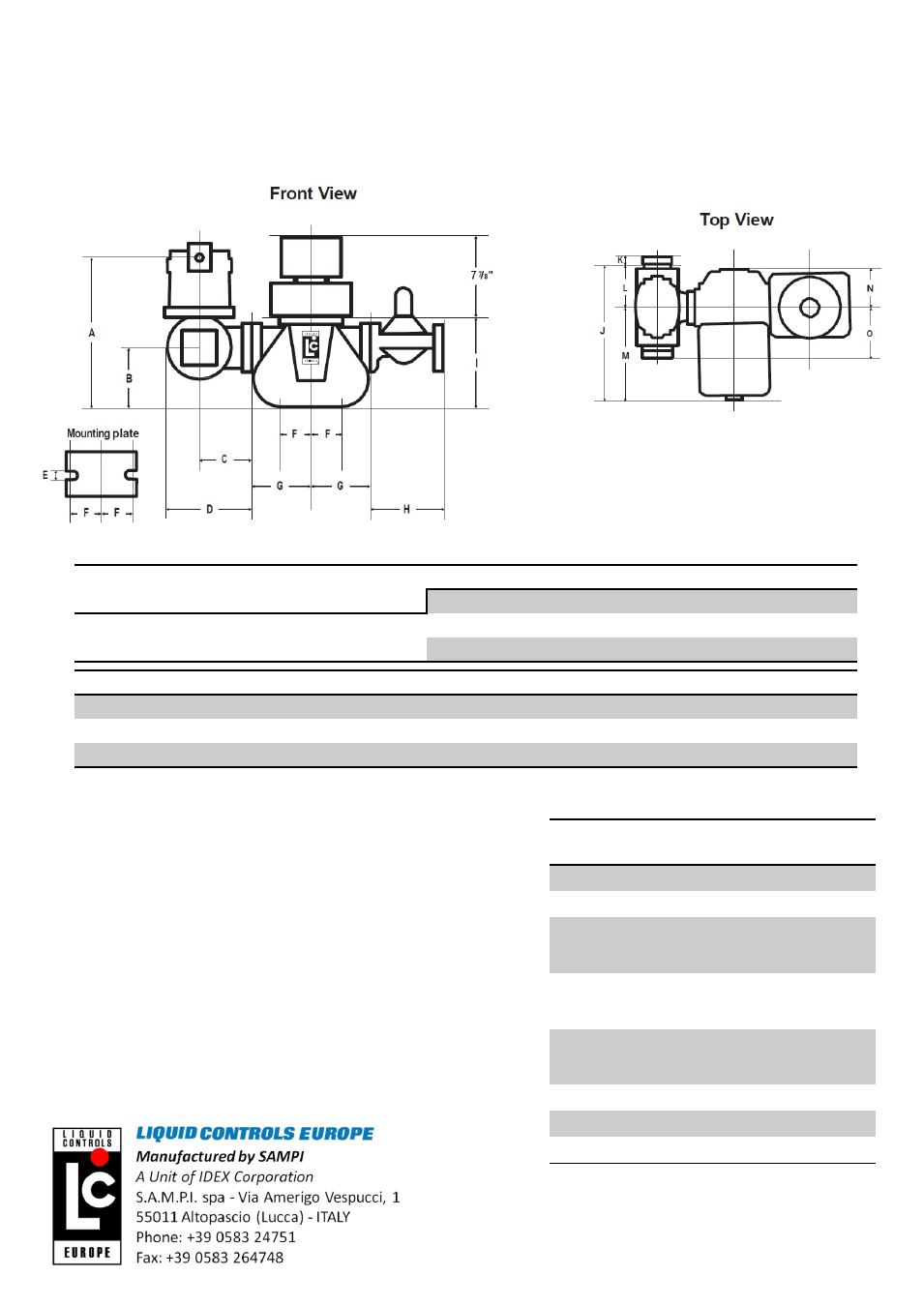

Dimensions: flow meters with electronic registration
Note: Dimensions shown are not for construction use. Consult factory when certified
engineering prints are required.
Construction and application classes
LC series M and MA PD meters are suitable for
metering a broad range of products as listed below.
The appropriate meter class can be used to specify a
desired meter by using the table on the next page of
this publication.
Class Description
Bearing
Material
1 Refined petroleum products Ni-Resist
2 Aviation and jet fuel Ni-Resist
3
Variety of product includes:
liquid sugars, sweeteners,
syrups, vegetable oils
Ni-Resist
4
Treated waters and solvents
where no red metals are
allowed
Carbon
8
Acid pH liquids includes: nitric,
phosphoric, glacial acetic acids,
citric juices, vinegar
Carbon
14 Crude oil Ni-Resist
16 General solvents Carbon
30 Herbicides Carbon
Model
Flange
size
Max nom.
Flow rate
Working
pressure
Net
weight
Dimensions
A B C D E F
M-5 1½” or 2”
250 l/min
(66 GPM)
10,5 bar
(150 PSI)
6,4 kg
(14 lbs)
in 14.2 5.3 4.1 6.8 .56 1.9
mm 360 135 105 172 14 48
Dimensions
G H I J K L M N O
in 4.9 8.3 8.6 13.9 .9 4.7 9.2 3.2 4.6
mm 125 213 219 352 24 119 233 81 116
