SAMPI Pulse Output Device (POD) User Manual
Pulse output device (pod) specifications sheet, Features

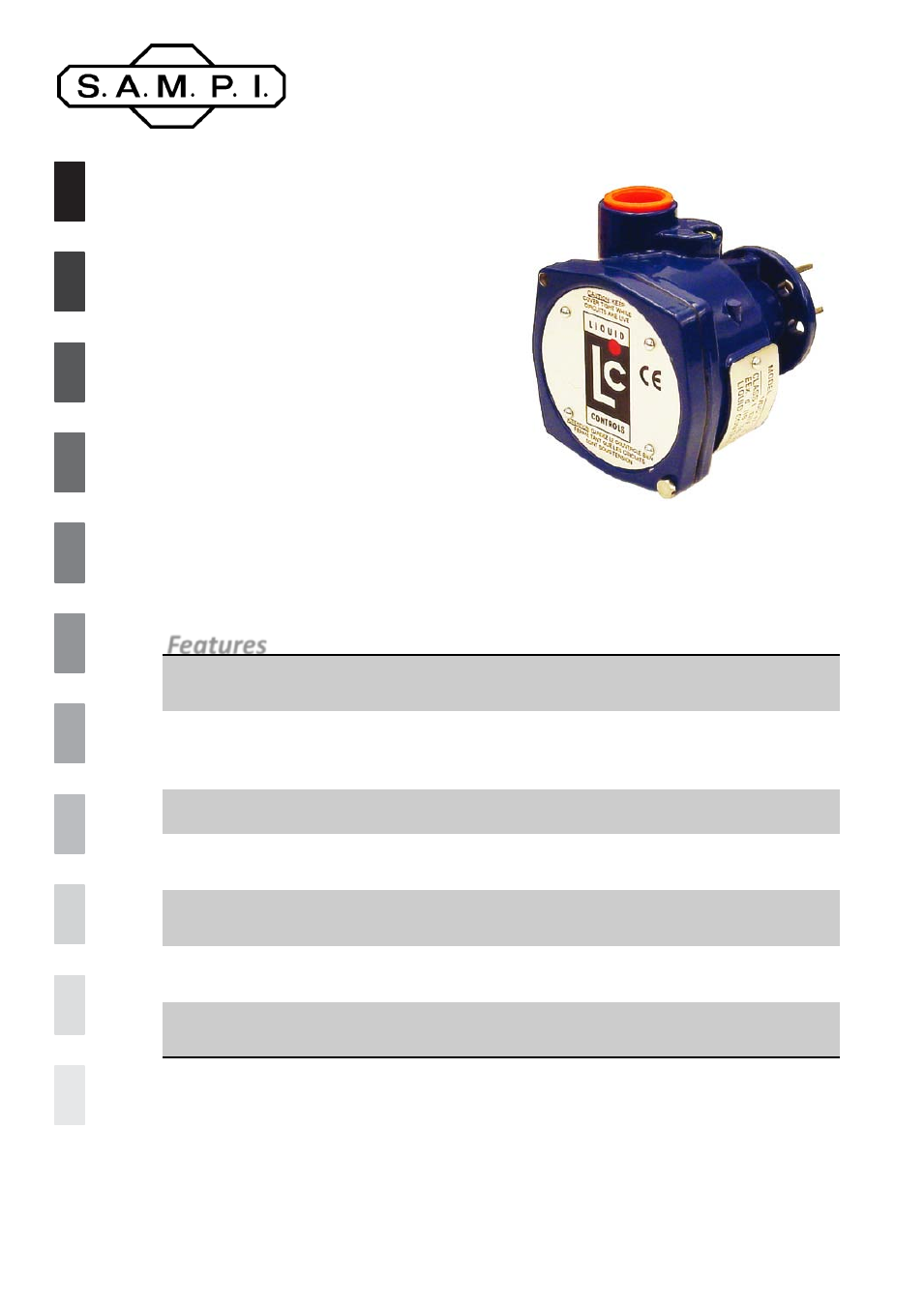

The SAMPI Pulse Output Device (POD)
converts the rotary motion of the Positive
Displacement Flow Meter into electronic
pulses. This allows the meter to interface
with a wide variety of electronic monitoring
devices and control equipment. The POD
mounts directly to the front cover of any
SAMPI/LC meter in place of the packing
gland. The motion of the meter’s blocking
rotor is magnetically coupled through a
stainless steel wall to the electronics
compartment of the POD. This eliminates the
dynamic seal of the packing gland and
isolates the electronics from the process fluid
in the meter.
Pulse Output Device (POD)
Specifications Sheet
Features
Glandless Drive
-No dynamic seals to fail or leak
-Meets current environmental standards
Pulse Output
-The unscaled output easily adapts to remote totalizers, batch
controllers, computers, PLC’s and other pulse receiving devices
-No amplifier or signal conditioner is required
Materials
All wetted parts are in 316 stainless steel or equivalent
Weight & Measures
Requirements
Housing cover has a ready made location for lead wire seal
Pressure Rating
Process wetted portion carries 24 bar (350 PSI) working
pressure rating. Burst pressure exceeds 121 bar (1750 PSI)
Explosion Proof
Rating
II 2G Eexd II B T6, LCIE04ATEX6033
Connections
½” NPT conduit port with a removable screw terminal block for
all connections
