Chapter 3
Disassembling the External Modules
Disassembling the HDD Module
1.

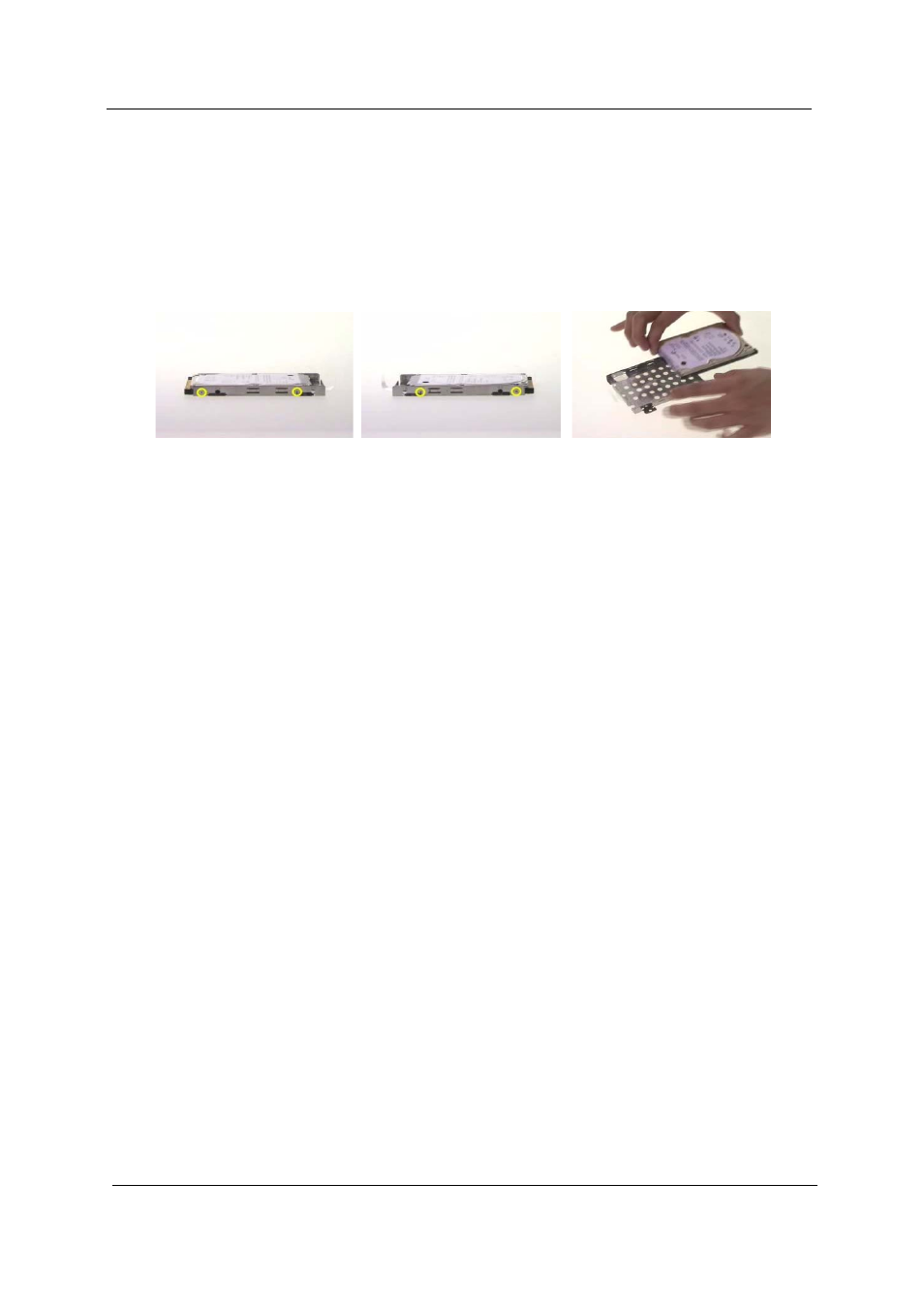

Remove the two screws holding the HDD bracket on one side.
2.
Remove another two screws holding the HDD bracket on the other side.
3.
Then take the hard disc drive out from the HDD bracket.
