Bottom view – Acer 2410 User Manual
Page 13
Chapter 1
5

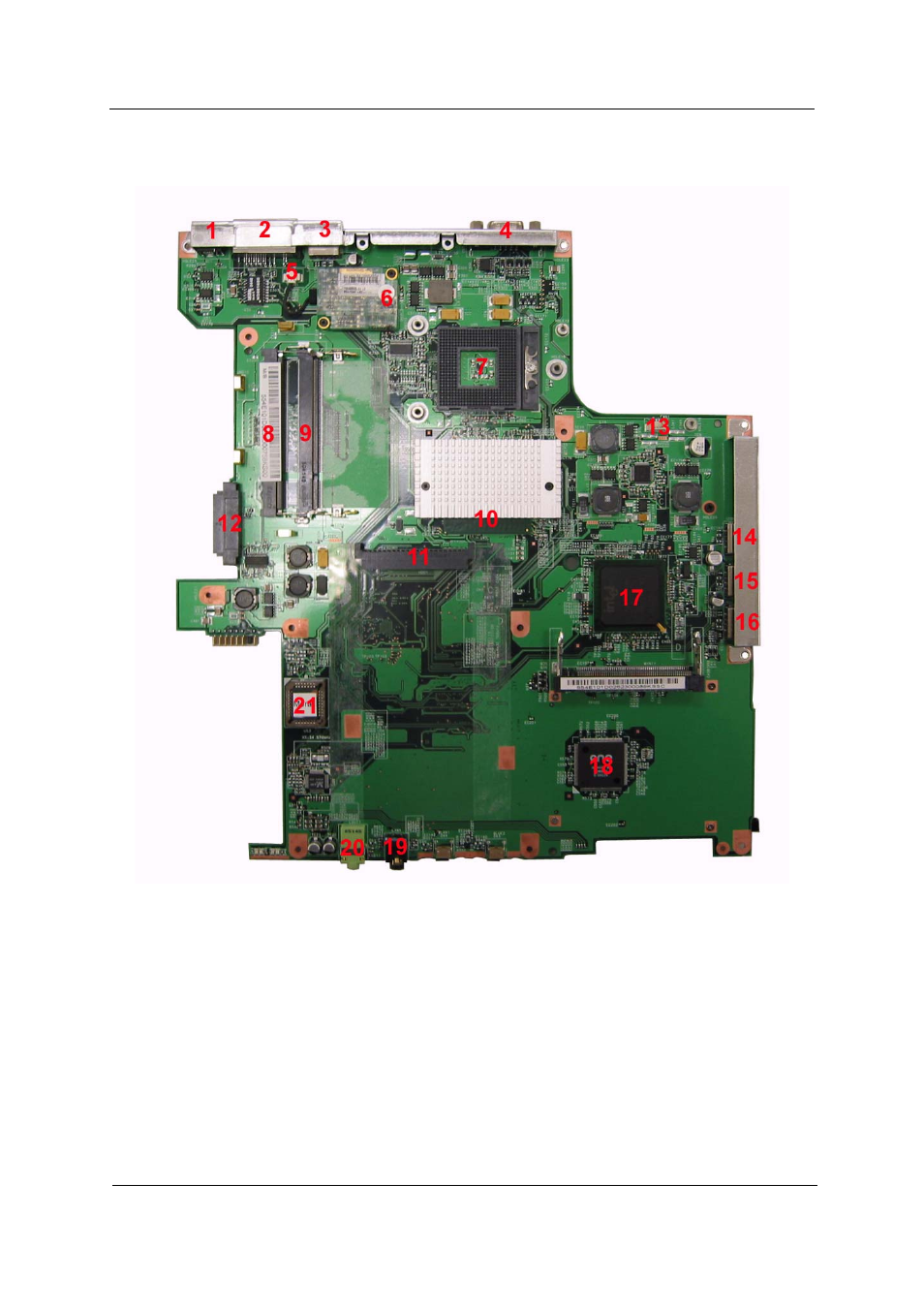

Bottom View
NOTE: This is engineering sample. The image above may not be exactly the same as the real main board you
get.
1
DC1
Power Jack
12
ODD1
ODD Connector
2
LAN1
Ethernet Port+Modem Jack
13
FAN1
Fan Connector
3
USB1
USB port
14
USB2
USB Port
4
CRT1
External Display Connector
15
USB3
USB Port
5
MDCW
1
Modem Cable Connector
16
USB4
USB Port
