Disassembling the lcd module – Acer 2410 User Manual
Page 59

Chapter 3
53

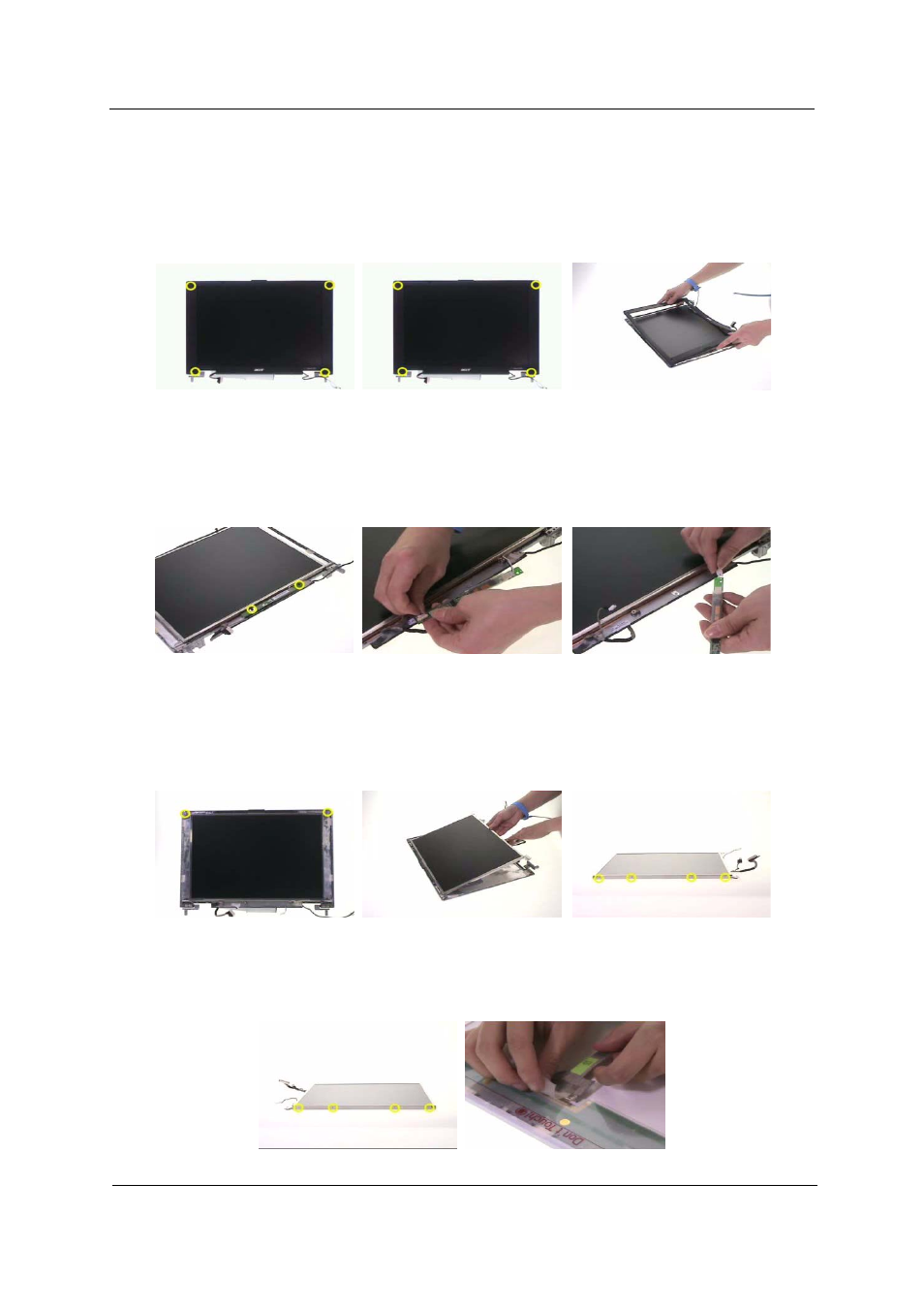

Disassembling the LCD Module
1.
Remove the four screw caps as shown.
2.
Remove the four screws holding the LCD bezel.
3.
Then detach the LCD bezel from the LCD module.
4.
Remove the two screws fastening the LCD inverter.
5.
Take out the LCD inverter from the LCD cover, then disconnect the LCD cable from the inverter.
6.
Disconnect the inverter cable and remove the inverter.
7.
Remove two screws fastening the LCD assembly.
8.
Take out the LCD assembly from Remove another screw holding the LCD bracket on the other side.
9.
Remove the four screws fastening the LCD left bracket then remove it.
.
10. Remove the four screws fastening the LCD right bracket then remove the bracket.
11. Disconnect the LCD cable from the LCD then remove the cable.
