Series 7100 Liquid Level Sensor Part Numbers
M Style
Span (in) 55 – 288 289 – 480 481 – 600
*Dimension (in) 6.00 8.00 9.00
Kynar is a trademark of EFL ATOCHEM NA • Teflon is a trademark of Dupont
7100 048 R5
Liquid Level
Sensor
PPM Output
Span
(Active Length)
Enter span required in
one inch increments
Number of Thermisters
R1 Single temperature zone
R5 Five temperature zones
Note: If one thermister is ordered,
it will be placed 18” from the
bottom of the sensor.
M
Type Connector Style
M Stainless steel tube w/mini-connector
R Stainless Steel tube with right angle
NPT fitting & 2' leads
K Flexible Kynar ® tube with male NPT
Kynar conduit fitting and 2' potted
Teflon
® cable
X
Tank
Mounting Method
X None
F LXXX
Overall Length
(optional)
Insert overall length in
inches in place of XXX.
Data below includes nomi-
nal null and dead zones.
Longer custom lengths are
available in 1’ increments.
Number of Floats Sensed
F1 One float
F2 Two floats: 1 product, 1 interface

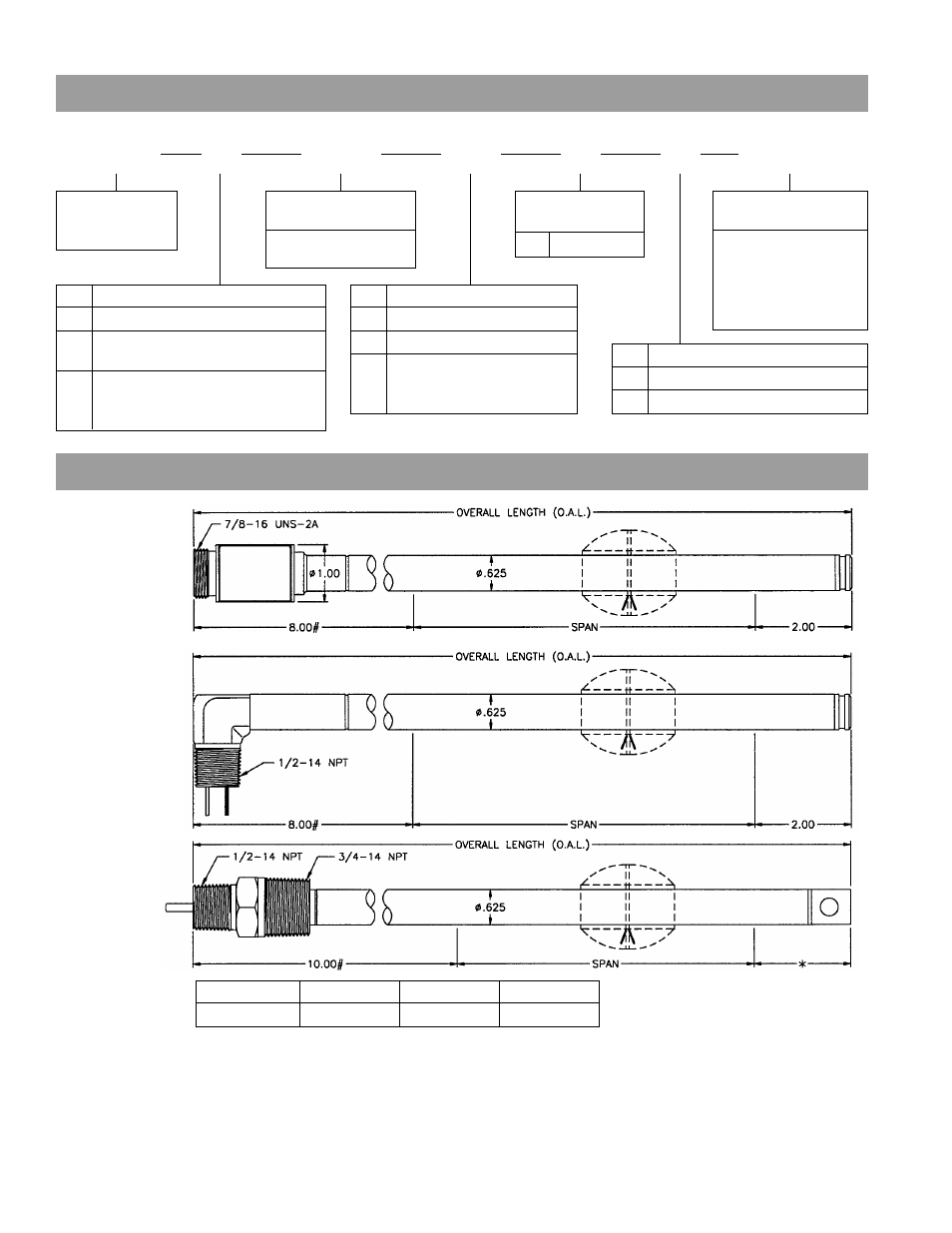

Engineering Data
R Style
K Style
