Setting the Jumpers Without Circuit
Board
NOTE: The following procedures must be
performed by a qualified electrician familiar
with the construction and operation of this type
of machinery.
1. Disconnect power to the machine.
2. Unlock and raise the top cover.
3. Remove the control module cover.
4. The mechanical timer is located in the middle of
the control module. The odd-numbered side of
the timer is used to change the duration of
individual cycle steps. Refer to Figure 2.
Eleven possible jumper configurations are
available for changing the cycle time. Refer to
Table 3.

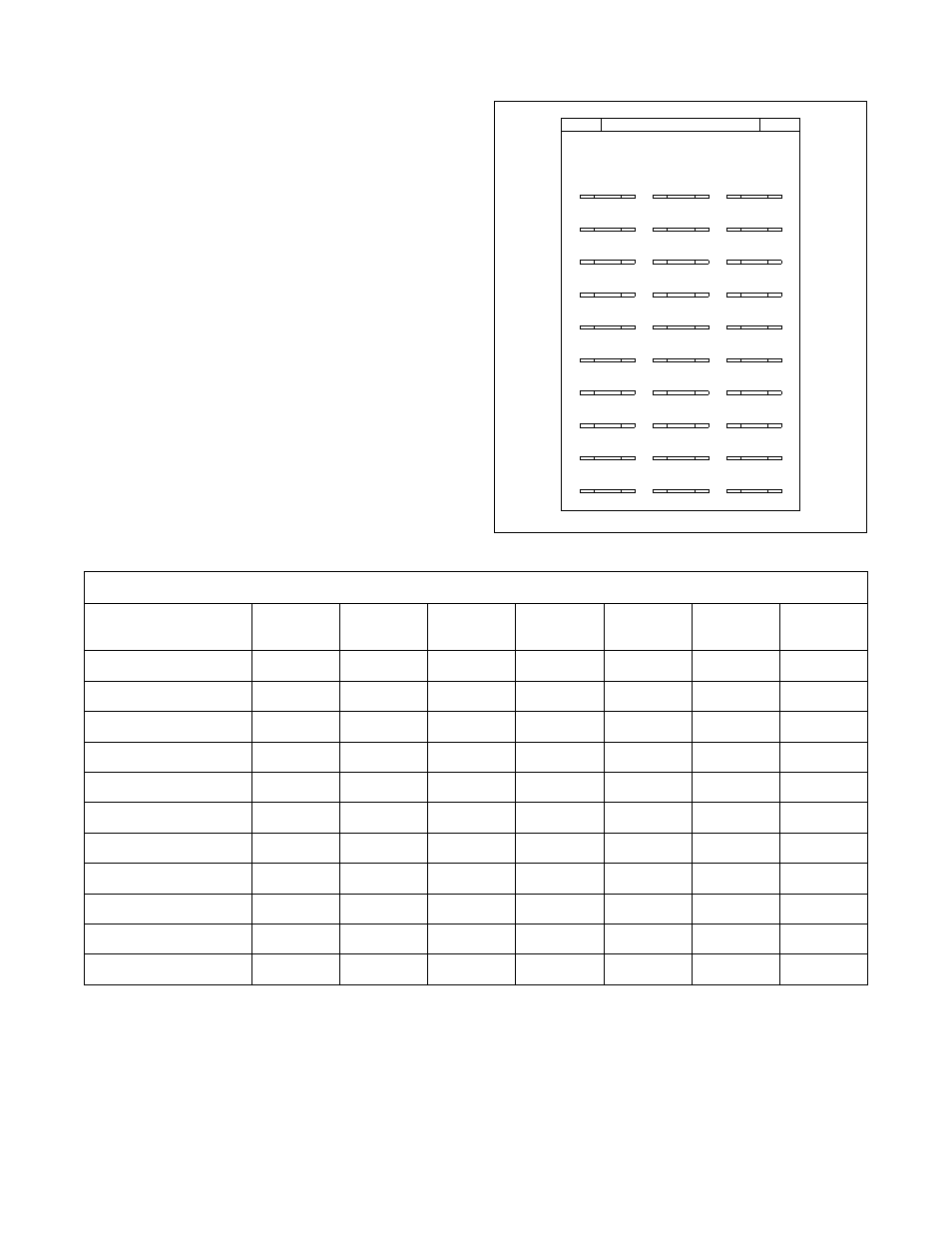

Figure 2
1b
1
1a
3b
3
3a
5b
5
5a
7b
7
7a
9b
9
9a
11b
11
11a
13b
13
13a
15b
15
15a
17b
17
17a
19b
19
19a
Mechanical Timer Cycle Time Options
Jumper Setting
PreWash
Wash
Rinse 1
Rinse 2
Rinse 3
Final
Spin
Cycle
Time
None
4
8
1.5
1.5
1.5
4
27.5
1a to 3a
4
4
1.5
1.5
1.5
4
23.5
1a to 3a to 3b
--
4
1.5
1.5
1.5
4
18.5
1a to 3a to 3b to 5b
--
4
1.5
1.5
1.5
2
16.5
1a to 3a to 5a*
2
4
1.5
1.5
1.5
4
21.5
1a to 3a to 5a to 5b
2
4
1.5
1.5
1.5
2
19.5
1a to 3b
--
8
1.5
1.5
1.5
4
22.5
1a to 3b to 5b
--
8
1.5
1.5
1.5
2
20.5
1a to 5a
2
8
1.5
1.5
1.5
4
25.5
1a to 5a to 5b
2
8
1.5
1.5
1.5
2
23.5
1a to 5b
4
8
1.5
1.5
1.5
2
25.5
*Factory Setting
Table 3
