Ronan X54-3412 - Manual (Page 2)

Page 2 of 2 Rev. 0 Ronan Engineering Company
Ph: 800-327-6626 Fax: 818-992-6435 E-mail: [email protected] Web: www.ronan.com

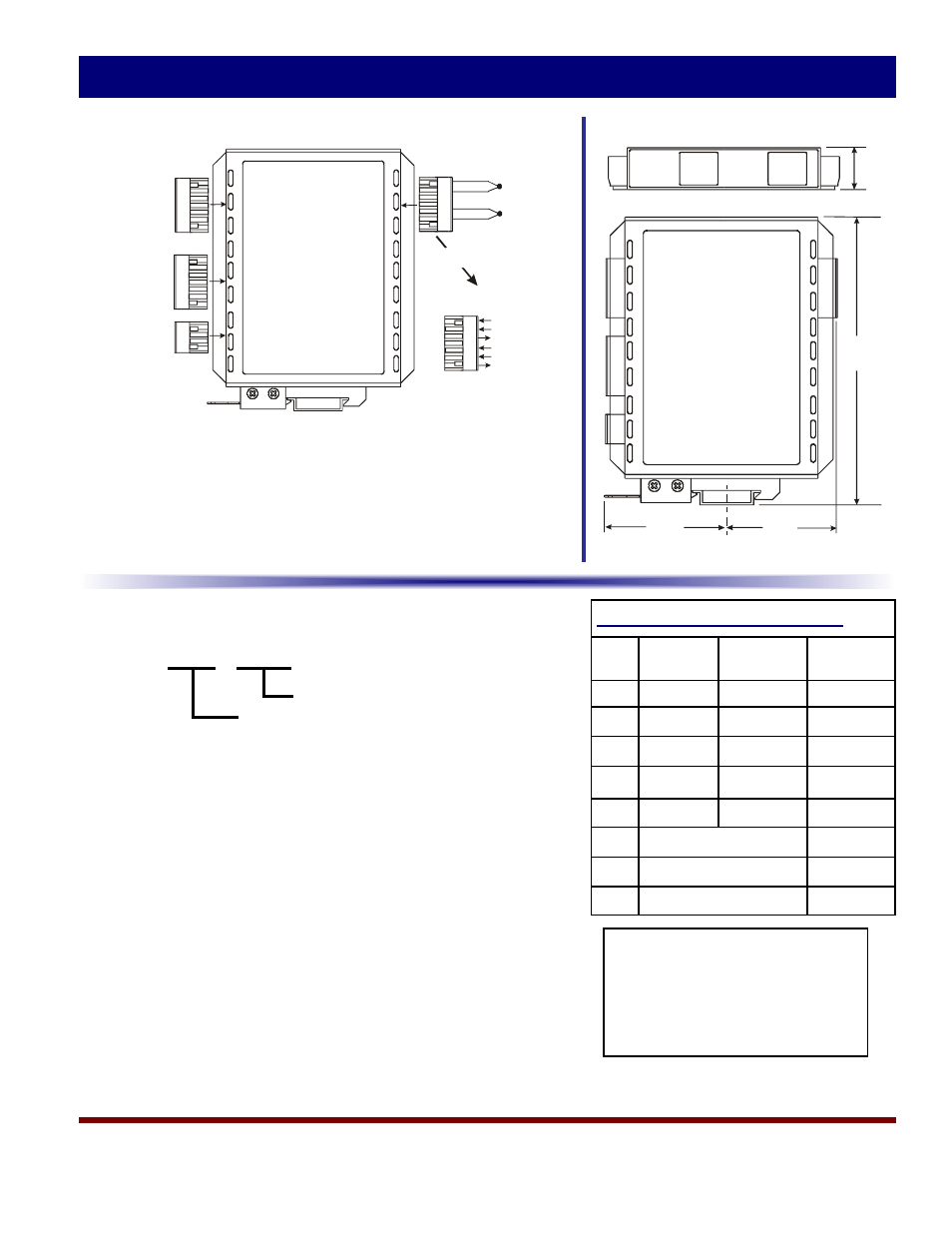

TERMINAL ARRANGEMENT:
X54-3412
Dual Channel Thermocouple, mV, Volt, mA Alarm Trip (continued)
MECHANICAL DETAIL:
Above ranges are standard offerings for fast-
est delivery. Contact Ronan for price and
delivery of non-standard ranges.
These standard ranges can be re-configured
in the field or pre-configured at the factory to
the customer’s specific thermocouple type
and temperature range.
ORDERING INFORMATION:
X54-3412-(I) (II) - (I ) (II)
Channel #2
Channel #1
I = input type (E, J, K, R, S, or T) T/C
(V) Volt or mV
(I) milliamp (w / wo loop power option)
II = Standard Range code (A - H) or
specify special range; e.g. 0-750°F = (0/750)
or special range; e.g. 0-25 mvdc = (0/25mvdc)
Example: Std. Range 0-2500°F linearized for type K T/C
X54-3412-KD-KD
Example: Special Range 0-750°F linearized for type J T/C
X54-3412-J(0/750°F) - J(0/450°F)
Accessories:
D2-35X7.5 35 mm X 7.5 mm “U” style DIN rail, sold per foot
*
1.) Plug-in connector design simplifies installation and
maintenance.
2.) Use up to 12 awg wiring.
3.) When inserted, case back cover provides a mechanical
cover for connector screws (as required by European
standards).
STANDARD INPUT RANGES:
ºF or input
range
ºC or input
range
Sensor/Input
Types
A -450 to 0 -267 to -18 T, K, E
B 0 to +750 -18 to +399 J, T
C 0 to +2100 -18 to +1149 J, E
D 0 to +2500 -18 to +1371 K
E 0 to +3200 -18 to +1760 R, S
F 4-20 mA wo / loop power I
G I 4-20 mA with loop power
H 1 - 5 vdc V
0.850”
21.6mm
2.47”
62.7mm 2.23”
54.6mm
5.80”
147.3mm
C L
DIN Rail
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
J2*
J4*
J5*
J2*
1
2
3
4
5
6
J1*
Ch1
Ch2
Thermocouple
Inputs
1
2
3
4
5
6
Ch1
Ch2
24 vdc loop power
24 vdc loop power
Inputs
MV, volt & mA
or
+
-
+
-
+
-
+
-
Outputs
18-30 vdc
Power
Input
+
-
GND
NC
NO
C
NC
NO
C
NC
NO
C
NC
NO
C
B Setpt.
A Setpt.
B Setpt.
A Setpt.
Ch1
Ch2
