WARNING

▲

Disconnect hoses with extreme caution!
All hoses may contain liquid refrigerant
under pressure.

Read and follow all

warnings at the beginning of this manual
before operating the unit.

2. Disconnect the hose from the tank.

3. Release the retaining strap buckle.

4. Loosen the wing nut on the hold-

down bracket and remove the empty
tank from the platform.

USING THE HEATER BLANKET

A heater blanket speeds the transfer of
refrigerant and assures a complete
charge by raising the pressure within the
refrigerant tank.

1. Wrap the heater blanket around the

refrigerant tank, secure it with the
Velcro

strap, and plug its power cord

into the heater outlet on the bottom
of the control box (right receptacle).

2. Turn on the MAIN POWER switch

on the front of the station.

The heater blanket is on whenever the
station’s MAIN POWER switch is on,
eliminating the need for manual control.
You can extend the life of the heater
blanket by unplugging the heater when
it’s not being used or turning off the
MAIN POWER switch.

•Refillable tanks — Leave the tank
upright, attach the yellow charging
hose to the blue LIQUID valve on the
tank, and open the blue valve.

2. Open the ball valve on the yellow

charging hose (the open position runs
parallel to the hose).

Note: Use a maximum tank size of 50
pounds (23 kilograms) with this charging
station.

3. Fasten the tank securely with the

tank hold-down bracket. Place the
heater blanket around the center of
the tank, and fasten it securely (see
“Using the Heater Blanket”).

4. Secure the retaining strap around

the tank.

Note: Adjust the strap so that it comes in
contact with the tank, but is not tight
around the tank .

5. If the tank was changed after press-

ing the HOLD key to interrupt the
cycle, press the CONT key or RESET
CYCLE key, depending on the
operation you require next.

REMOVING AN EMPTY TANK

Follow these steps to remove an empty
refrigerant tank from the charging
station.

1. If the station is operating, press the

HOLD key. You do not need to turn
off the MAIN POWER switch.

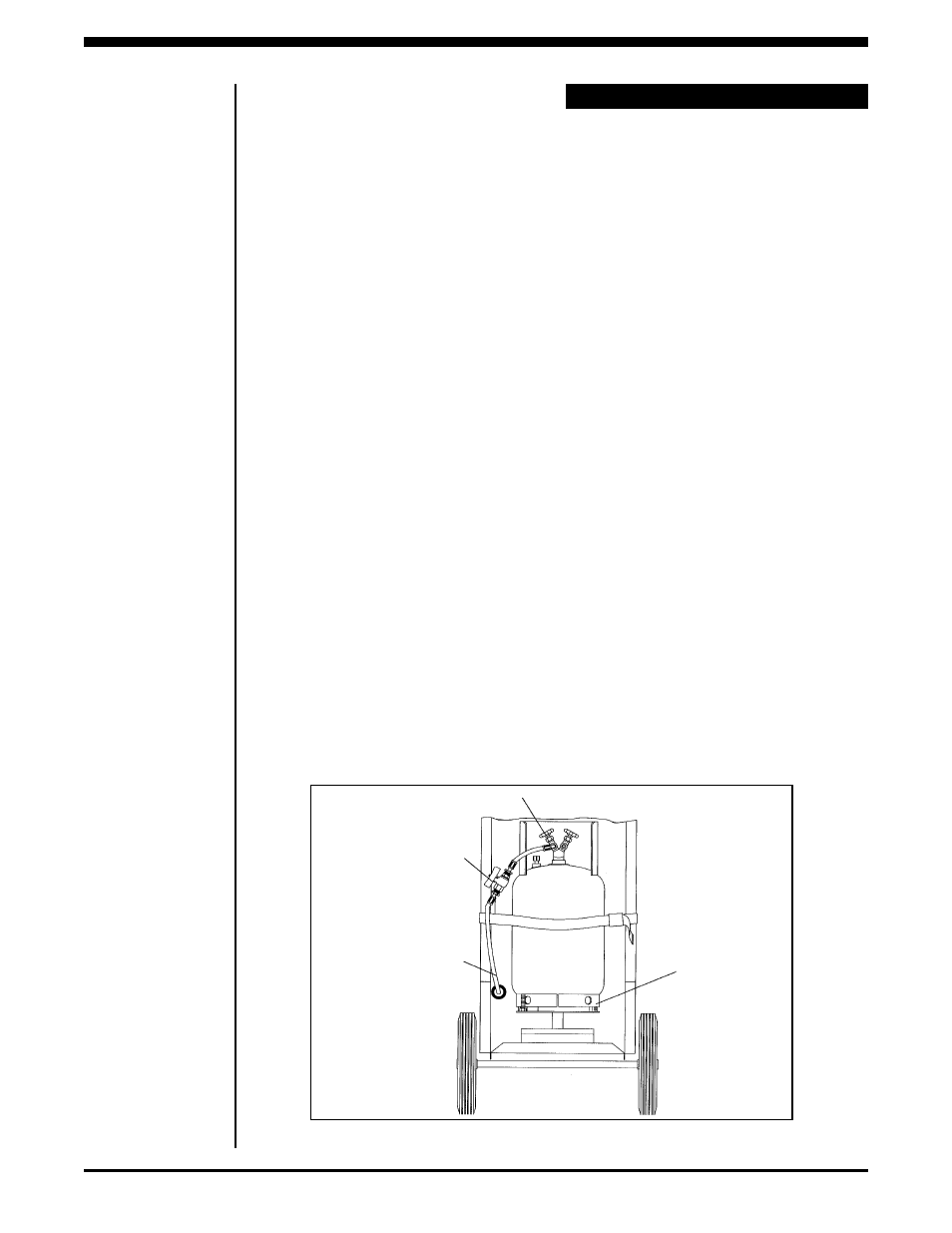

Diagram of Refillable Tank Installation

Platform

Mount

Ring

Blue LIQUID Valve

Ball Valve

Yellow
Hose To
Refrigerant
Solenoid

Bulk

Refrigerant

Tank

(Not Included)
