5
560826 Rev. D, August 23, 2013
Setup
Unpack the Accessory Kit
Unpack the accessory kit from the bag, and
remove the plastic packaging. The kit consists of
• A calibration weight.
• Vacuum pump oil, oil filler cap, and tube.
• Plastic pouch containing a warranty card (to
be completed and mailed), applicable MSDS
sheets, a service center listing, and an envelope
of Mobile Air Conditioning Society (MACS)
information.
Important: You must complete and mail
the MVAC Certification Form and your
technicians must be certified with the
Environmental Protection Agency (EPA)to
operate this equipment.
Power Up the Unit
1 . Unwind the power cord from the handle, and
plug it into a correct voltage outlet. See Figure
1 .
2 . Turn on the main power switch. The first time
the unit is powered up, it displays the initial
setup mode.
Select a Language – English
Seleccionar Idioma – Espanol
Selection Langue – Francais
The operator may choose to have prompts
displayed in one of three languages: English,
Spanish, or French.
1 . Use the UP or DOWN arrow key to toggle
through the choices of English, Spanish, or
French. Refer to Figure 2.
2 . Press START / YES to select the displayed
language.
Select Operating Units
The operator may choose to have test results
displayed in Imperial (lb., or lb. and oz.) or Metric
(kg) units.
1 . Use the UP or DOWN arrow key to toggle
through the choices of IMPERIAL UNITS or
METRIC UNITS.
2. Press START / YES to select the displayed
operating unit choice.

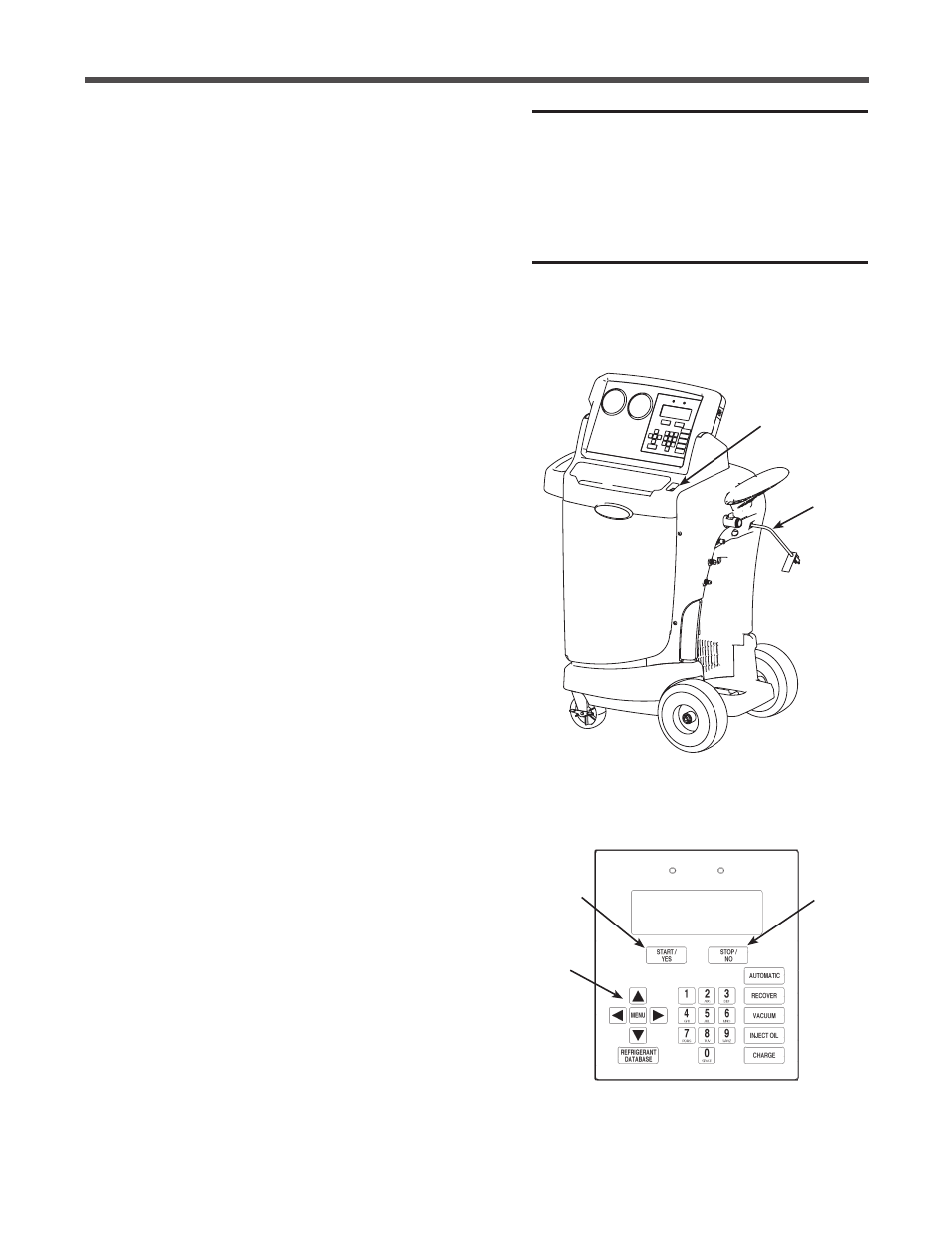

Arrow
Keys
Start / Yes
Button
Figure 2
Stop / No
Button
Power
Cord
Main
Power Switch
Figure 1
CAUTION: R-134a systems have
special fittings (per SAE specifications)
to avoid cross-contamination with R-12
systems . DO NOT adapt your unit for a
different refrigerant — system failure
will result .
