AA-82-01.3 6 6 6 6 6
REA III 100kV Automatic Applicator - Atex
REA III 100kV Automatic REA III 100kV Automatic REA III 100kV Automatic REA III 100kV Automatic REA III 100kV Automatic
Applicator 70393 A
Applicator 70393 A Applicator 70393 A Applicator 70393 A Applicator 70393 ATEX Product TEX Product TEX Product TEX Product TEX Product
Marking Definitions Marking Definitions Marking Definitions Marking Definitions Marking Definitions
Ex Certificate Number: Sira 08ATEX5040X
Sira = Notified Body performing EC-type
examination
08 = Year of certification
ATEX = Reference to ATEX Directive
5 = Protection Concept Code (code 5 is titled
Encapsulation)
040 = Document serial number
X = Special conditions for safe use apply
Special conditions for safe use: The REA-III 70393
Automatic Applicator shall only be used with
associated 76447-XX, 76045-XX, LEPS5000-04,
LEPS-5002-00, and 78789-02 HV Control Units.
Product Marking Product Marking Product Marking Product Marking Product Marking
II 2 G II 2 G II 2 G II 2 G II 2 G
Ex = Specific marking of explosive protection
II = Equipment Group hazardous area charac-
teristics
2 = Equipment Category
G = Type of explosive atmosphere (gases, vapors,
or mists)
EEx 0.24mJ EEx 0.24mJ EEx 0.24mJ EEx 0.24mJ EEx 0.24mJ = The REA-III 70393 Automatic
Applicator is suitable for use in automatic spraying
installations complying with EN 50050 as they are
a Type A class with a discharge energy limit of
0.24mJ.

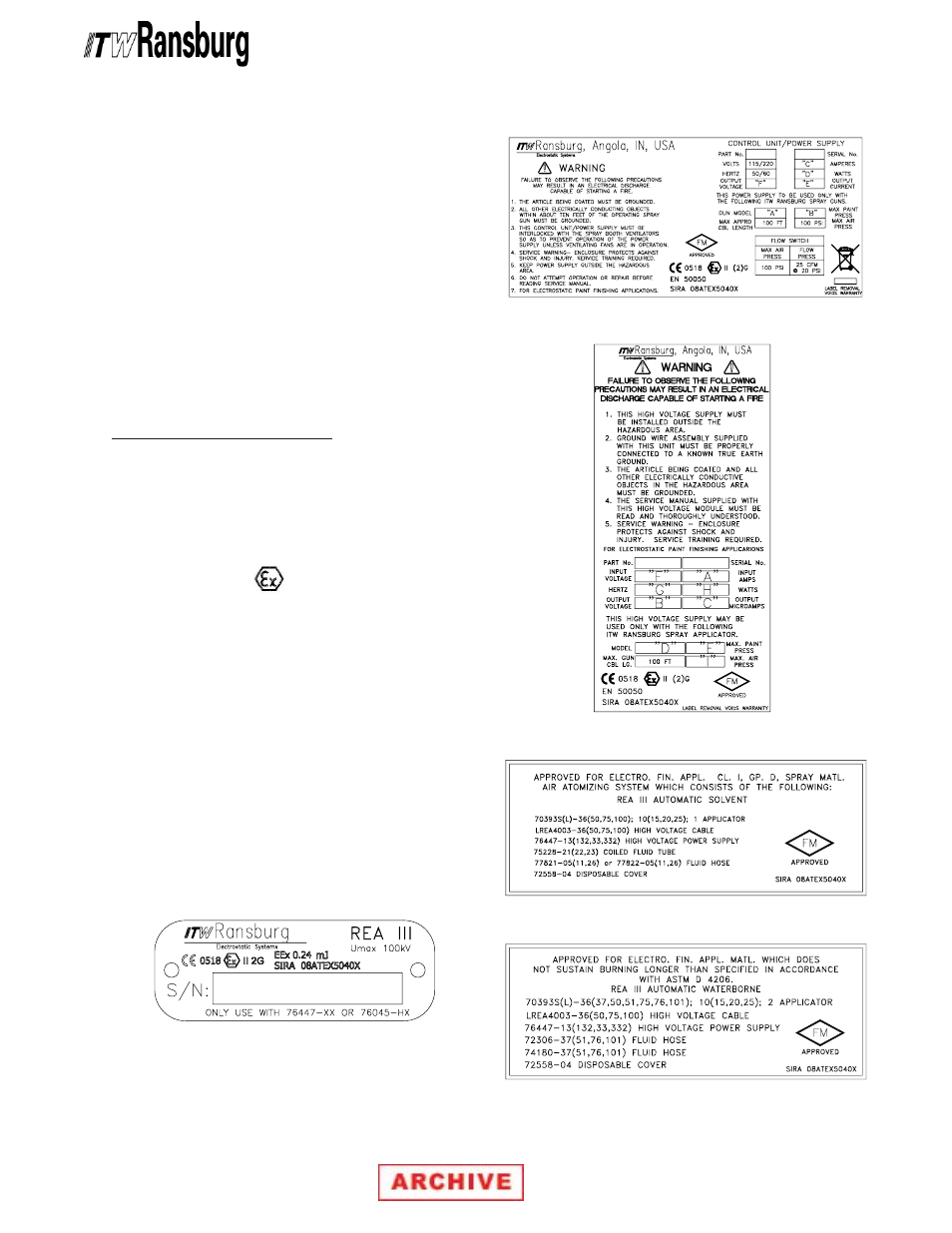

Label 19688 Label 19688 Label 19688 Label 19688 Label 19688
Label 72562 Label 72562 Label 72562 Label 72562 Label 72562
Label 76454 Label 76454 Label 76454 Label 76454 Label 76454
Label 76854 Label 76854 Label 76854 Label 76854 Label 76854
Label 76896 Label 76896 Label 76896 Label 76896 Label 76896
