M 9 6 8 4 9 6

TOOLS AND SUPPLIES REQUIRED

Adjustable Wrench

Channel Locks

Teflon Tape

Plumbers' Putty or
Caulking

Product names listed herein are trademarks of American Standard Inc. © A m e r i c a n S t a n d a r d I n c . 2 0 0 4

HOTLINE FOR HELP

For toll-free information and answers to your questions, call:

1 (800) 442-1902

Weekdays

8:00 to 7:00 p.m. Eastern Time

CANADA

1-800-387-0369 (TORONTO 1-905-306-1093)

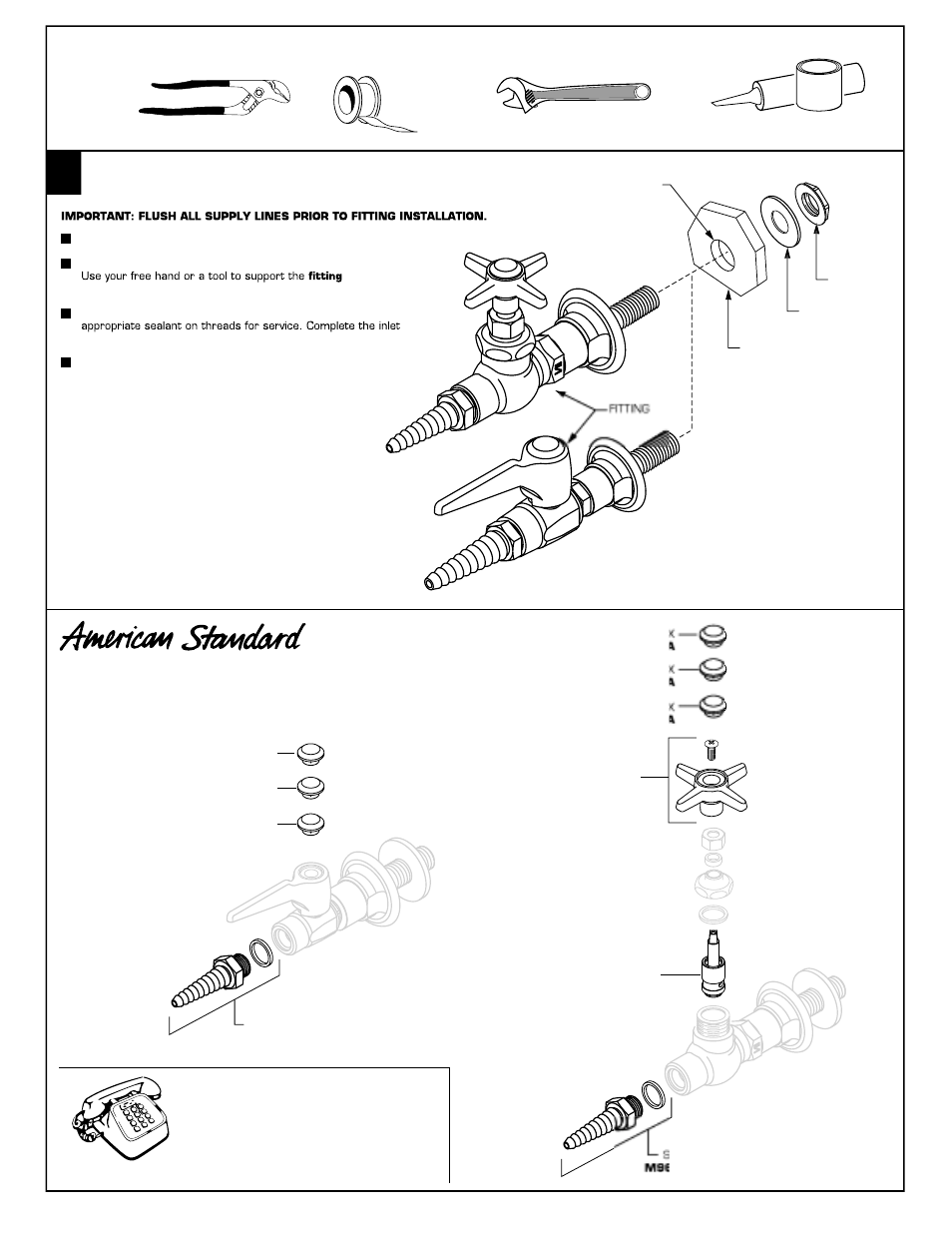

INSTALL FITTING

LOCK NUT

STEEL WASHER

MOUNTING HOLE

1-1/4" DIA. (32mm)

Remove lock nut and steel washer from fitting.

Align and mount fitting from the front side of the mounting surface.

body and install

steel washer and lock nut. Tighten the lock nut securely.

With fitting now firmly secured to the mounting surface Use

piping to the fitting. (See rough-in for piping requirements).

Turn service on to fitting and check for leaks.

WALL MOUNTING SURFACE

7274.580

7274.585

ERRATED TIPS

M962318-0020A

SERRATED TIPS

M962318-0020A

HANDLE

M962310-0020A

GAS INDEX

M962313-0070A

AIR INDEX

M962314-0070A

VAC INDEX

M962315-0070A

CARTRIDGE

M962336-0070A

AVAILABLE REPAIR PARTS
