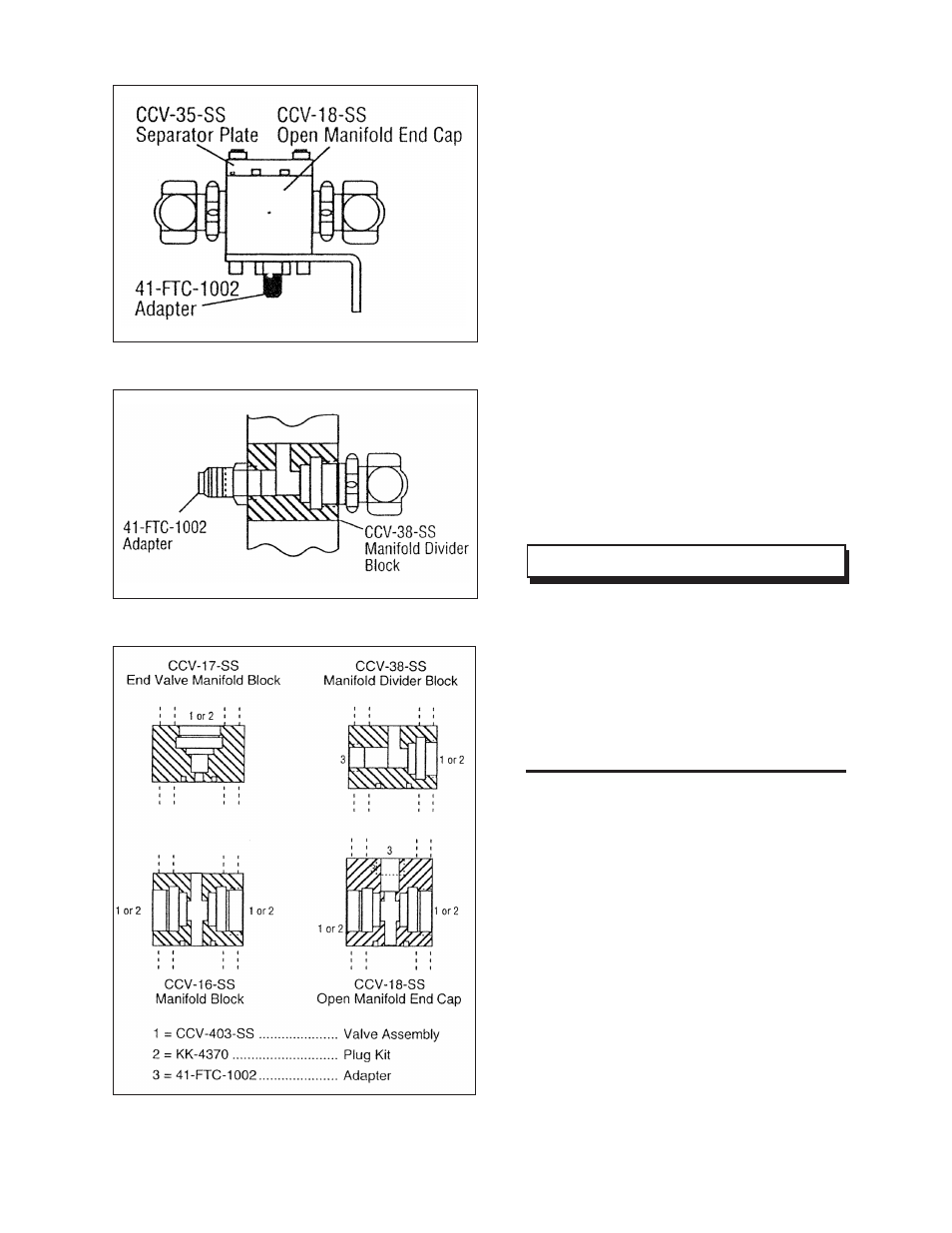

Figure 5: Two-Valve Manifold Assembly
Figure 6: Manifold Divider Block
Figure 7: Available Manifold Blocks
Figure 7 shows the four manifold blocks that can
be used in a manifold system. In addition, CCV-
36-SS separator plate (Figure 5) can also be used.
In Figure 7, shown by the block inlets/outlets, are
numbers indicating hardware be installed at these
locations. The dotted lines indicate the path of the
mounting studs that hold the blocks in place. The
o-ring slots are shown (o-rings are not included
on CCV-18-SS). O-rings are included in KK-4901
Manifold Assembly Kit.
KK-4901 Manifold Assembly Kit
This kit includes threaded rod, lock washers, nuts,
two (2) mounting brackets and twelve (12) o-rings
that will allow assembly of up to 25 valves in the
manifold assembly. A spanner tool, part CCV-7, is
also included in this kit. This tool inserts into any
one of the holes in the spanner nut and is used
to tighten or loosen the nut. This is convenient
in close clearances where a wrench may not fit.
>
Tighten CCV-403-SS valve assembly
and KK-4370 plug kit (when used) to
manifold using 132-156 lbs•in torque. DO
NOT OVER-TIGHTEN. Use a good quality
pipe sealant on all threads of air and fluid
connections. Do not use sealant or tape
on CCV-403-SS valve when asembling to
manifold.
NOTE
