RMA-303 Dual Purge Direct Charge - Parts
93 LN-9267-11.3

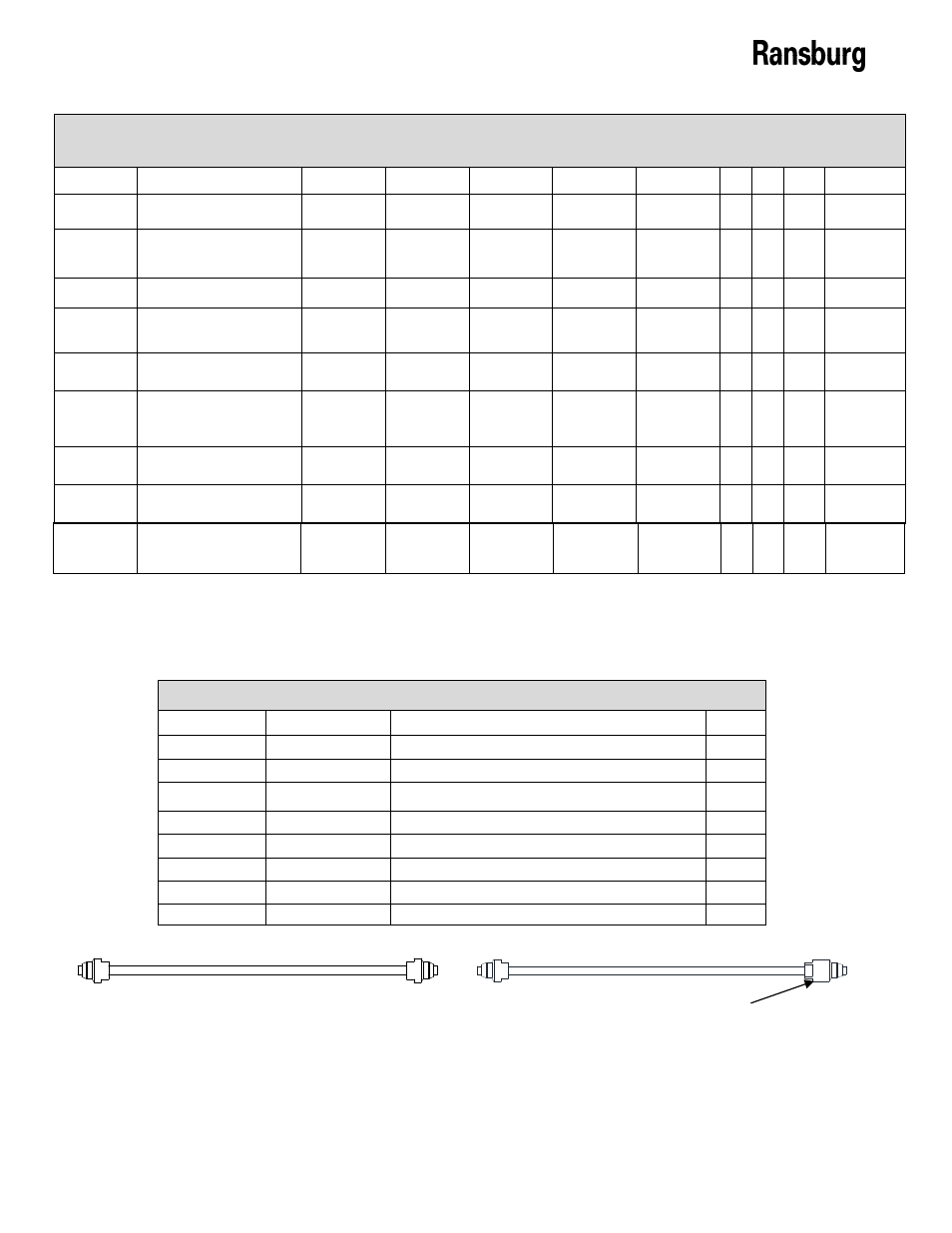

SHAPING AIR KIT ASSEMBLY PARTS BREAK-DOWN
Part # Description A B C D E N P R S
A12874-01 Direct Charge, 55mm A11244-01 A12872-00 - A12078-01 - - - - -
A12874-02
Direct Charge with Re-
pulsion Ring, 55mm
A11725-01 A12872-00 - A12078-01 A11945-02 - - - 3
A12874-03 Direct Charge, 30mm A11967-00 A12873-00 - A12066-01 - - 1 - -
A12874-04
Direct Charge with Re-
pulsion Ring, 30mm
A11967-01 A12873-00 - A12066-01 A11945-00 - 1 1 3
A12874-05
Direct Charge, Mono
Flex
A12068-01 A12083-01 - A12078-01 - - - - -
A12874-06
Direct Charge with Re-
pulsion Ring, Mono
Flex
A12068-02 A12083-01 - A12078-01 A11945-01 - - 1 3
A12874-08
Direct Charge, Dual
Flex
A12074-01 A12084-01 A12871-01 A12066-01 - 1 - - -
A12874-09
Direct Charge with Re-
pulsion Ring, Dual Flex
A12074-02 A12084-01 A12871-01 A12066-01 A11945-02 1 - 1 3
NOTE: Set screw for all shape air manifolds is A12253-00.
SHAPING AIR KIT - PARTS LIST
Item # Part # Description Qty
1 A Outer Shroud 1
2 B Shaping Air Ring 1
3 C Inner Shaping Air Ring N
4 D Turbine Retaining Ring 1
5 79001-11 O-Ring, Solvent Proof 1
6 79001-52 O-Ring, Solvent Proof P
7 E Repulsion Ring R
8 77580-08C Screw, 6-32X1/4" LG Button Cap Screw, SS S
NOTE -
A12290 – 02 Install between rear of turbine manifold and valve manifold assembly.
A12290 - 03 - Install between valve manifold assembly and shaping air manifold.
A12874-12
Direct Charge Dual
Flex
A13116-01 A13229-01 A13228-01 A12066-01 1 -
Longer Fiƫng
A12290-02 Cup Wash Line Assembly
A12290-03 Cup Wash Line Assembly
