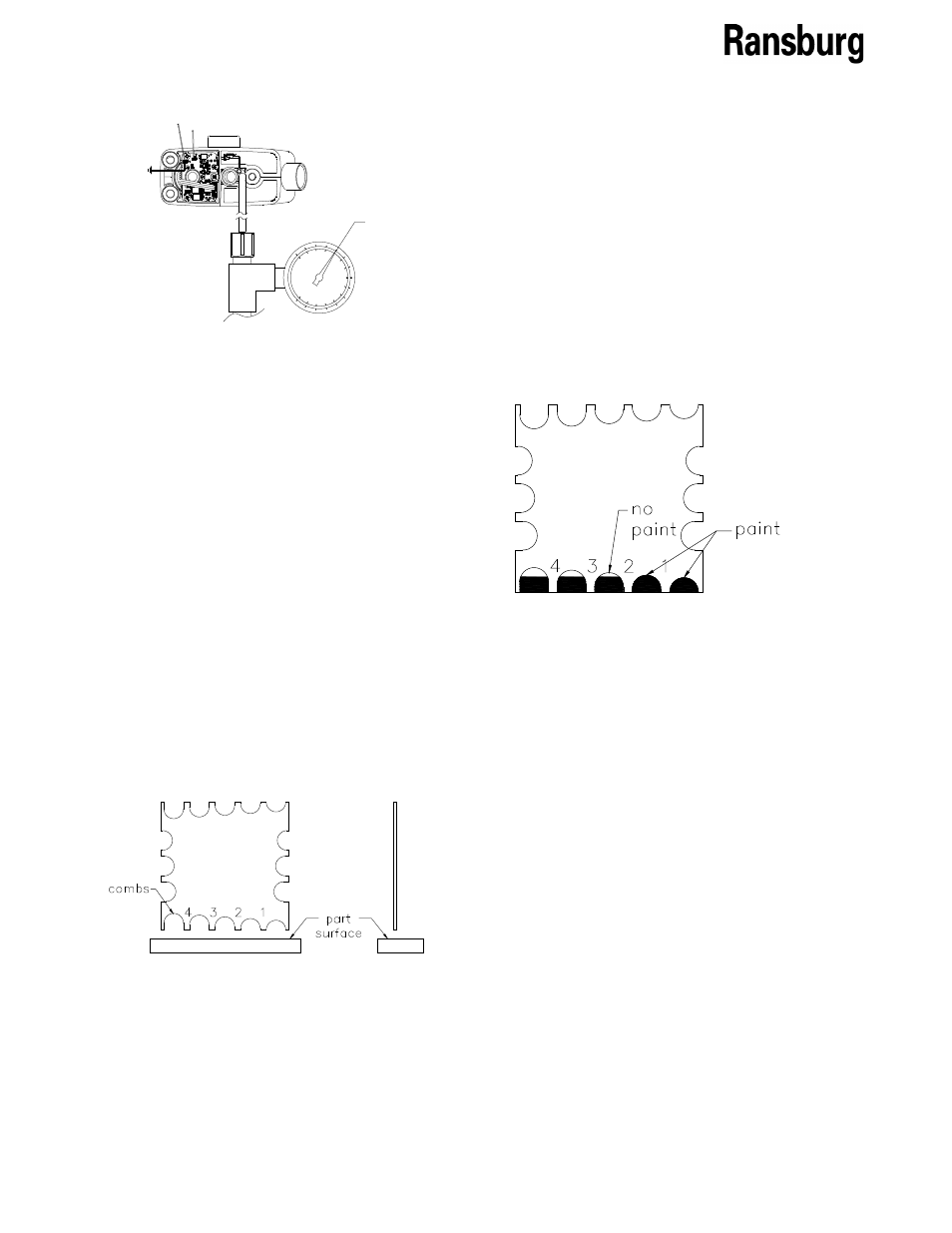

Figure 14: Paint Thickness Indicated By Presence/Lack of

Paint On Recessed Grooves

5. Drag the combs along the part surface,

keeping them perpendicular to the surface at

all times.

6. Lift the gauge off of the part.

7. Look at the combs. The thickness of the paint

is indicated by the lack of paint on the recessed

groove on the comb. For example: if there is

paint in the recess of the 2 mil groove and none

on the 3 mil groove, then the thickness of the

paint is between 2 and 3 mils

TEST POINT 1

TEST POINT 2

1.7 BAR

(25 PSI)

Figure 12: Set Pressure Gauge to 25 psi

Figure 13: Place Wet Film Gauge Perpendicular to Part

Surface

Item 7: Wet Film Gauge

Item 7 is a wet film gauge. The wet film gauge

will allow you to measure the thickness of paint

on the surface of a part before the paint dries.

To measure the thickness of the wet paint on a

surface, follow these steps:

1. Spray paint onto the surface of the object.

2. Lay the object flat.

3. Select the side of the gauge with the thickness

you desire located on it.

4. Place the combs of the gauge on the part,

keeping the combs perpendicular to the part

surface.

79651-00 Installation and Setup Kit
