SI-08-06.1

The 79870 Test and Maintenance Kit allows the

user to determine the inlet pressure at the base

(handle) of the Vector Solo 79900 series hand-held

applicators. The 79870 Test and Maintenance Kit

also allows the user to test the 79835 Power Module

Assembly on the Vector Solo 79900 applicator.

The procedure to test the inlet pressure at the

base (handle) of the Vector Solo applicator is as

follows (see Figures 6 and 7):

1. Connect the left-hand fitting of the 79727 Air

Hose to the left-hand male fitting [4] of the 79870

Test and Maintenance Kit.

2. Connect the right-hand fitting of the 6" air

hose assembly [3] to the brass tee fitting [1].

3. Connect the left-hand fitting of the 6" air

2.75 BAR

(40 PSI)

1

3

5

4

2

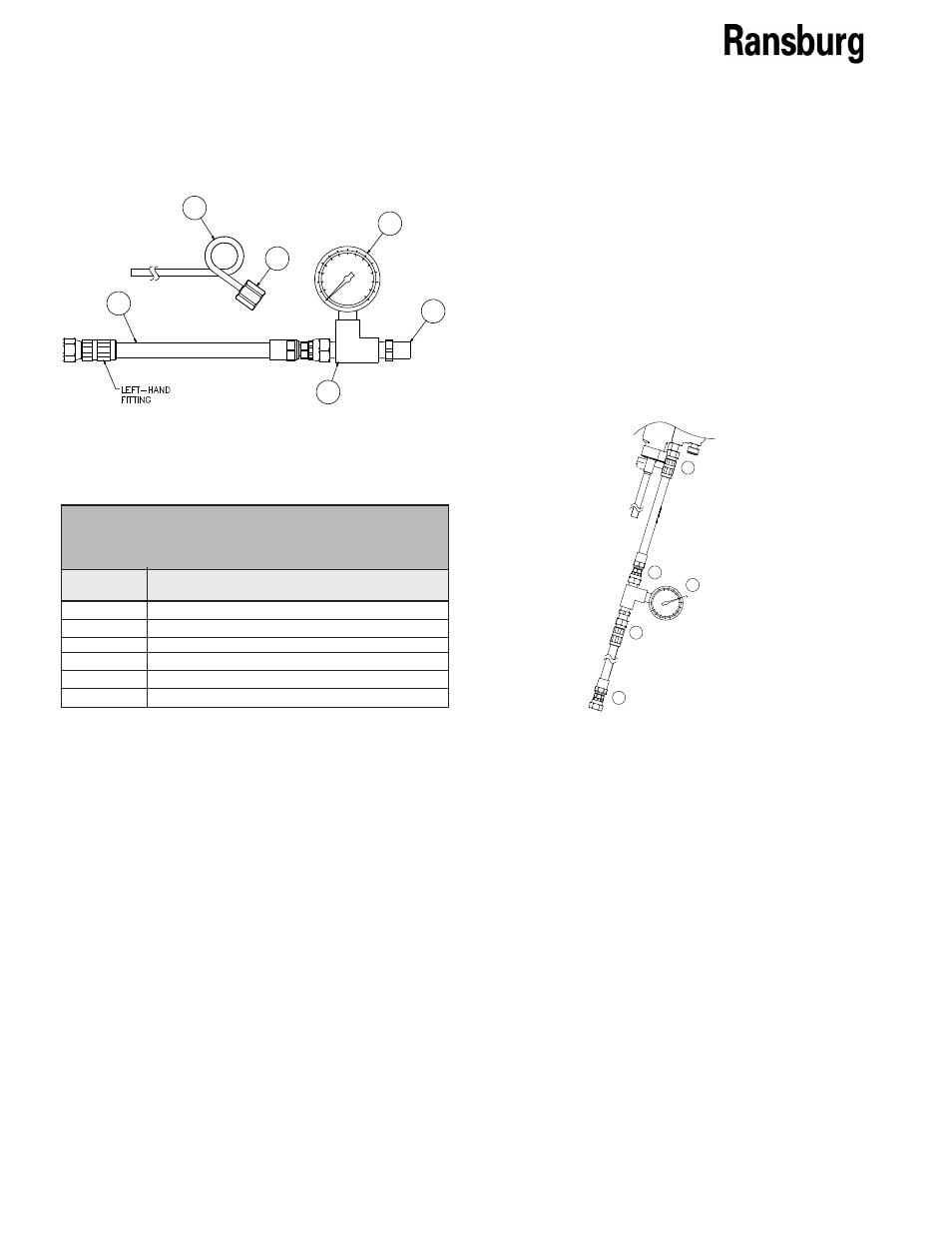

Figure 7: Testing the Pressure at the Base (Handle) of the

Applicator

The parts contained in the 79870-00 Test and

Maintenance Kit includes:

1

2

3

4

5

6

79870 TEST AND MAINTENANCE KIT

Item #

Brass Tee Fitting

100 psi Pressure Gauge

6" Air Hose Assembly

Left Hand Male Fitting

Barb Fitting

Tubing

Description

Figure 6: 79870 Test and Maintenance

Kit Items

3

6

5

2

4

1

hose assembly [3] to the air inlet fitting on the

79900 Vecto Solo applicator.

4. Connect the user's 79727 Air Hose to inlet air.

5. Turn on main air. Trigger the applicator with

the kV switch on high (down position). Read the

pressure at the 100 psi pressure gauge [2] in

the 79870 Test and Maintenance Kit. This

pressure should be 40 psi with air flowing

(applicator triggered) for proper functioning of

the 79900 Vector Solo applicator.

79651-00 Installation and Setup Kit
