LS-90 Operation Guide
The LS-90 programmable communicating
thermostat operates via a high-quality, easy-
to-use touch screen. To program or adjust
your LS-90, simply touch your finger or the
stylus firmly to the screen. The screen will
automatically light up and you will hear a
“beep.” The screen will respond differently to
different types of touches, so you may want
to experiment with both your finger and with
the stylus, which is included with the LS-90,
to see what works best for you.
ENGLISH
pg16
pg17
pg17
Control
bar
Statement of use: 100% Compatible with all popular
residential HVAC systems; 24VAC single, two, three stage
conventional heating systems (gas/oil/electric), heat pumps
(single and two stage compression) and single or two stage
auxilliary heat (electric or fossil), zoned forced air and
zoned hot water (2 or 3 wire), millivolt systems (with 24VAC
adapter), one or two stage cooling, and hybrid systems.
H
Menu
button
+/- Temp
adjust
buttons
Power
Button
controls the
LS-90 Mode
Home
button
HVAC
Status
indicator
SAVE
ENERGY
HVAC
STATUS MENU
NORMAL
$0.05 KW
Power Status Normal $.05/kW
h
H
EAT
12:30pm
5/25 WED
TARGET
77 o
TEMP
HUMI D
23
%
FAN
o
F
Wire
Reset
button
Save
Energy
button
Power Grid
status
indicators

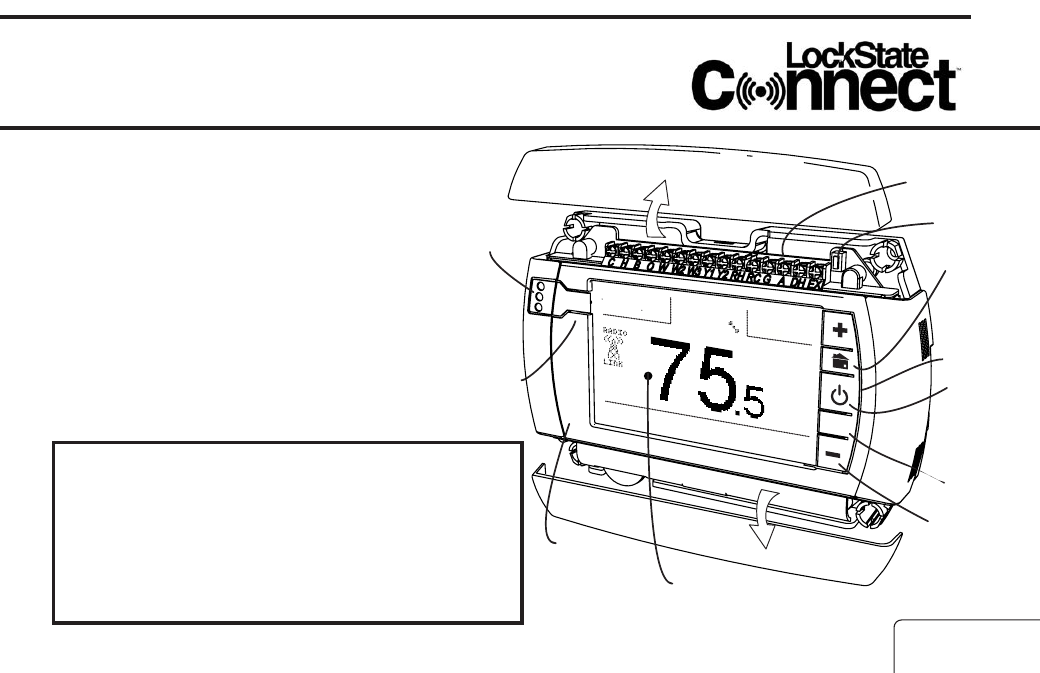

top cover
bottom
cover
Touch screen
terminals
