LOCKSTATE RL4000/LS-1500 - Manual

Front Handle & Key Installation
1. Ensure that the key override slot
is in the horrizontal position.
2. Slide the key cylinder into the
back of the handle.
3. Insert the key into the key cylin-
der from the front of the handle.
4. Slide the handle onto the drive
shaft until it hits the catch pins.
5. Push the key in as far as it will go
and then turn 90 degrees clockwise.
6. Firmly press the lever until it
snaps over the catch pins. Turn the
key back to the left and remove.
Step 5
Fit the front lock housing onto the
front of the door. Feed the power plug
through the 2
1/8
” boring hole.
Step 6
Place the inside gasket on the inside
plate. Feed power plug through and
secure to door & front lock with screw.
Step 7
Hold the inside lock housing up to
the inside of door. Plug the front lock
power cable into the connector.
Step 8
Place inside lock over
mounting place &
secure with screws.
Step 9
Insert 4 AA batteries
into the battery
compartment.
Step 10
Secure the inside lock housing
battery cover with two screws.
Step 11
Slide the inside lever into place. Press
firmly until handle snaps over catch pins.

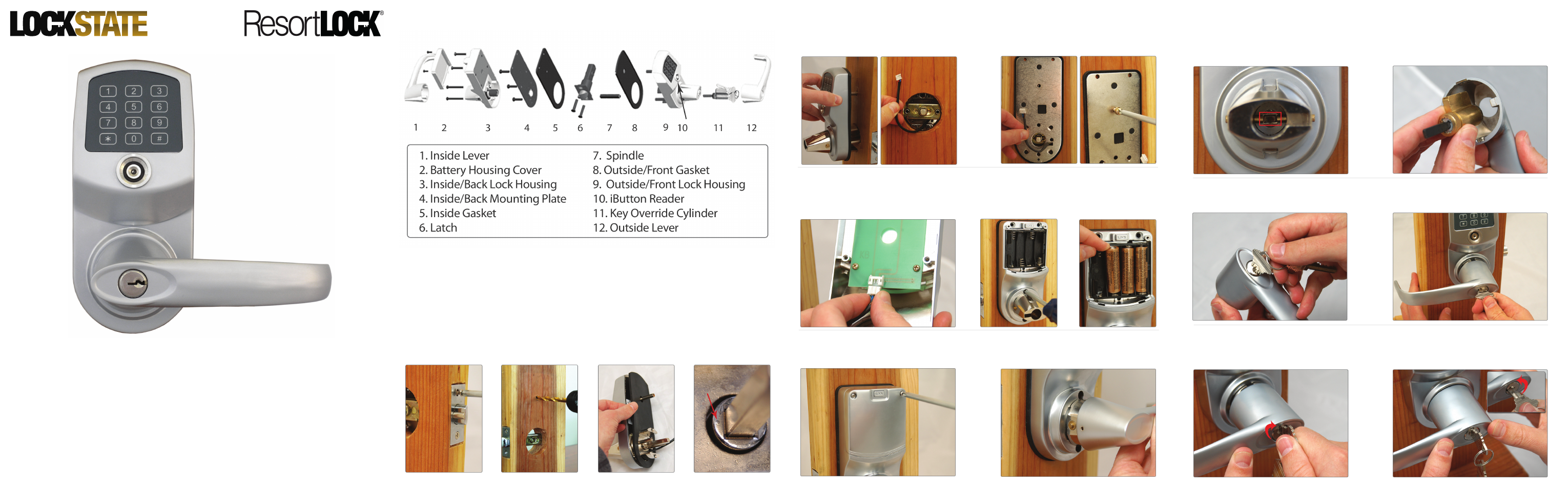

Major Lock Parts List
Installation Instructions
Step 1
Insert latch into
the door latch
hole. Secure the
latch with two
screws.
Step 2
Drill the 3/8” upper
support hole into
the door 3 5/16 ”
above the center
of boring hole.
Step 4
Insert the square
spindle into the
center hub.
Ensure dot is
pointed left.
Step 3
Place the front
side rubber gasket
(if required) on the
back of the front
lock housing.
Installation & User
Manual
For use with ResortLock® RL4000 and LockState® LS-1500
®
