General Tools and Instruments MMD7003 - Manual (Page 3)

OPERATING HUMIDITY: 80% Relative Humidity maximum
MEMORY RECALL: Maximum & Minimum readings can be saved and
viewed
SAMPLING TIME: Approx. 0.8 seconds
POWER SOURCE: “9V” battery
POWER CONSUMPTION: 16mA DC (approx.)
ACCESSORIES INCLUDED: Instruction Manual and 10 pcs. extra of
contact pins
OPTIONAL ACCESSORIES: Separate Probe, (Part #MP7003)
DIMENSIONS: 8.4" x 2.7" 1.2" (216.5 x 68.5 x 29.7mm)
WEIGHT: 8.8 oz. (251g)

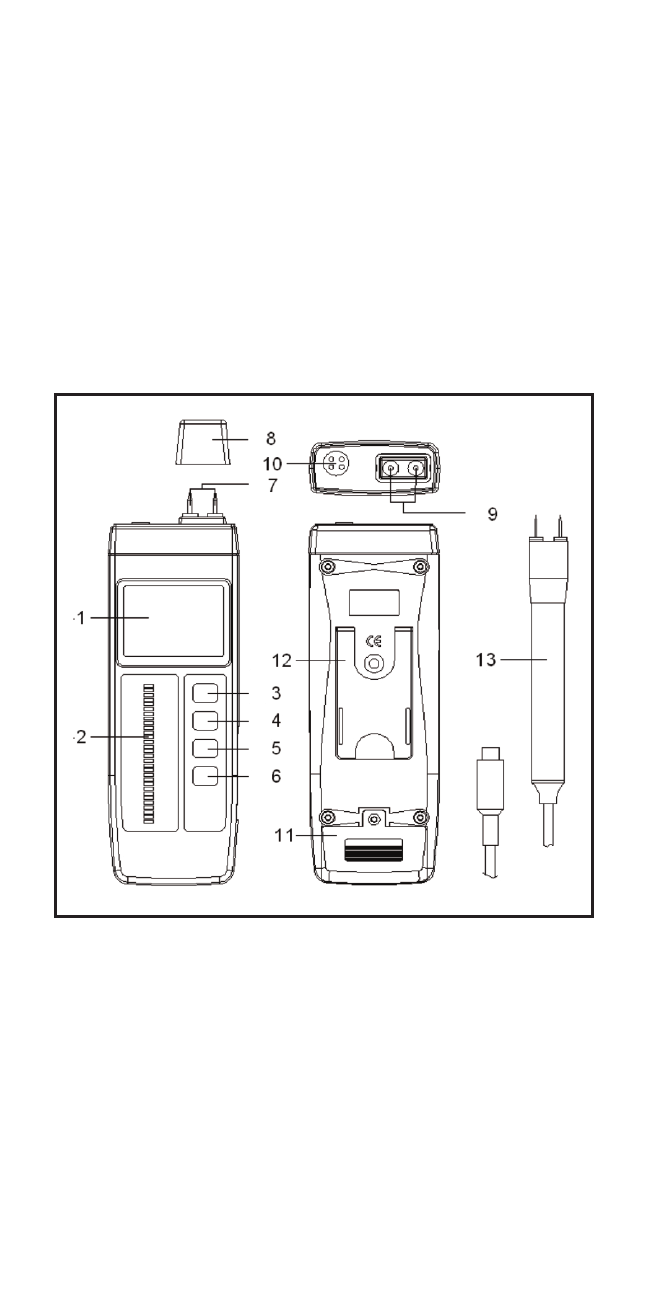

FRONT PANEL DESCRIPTION
1. Display
2. Red LED bar graph indicator
3. Power button
4. Hold button
5. REC (MAX/MIN) button
6. Material button
7. Test pins 8. Protection cover
9. Lock nut for test pin
10. Input socket for external
probe
11. Battery compartment/Cover
12. Stand
13. Optional separate probe
