General Tools and Instruments DOM5512SD User Manual

Page 5

background image

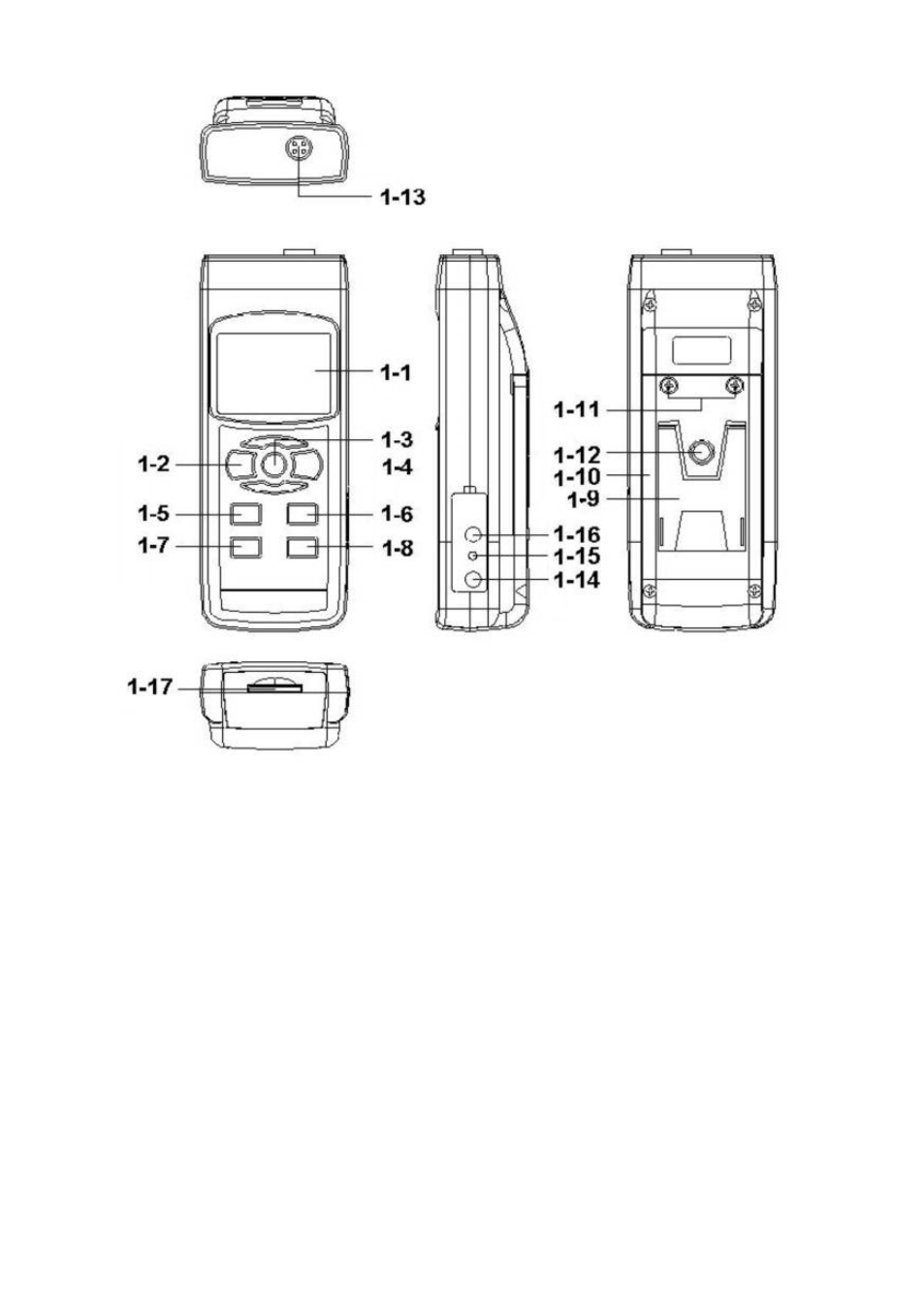

Fig. 1. The controls and indicators and other physical features of the DOM5512SD

5

1-1 Liquid-crystal display

1-2 POWER button

(also controls backlight)

1-3 HOLD/ESC button

1-4 REC/ENTER button

1-5 ▲ button

1-6 ▼ button

1-7 TIME button

1-8 LOGGER SET button

1-9 Kickstand

1-10 Battery compartment cover

1-11 Battery compartment cover

screws

1-12 Tripod attachment nut

1-13 Socket for DO probe

1-14 Socket for 9V AC/DC adapter

1-15 RESET button

1-16 RS-232 output jack

1-17 SD card socket

TOP

RIGHT

SIDE

BACK

BOTTOM

FRONT
