General Tools and Instruments DAF4207SD User Manual
Page 5

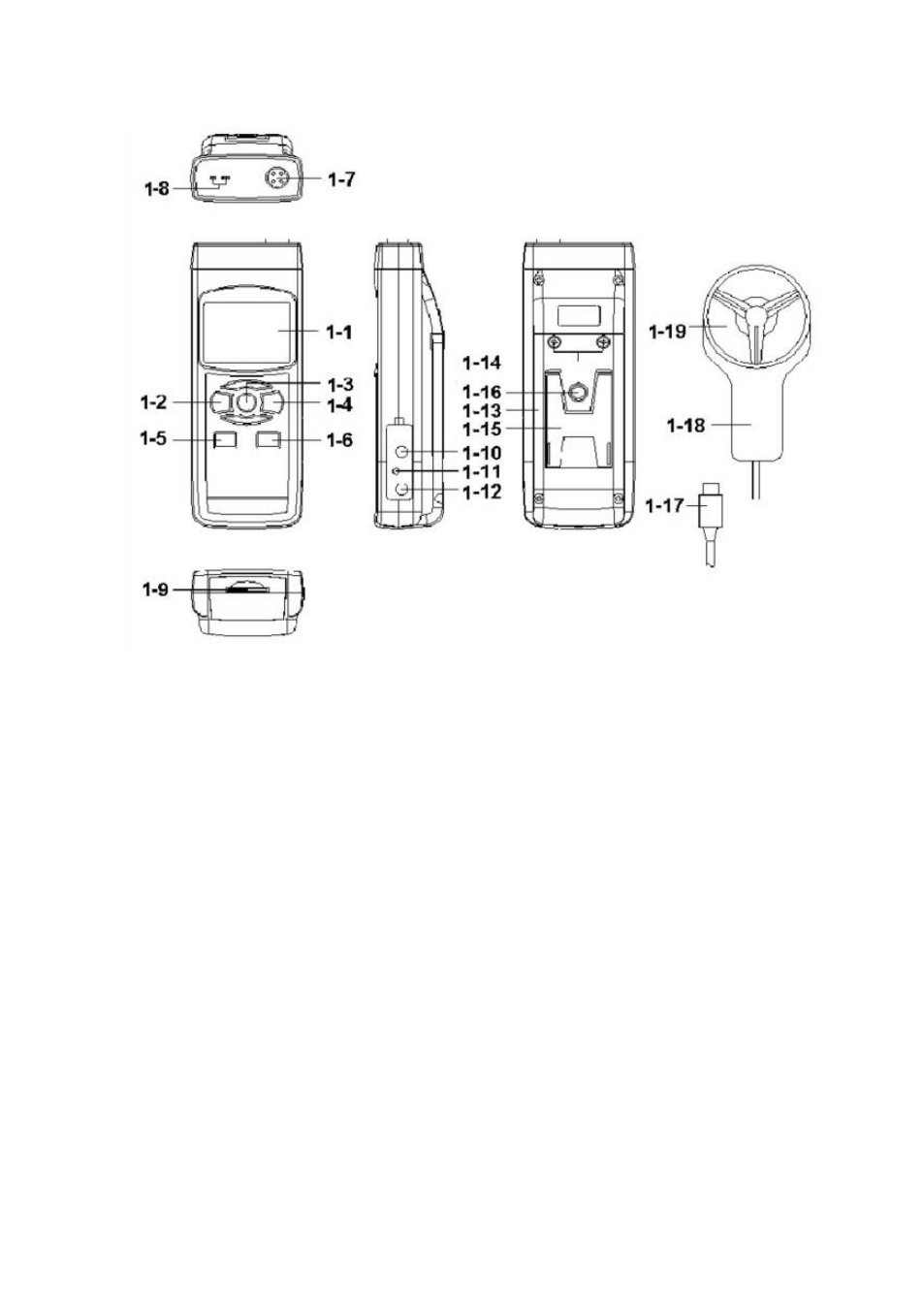

1. The DAF4207SD’s controls and indicators and other physical features
5
1-1 Liquid-crystal display
1-2 POWER/ESC button
1-3 FUNC./HOLD/NEXT button
1-4 REC/ENTER button
1-5 SET ▼ button
1-6 LOGGER ▲ button
1-7 Socket for combination air speed-
temperature probe
1-8 Socket for optional Type K or J
thermocouple
1-9 SD card socket
1-10 RS-232 output jack
1-11 RESET button
1-12 Socket for 9VDC AC adapter
1-13 Battery compartment cover
1-14 Battery compartment cover
screws
1-15 Kickstand
1-16 Tripod attachment nut
1-17 Probe plug
1-18 Probe handle
1-19 Probe head
TOP
RIGHT
SIDE
BACK
BOTTOM
FRONT
Fig. 1
