Finish Thompson KC3, 4, & 5 SERIES User Manual
Page 3

3
1
1
Impeller Housing with Thrust Ring
KC 3, 4, 5
NPT
A102865-1
A102865-3
1
1
Impeller Housing with Thrust Ring
KC3, 4, 5
BSP
A102865-2
A102865-4
2
1
Impeller Assemlby with Thrust Ring
and Carbon Bushing
KC3
N/A
A102861-1
A102861-3
2
1
Impeller Assembly with Thrust Ring
and PTFE Bushing
KC3
N/A
A102861-2
A102861-4
2
1
Impeller Assembly with Thrust Ring
and Carbon Bushing
KC4
N/A
A102861-5
A102861-7
2
1
Impeller Assembly with Thrust Ring
and PTFE Bushing
KC4
N/A
A102861-6
A102861-8
2
1
Impeller Assembly with Thrust Ring
and Carbon Bushing
KC5
N/A
A102861-9
A102861-11
2
1
Impeller Assembly with Thrust Ring
and PTFE Bushing
KC5
N/A
A102861-10
A102861-12
2A
1
Impeller Thrust Ring
KC3, 4, 5
N/A
M102141
M102141-1
3
1
Barrier Assembly with Spindle
and Thrust Washer
KC3, 4, 5
N/A
A102858-1
A102858-2
4
1
Drive Magnet Assembly
KC3
N/A
A102869-1
A102869-1
4
1
Drive Magnet Assembly
KC4, 5
N/A
A102869-2
A102869-2
4A
2
Set Screw
KC3, 4, 5
N/A
J100220
J100220
5
1
Housing O-ring -EPDM
KC3, 4, 5
N/A
J103571
J103571
5
1
Housing O-ring -Viton
KC3, 4, 5
N/A
J103572
J103572
6
8
Housing Screws
KC3, 4, 5
N/A
J101020
J101020
Item
Item
Item
Item
Item
Qty
Qty
Qty
Qty
Qty
Description
Description
Description
Description
Description
Pump
Pump
Pump
Pump
Pump
Thread
Thread
Thread
Thread
Thread
PP Part No.
PP Part No.
PP Part No.
PP Part No.
PP Part No.
PVDF Part No.
PVDF Part No.
PVDF Part No.
PVDF Part No.
PVDF Part No.

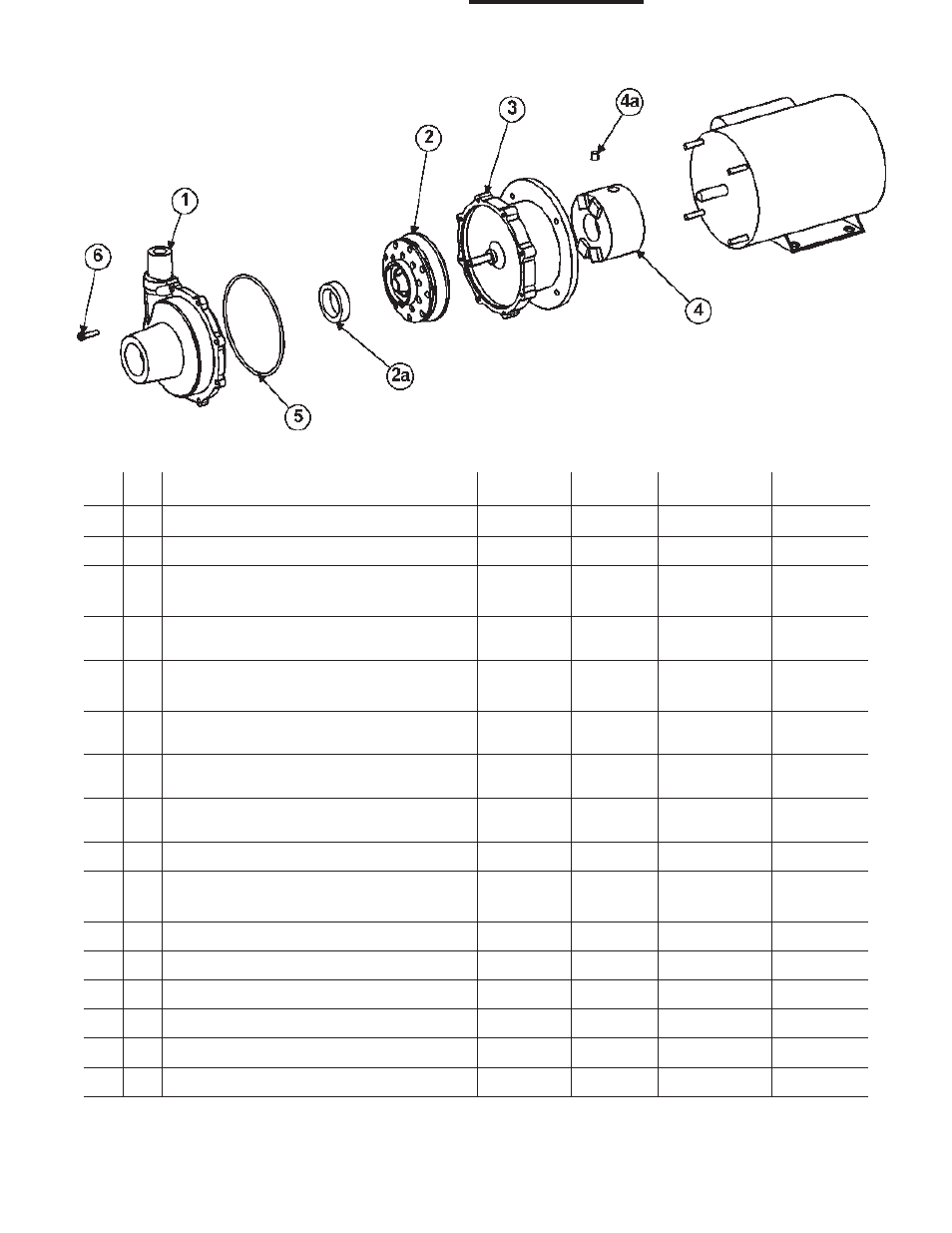

Figure 5
