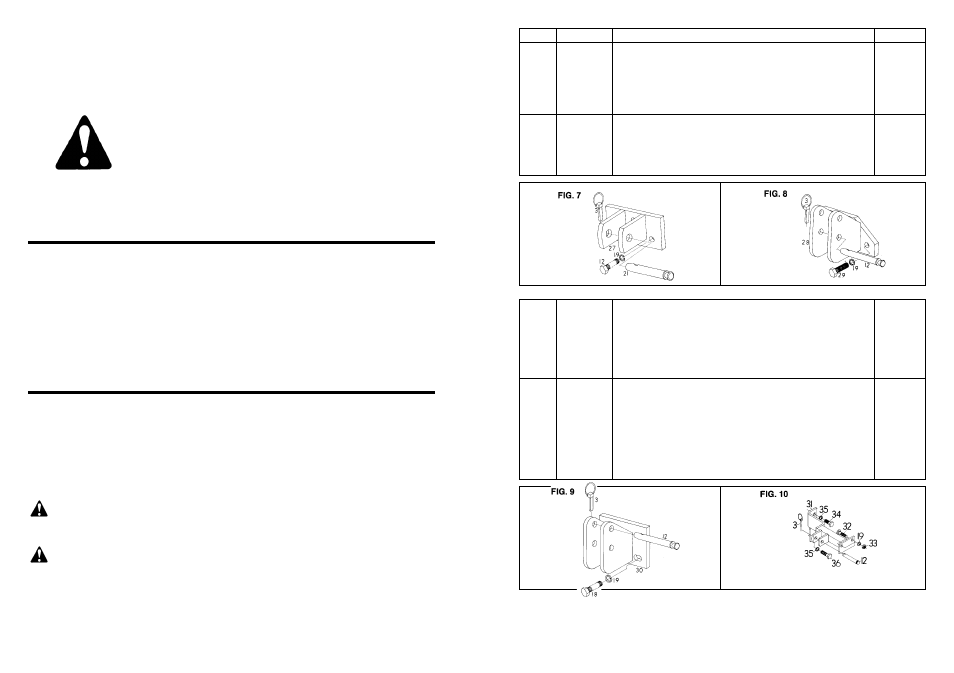

PARTS FOR HK-1126 & HK-1132 - FIG. 9
12 590002 Top Link Pin, Cat. I (AK-9) 1
18 2503106 5 / 8 ” - 11NC x 1 3 / 4 ” Hex Head Bolt 3
19 2502007 5 / 8 ” Spring Lock Washer 3
2 590076 Complete Cat. II Top Link Assembly (AK-600) (HK-1132 Only) See Fig. 1 1
30 860113 Top Link Bracket Assembly 1
2 590072 Complete Cat. I Top Link (HK-1126 Only) See Fig. 1 1
NS 590027 Top Link Bushing, Cat. I to II (AK-54) (HK-1132 Only) 2
PARTS FOR HK-1026 & HK-1032 - FIG. 10
31 864137 Top Link Bracket Weldment 1
2 590072 Top Link, Cat. I Complete - See Fig. 1 1
12 590002 Top Link Pin, Cat. I (AK-9) 1
32 2503195 Bolt, 5 / 8 ” - 11NC x 2 1 / 2 ” Carriage Head 2
19 2502007 Washer, 5 / 8 ” Spring Lock 2
33 2500013 Nut, 5 / 8 ” - 11NC Full Hex 2
34 2503002 Bolt, 3 / 4 ” - 10NC x 2” Hex Head 1
35 2502001 Washer, 3 / 4 ” Spring Lock 2
36 2503021 Bolt, 3 / 4 ” - 10NC x 2 1 / 2 ” Hex Head 1
10 1
To the Owner/Operator/Dealer
All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded opera-
tor who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this
implement to be used with all its safety equipment properly attached to minimize the chance of accidents.
BEFORE YOU START!!
Read the safety messages on the implement and shown in your manual.
Observe the rules of safety and common sense!
THIS SAFETY ALERT SYMBOL IDENTIFIES IMPORTANT
SAFETY WARNING MESSAGES. CAREFULLY READ EACH
WARNING MESSAGE THAT FOLLOWS. FAILURE TO
UNDERSTAND AND OBEY A SAFETY WARNING, OR
RECOGNIZE A SAFETY HAZARD, COULD RESULT IN AN
INJURY OR DEATH TO YOU OR OTHERS AROUND YOU.
THE OPERATOR IS ULTIMATELY RESPONSIBLE FOR THE
SAFETY OF HIMSELF, AS WELL AS OTHERS, IN THE
OPERATING AREA OF THE TRACTOR AND EQUIPMENT.
UNDERSTAND SIGNAL WORDS
Note the use of the signal words DANGER, WARNING
and CAUTION with the safety messages. The
appropriate signal word for each has been selected
using the following guidelines:
DANGER: Indicates an imminently hazardous situation
that, if not avoided, will result in death or serious injury.
This signal word is to be limited to the most extreme
situations typically for machine components which, for
functional purposes, cannot be guarded.
WARNING: Indicates a potentially hazardous sit-
uation that, if not avoided, could result in death
or serious injury, and includes hazards that are
exposed when guards are removed. It may also
be used to alert against unsafe practices.
CAUTION: Indicates a potentially hazardous sit-
uation that, if not avoided, may result in minor or
moderate injury. It may also be used to alert
against unsafe practices.
THIS SYMBOL MEANS
– ATTENTION!
– BECOME ALERT!
– YOUR SAFETY IS INVOLVED!
Important Safety Information!
Working with unfamiliar equipment can lead to careless injuries. Read this manual, and the manual for your tractor,
before assembly or operating, to acquaint yourself with the machine. It is the equipment owner’s responsibility, if this
equipment is used by any person other than yourself, is loaned or rented, to make certain that the operator, prior to
operating:
1. Reads and understands the operator’s manuals.
2. Is instructed in safe and proper use.
The use of this equipment is subject to certain hazards which cannot be protected against by mechanical
means or product design. All operators of this equipment must read and understand this entire manual, paying
particular attention to safety and operating instructions, prior to using. If there is something in this manual you
do not understand, ask your supervisor, or your dealer, to explain it to you.
Most accidents occur because of neglect or carelessness. Keep all helpers and bystanders twenty-five feet (25’)
from operating equipment. Only properly trained people should operate this tractor and attached implement. It
is recommended the tractor be equipped with a Rollover Protection System (ROPS) and a seat belt that is used.
Always stop the tractor, set brake, shut off the tractor engine, remove the tractor key, and lower implement to
the ground before dismounting tractor. Never leave equipment unattended with the tractor running.
REF. NO. PART NO. DESCRIPTION NO. REQ’D.
PARTS FOR HK-726 & HK-732 - FIG. 7
19 2502007 5 / 8 ” Spring Lock Washer 3
2 590076 Complete Cat. II Top Link Assembly (AK-600) See Fig. 1 1
21 590028 Top Link Pin, Cat. II (AK-56A) 1
26 2503048 5 / 8 ” - 11NC x 2” Hex Head Bolt 3
27 860701 Top Link Bracket Assembly 1
NS 590027 Top Link Bushing, Cat. I to II (AK-54) 1
PARTS FOR HK-826 - FIG. 8
12 590002 Top Link Pin, Cat. I (AK-9) 1
19 2502007 5 / 8 ” Spring Lock Washer 3
28 860801 Top Link Bracket Assembly 1
29 2503047 5 / 8 ” - 11NC x 1 1 / 2 ” Hex Head Bolt 3
2 590072 Complete Cat. I Top Link - See Fig. 1 1
