4 11
S A F E T Y I N S T R U C T I O N S (continued)
S A F E T Y S I G N S
This SAFETY SIGN is
located on the frame of
your rear blade.
Obey ALL Safety
Warnings.
NOTE:
If Safety Sign is missing
or damaged, replace
immediately.
Keep alert and watch the front as well as the rear when working with the implement.
When maneuvering close to buildings or passing through narrow areas, be sure to allow sufficient clearance
for the implement.
Do not operate close to ditches or creeks. Slow down when operating over rough ground.
Always be sure the implement is in the fully raised position when in transport.
When adjusting the angle of the moldboard assembly, be sure that your feet are never under the rear blade.
Use extreme caution when backfilling deep holes or trenches.
Be careful to avoid catching the rear blade on stumps or other immovable objects.
Use care when working on slopes.
Avoid excessive speed during operation.
Make adjustments only when the implement is attached to the tractor.
When using the rear blade in a reverse position, use extra care. Do not ram rear blade into piles of dirt.
Tractor lift arms and the rear blade are not built to take high impact loads in this position. Ramming backwards
can also dislodge operator from seat and/or tractor controls, resulting in possible serious injury or death.
Always ease the tractor into the load. It may be necessary to reposition and take less “bite” on the material to
move it safely.
Watch for and avoid hidden obstructions, i.e., buried pipes, rocks, concrete piers, uneven concrete slabs,
stumps, etc., when operating.

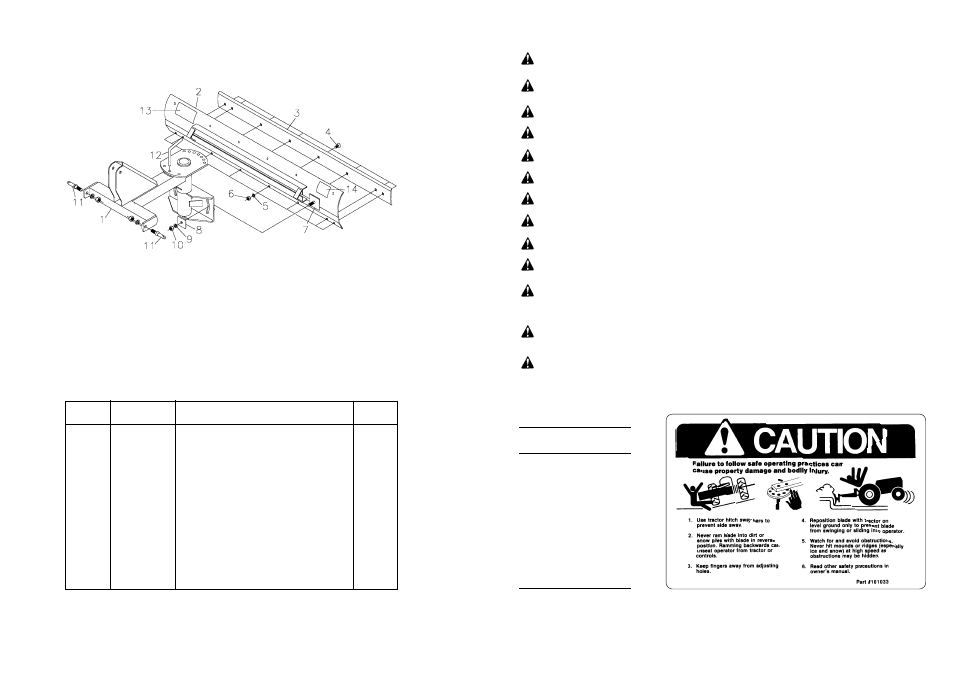

REF. PART NO.
NO. NO. DESCRIPTION REQ.
1 346801 Mount Frame 1
2 346807 Moldboard Assembly 1
3 350405 Cutting Edge 1
4 2503045 Plow Bolt 5 / 8 ” – 11NC x 1 1 / 2 ” 8
5 2502007 Lockwasher 5 / 8 ” 8
6 2500013 Nut 5 / 8 ” – 11NC Full Hex 8
7 346810 Tilt Adjustment Bolt 2
8 346812 Tie Plate 2
9 2502001 Lockwasher 3 / 4 ” 2
10 2500002 Nut 3 / 4 ” – 10NC Full Hex 2
11 590108 Lift Pin (AK-578) 2
12 350030 Adjustment Pin 1
13 101033 Decal – Caution, Safe Operating Practices 1
14 101054 Decal – Warranty Notice 1
UB-650-T
UTILITY BLADE
MODEL NO.
UB-650-T
SHOWN
