Reassembling the lcd module to main unit – Acer 5600 User Manual
Page 87
79
Chapter 3
2.
Secure the ODD module with one screw.

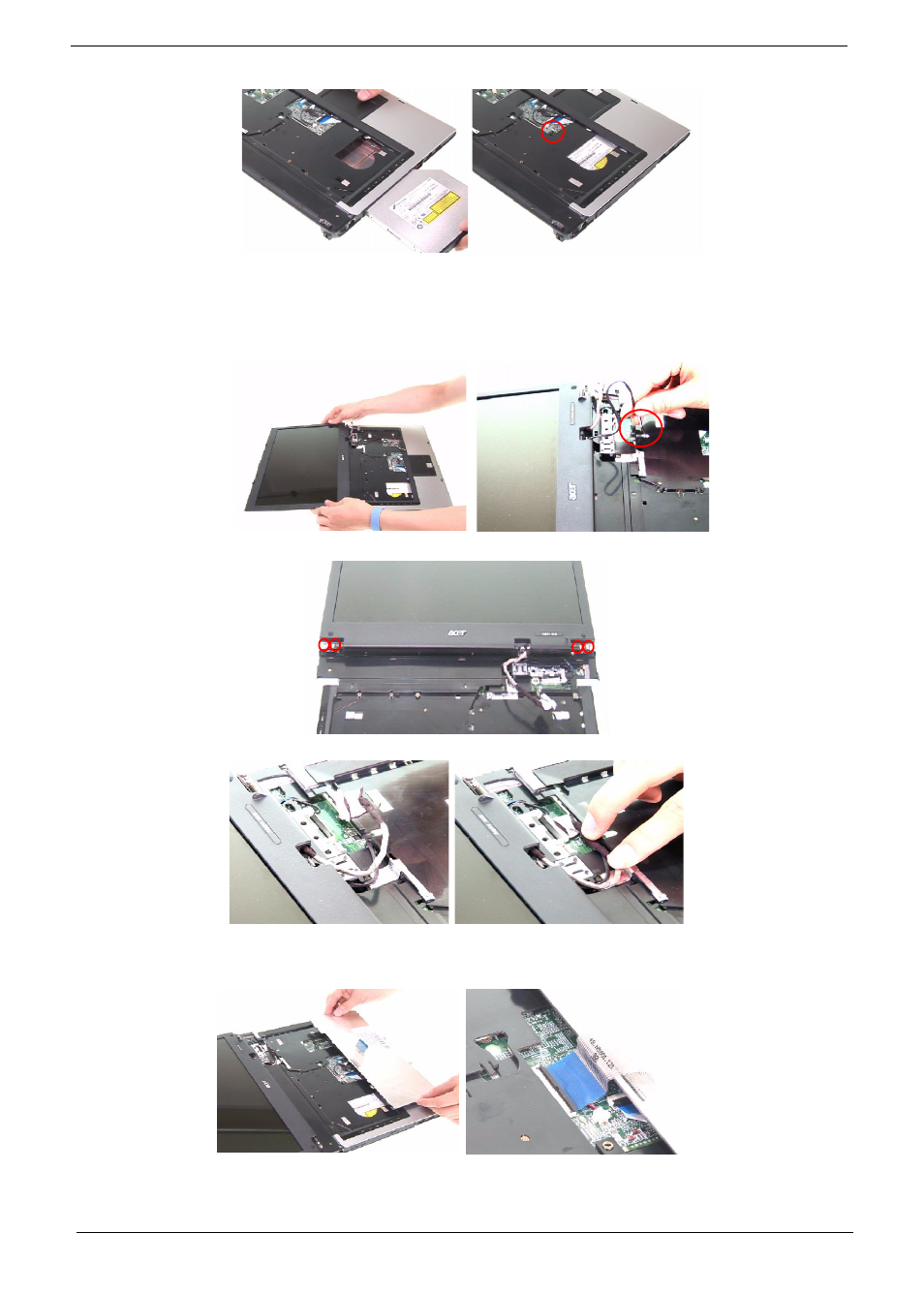

Reassembling the LCD Module to Main Unit
1.
Place the LCD module back to the main unit.
2.
Put the antenna through the hole.
3.
Secure the LCD module with two screws on left and right hinges.
4.
Connect the LCD cable to the mainboard.
5.
Place the keyboard back to the main unit.
6.
Connect the keyboard FFC to the mainboard and latch it well.
7.
Turn the keyboard over.
