Acer 5600 User Manual
Page 85
77
Chapter 3

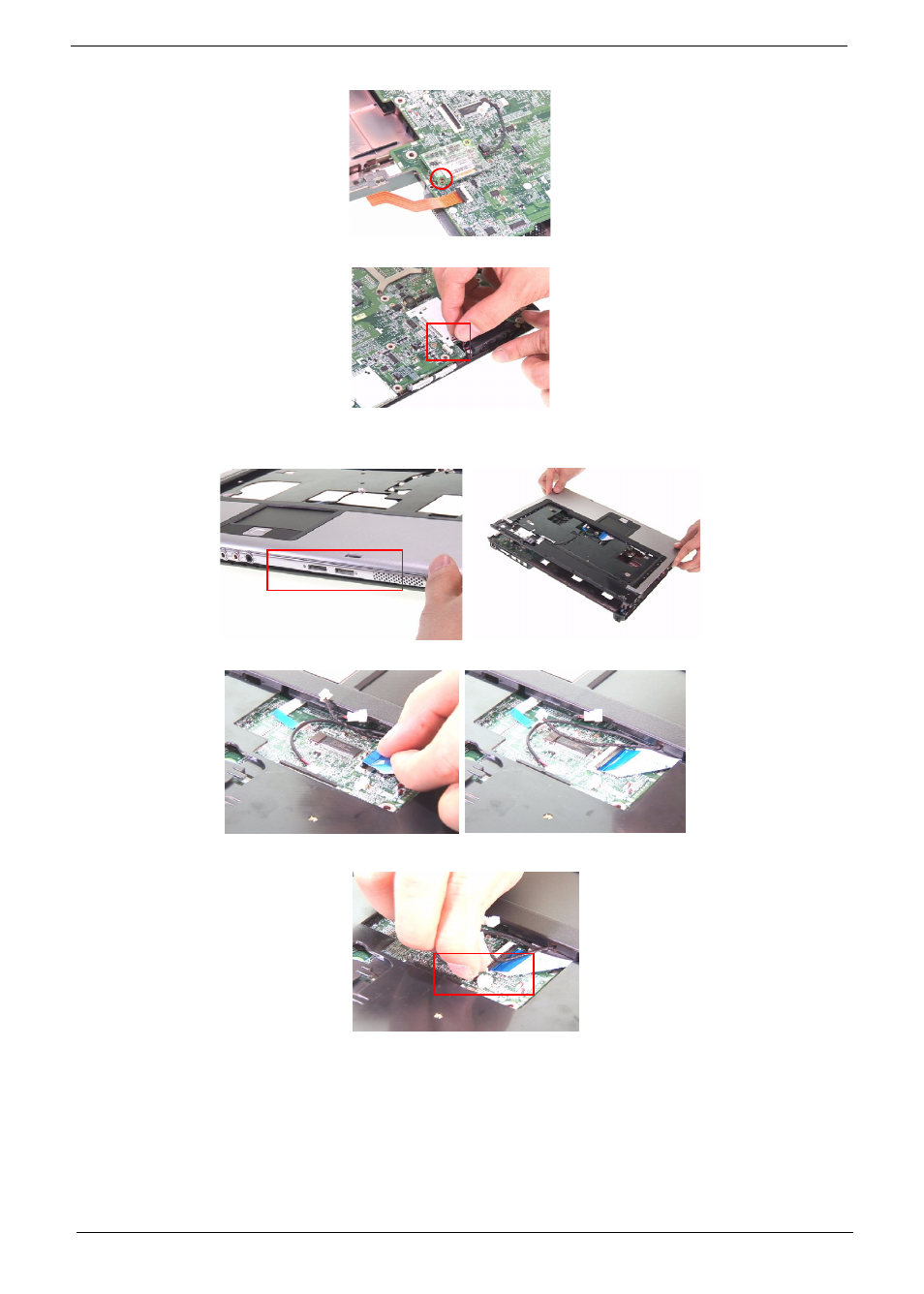

9.
Secure the MDC board with one screw.
10. Connect the speaker cable to the mainboard.
11. Aim the location of Bluetooth and wireless launch button.
12. Place the upper case back to the lower case.
13. Connect the touchpad board FFC to the mainboard and latch it well.
14. Connect the MIC wire cable to the mainboard.
