Acer 5600 User Manual
Page 77
70
Chapter 3
5.

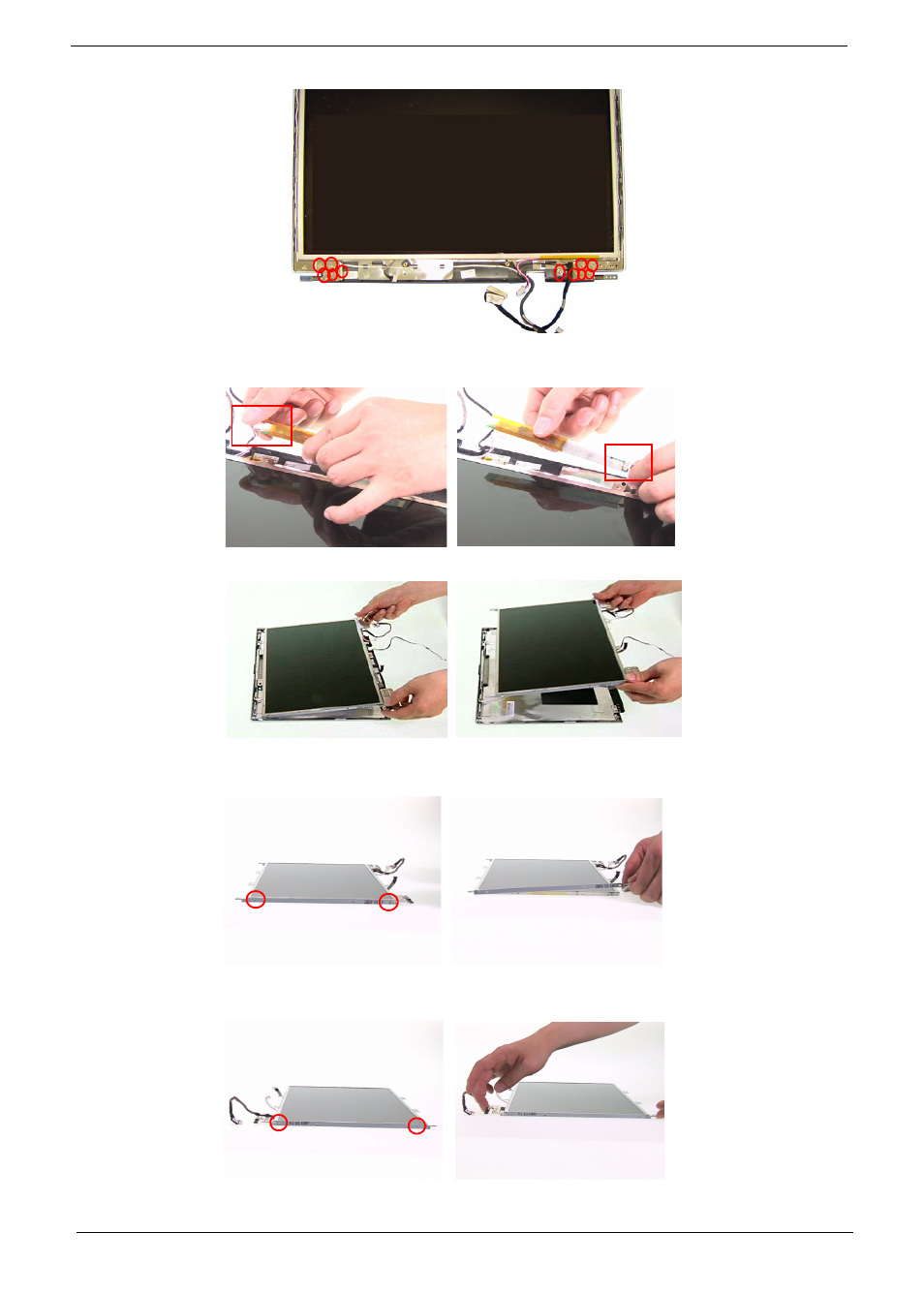

For LCD with CCD, remove the 11 screws securing the LCD panel.
6.
Lift up the inverter board.
7.
DIsconnect the inverter cables from the inverter board and remove the inverter board.
8.
Remove the LCD panel from the LCD cover.
9.
Remove the two screws securing the left LCD brackets.
10. Remove the left LCD bracket from the LCD panel.
11. Remove the two screws securing the right LCD bracket.
12. Remove the right LCD bracket from the LCD panel.
13. Remove the tape on the LCD cable.
