Chapter 1 3

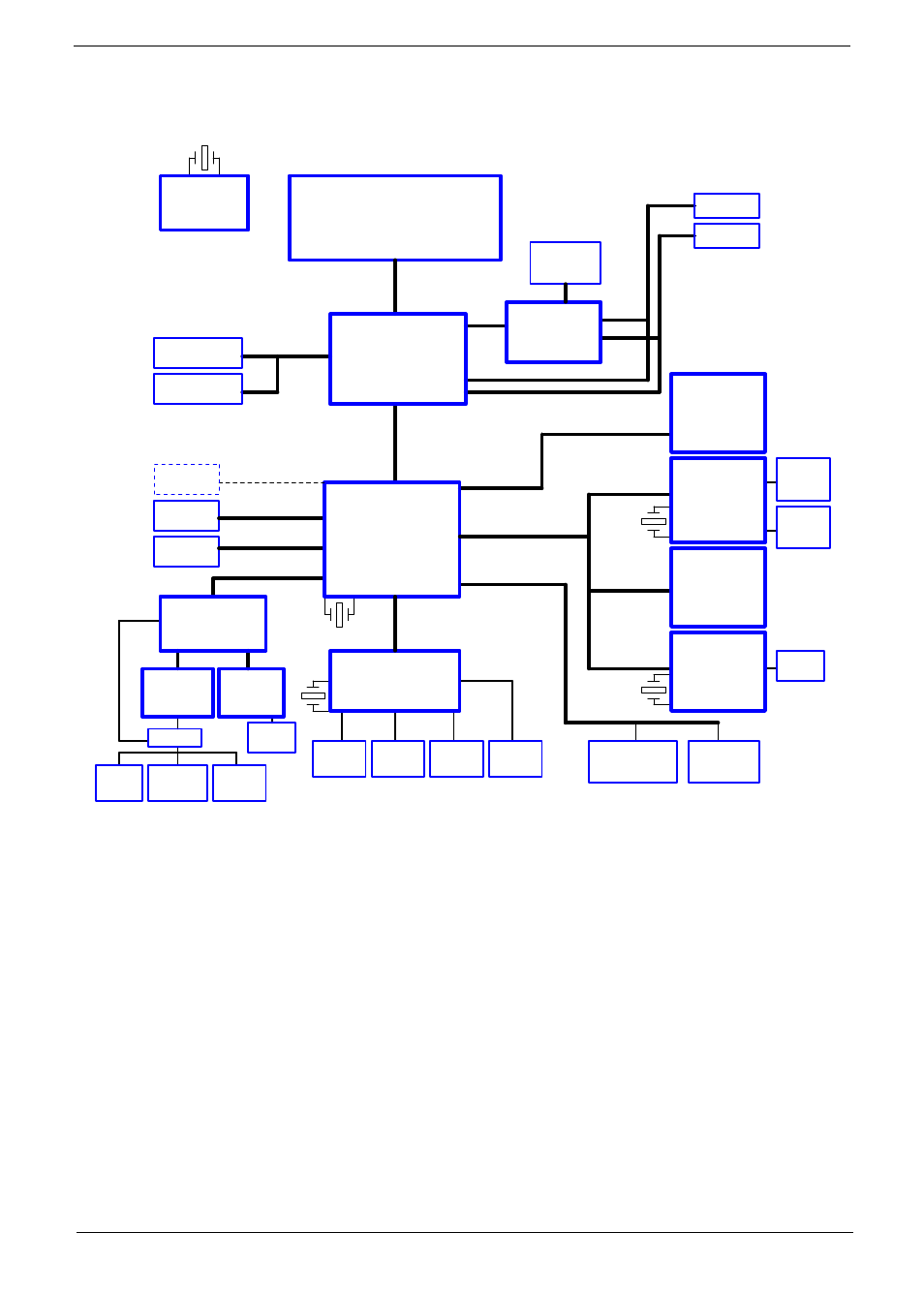

Block Diagram
DDR-II
ATA 66/100
HD Audio
AUDIO CODEC
DDR-II SODIMM1
DDR-II SODIMM2
IDE-ODD
PATA HDD
ATA 66/100
RJ11
Page: 28
Page: 12
Page:2, 3
Page: 5, 6 , 7, 8, 9, 10
Page: 13,14,15,16
Page:4
DMI I/F
Page: 30
Page: 31
Touchpad
KBC
NS
PC97551/541V
Keyboard
PCI BUS 33MHZ
RJ45
REALTEK
RTL8100CL
USB 2.0
Page: 26
MINI-PCI
Wireless LAN
Realtek
Page: 29
ALC883 (ALC260)
LPC 33MHZ
TI PCI7412
ZB2
REQ2# / GNT2#
REQ0#
GNT0#
AD19
AD25
INTC# , INTD#
INTE#
INTF#
INTG#
Page: 12
Page: 30
FLASH
Page: 31
FAN
CRT
Page: 22
RGB
LVDS
Page: 22
LVDS
TYPE II
SLOT
Bluetooth
USB
interface
Page:24
SYSTEM
USB PORT *3
MODEM AMP
MAX9755
AD16
REQ1#
GNT1#
INTB#
Page: 24
MINI-Card slot
Wireless LAN
PCI-E BUS
Page: 25
Page: 28
Page: 25
ATi
M52P
/M52PG
/M54P
PCIE
Page: 17,
18,19, 20
UMA(option)
Page: 23
Page: 23
Page: 24
Page: 26
Page: 25
Page:24
Page: 29
ICS954310BG
CLOCK GEN
Yonah/Merom
INTEL Mobile_479 CPU
HOST BUS 533/667 MHz
1466 FCBGA
CALISTOGA-GM
652 BGA
ICH7-M
Page: 23
SATA HDD
Page: 27
6 IN 1
Cardreader
X'TAL
14.318MHZ
X'TAL
32.768KHZ
X'TAL
32.768K
OSC
48MHZ
X'TAL
25M
VRAM x4
DDR2
16Mx16
32Mx16
Page: 29 Page: 29 Page: 29
SPEAKER LINE OUT MIC IN
Connector
